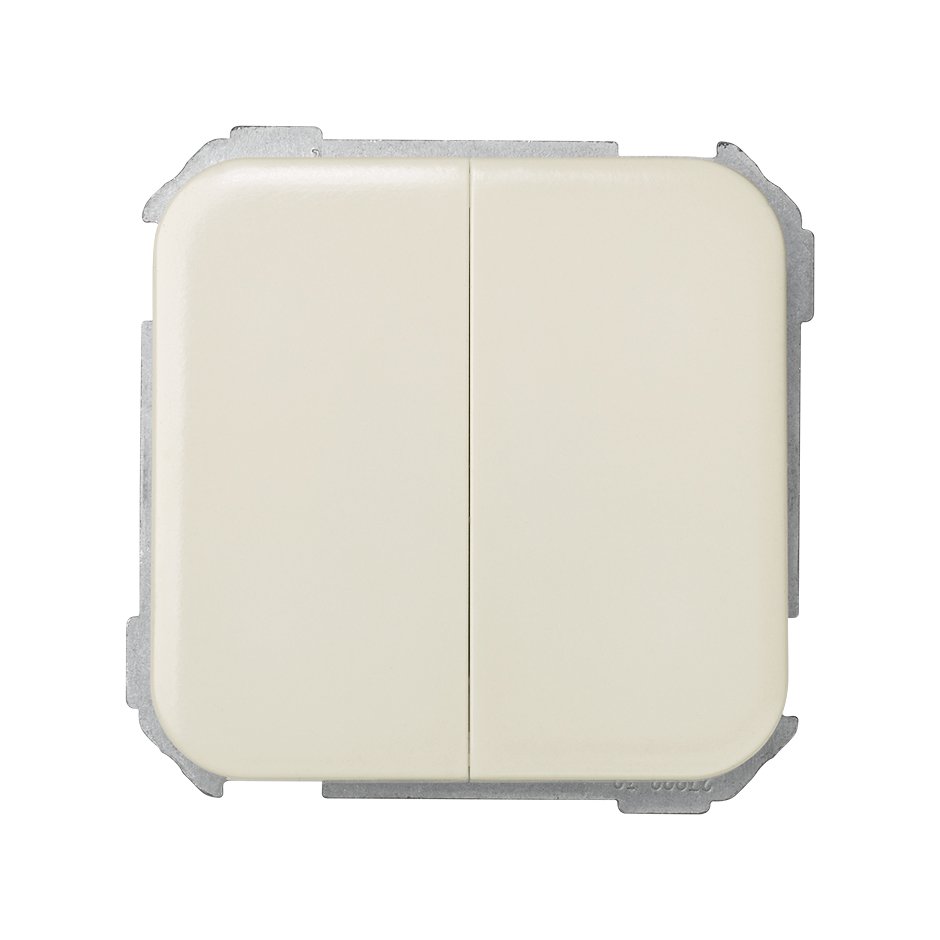

Set 2 switches 10AX 250V~ Simon 31 ivory front view

Set 2 switches 10AX 250V~ Simon 31 ivory front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31398-31

Set of 2 switches 10AX 250V~ with fast terminal connection system ivory Simon 31

Price/Unit
€19.65
Packaging quantity
10 Units

Available downloads

Data sheet

31398-31.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

With the group of 2 switches of Simon 31, you will obtain the maximum functionality and innovation in a compact design and simple lines that adapt to all types of spaces. Its size of 64 x 65 mm and its finishes in ivory when connected to the simplicity of its quick terminal connection, without the need for additional tools, make this product in the perfect balance between innovation and style.

Compatible with power supplies voltage of 250 Volts and 10 AX of intensity, this group of switches supports a wire cross section of 1.5 to 2.5 mm and stripping of 11 mm wire

It is made of metal materials with halogen-free insulation and thermoplastic trim, for greater protection of the room in case of fire, and allows to set reach maximum temperatures of -25 to 50 ºC.

For greater versatility of the product, Simon 31 offers 5 different finishes, but it is recommended to combine frame and rockers of the same colour.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Double

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product net weight

    0.083 KGM

  • Product gross weight

    0.083 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.83 KGM

  • Packaging gross weight

    0.83 KGM

  • Packaging EAN

    8421053006870
