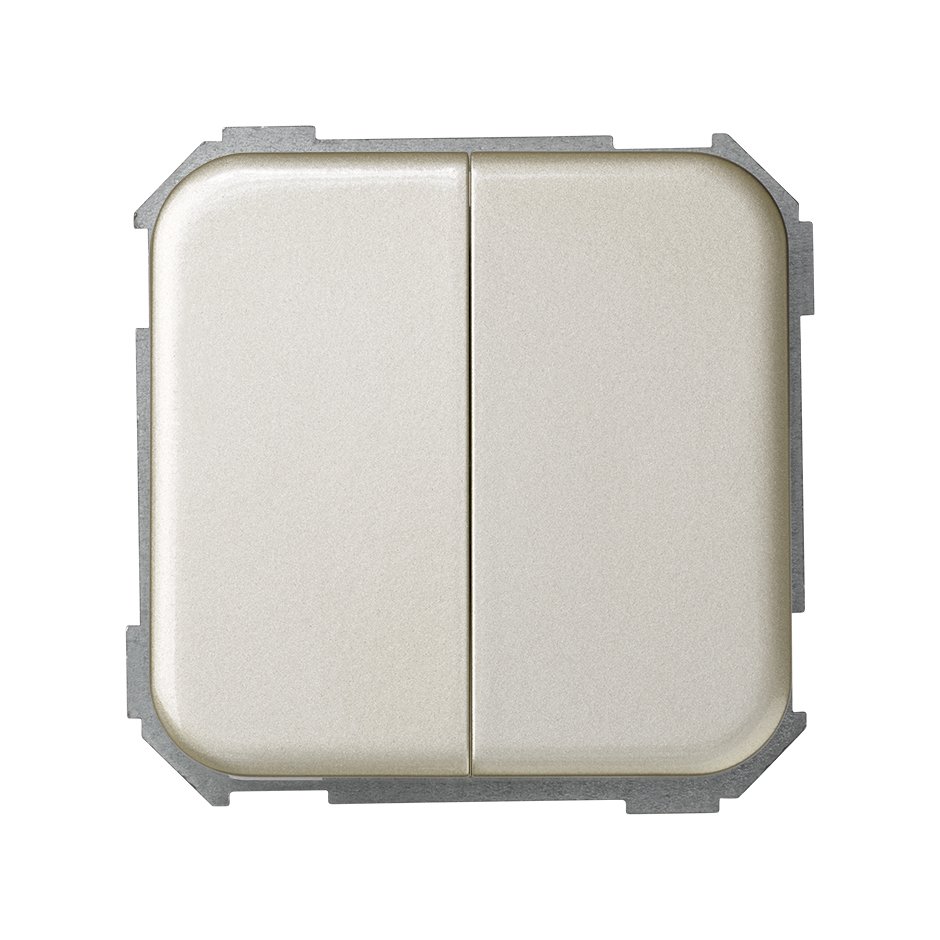

Set 2 push buttons blinds 10A 250V~ Simon 31 champagne front view

Set 2 push buttons blinds 10A 250V~ Simon 31 champagne front view

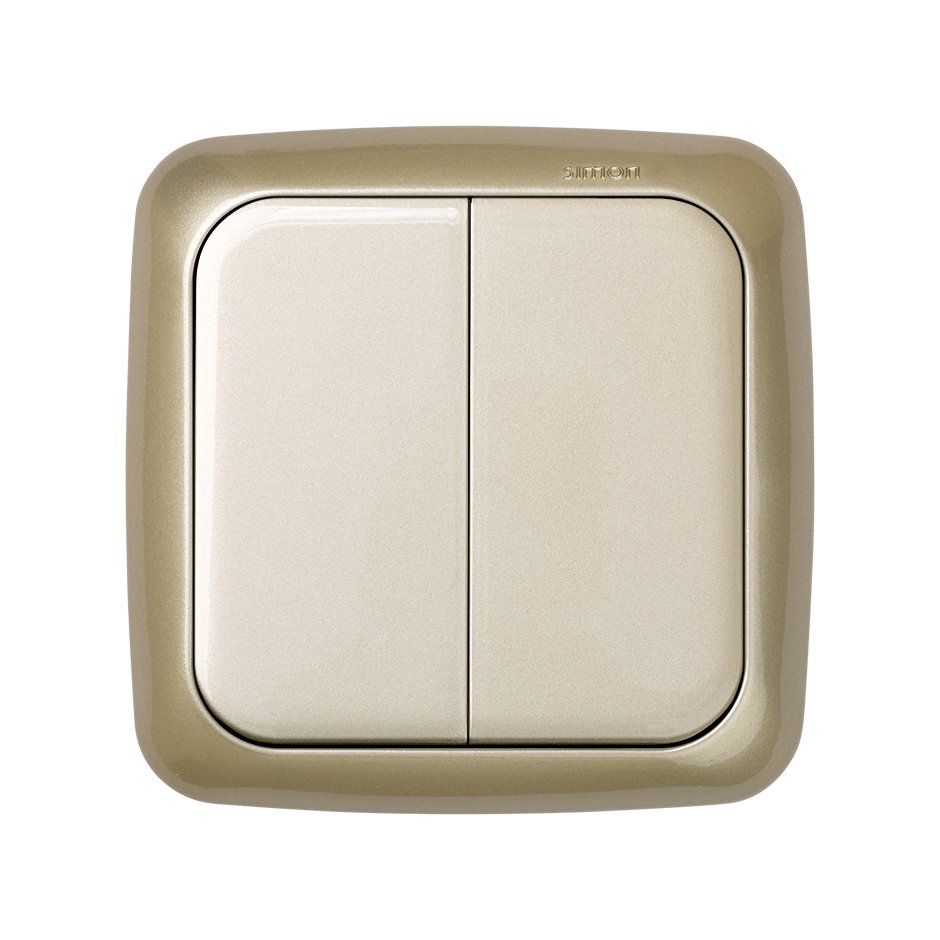

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31396-34

Set of 2 push buttons 10A 250V~ (2 inputs+2 outputs) mech.blinds without latching sys. with fast terminal connection champagne Simon 31

Price/Unit
€19.69
Discontinued
Packaging quantity
10 Units

Available downloads

Data sheet

31396-34.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

Simon 31, this successful series, it adapts to different environments thanks to its range of designs both classic (in champagne colour, metallised, ideal for environments rustic or classic) as the most modern and modern matt aluminium (colour, ideal for environments curve and also for offices that require a modern design).

To this collection (in its aspect more classic) belongs this group of 2 push buttons (10 Amps and 250 Volt voltage. It has 2 inputs and 2 outputs, for roller shutter mechanisms without latching system (requires control device) and with quick terminal connection, champagne finish, a design always stylish and that is perfect with classic environments, but also conjugate with the most modern.

With 1 element and 2 modules. Necessary stripping of wire to 11 millimetres, being the wire cross-section of 1.5 to 2.5 millimetres. Its measures are 64x65 millimetres.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Mechanism with no latching. Requires control device.

  • Finish

    Champagne

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of latching

    Non-latching

  • Type of mechanism

    Pivoting

  • Version

    Double

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.096 KGM

  • Product gross weight

    0.096 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.96 KGM

  • Packaging EAN

    8421053052082
