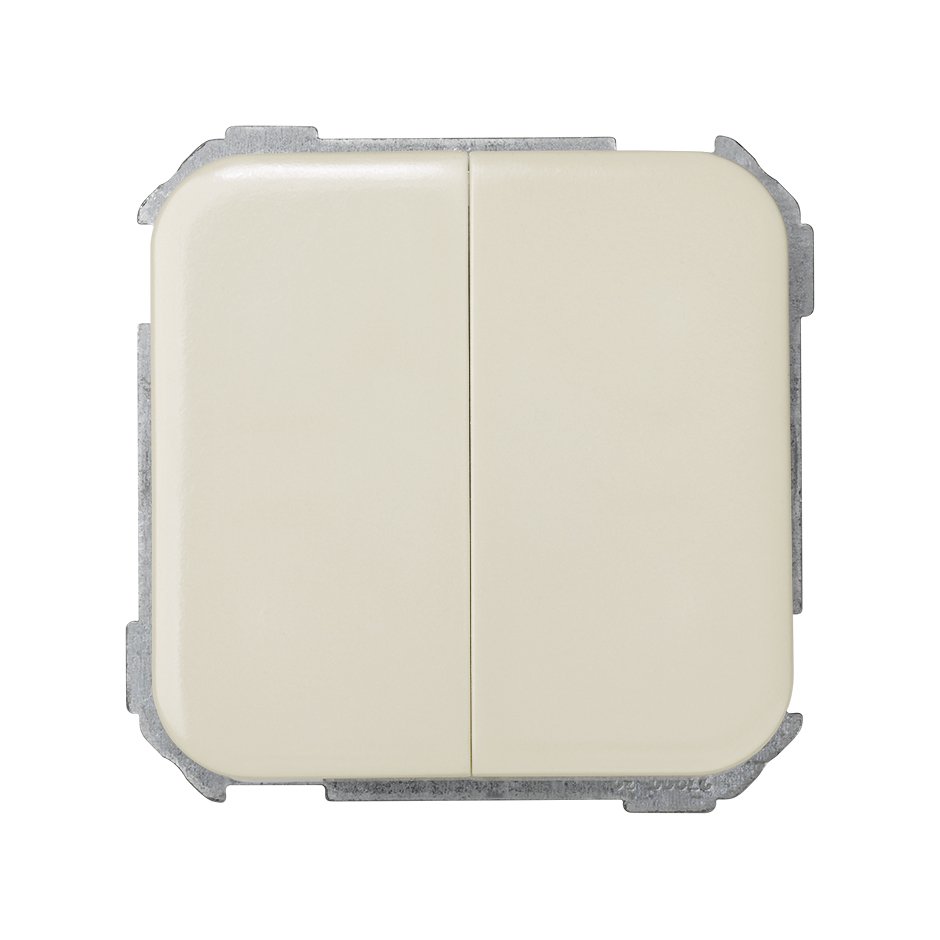

Set 2 push buttons blinds 10A 250V~ Simon 31 ivory front view

Set 2 push buttons blinds 10A 250V~ Simon 31 ivory front view

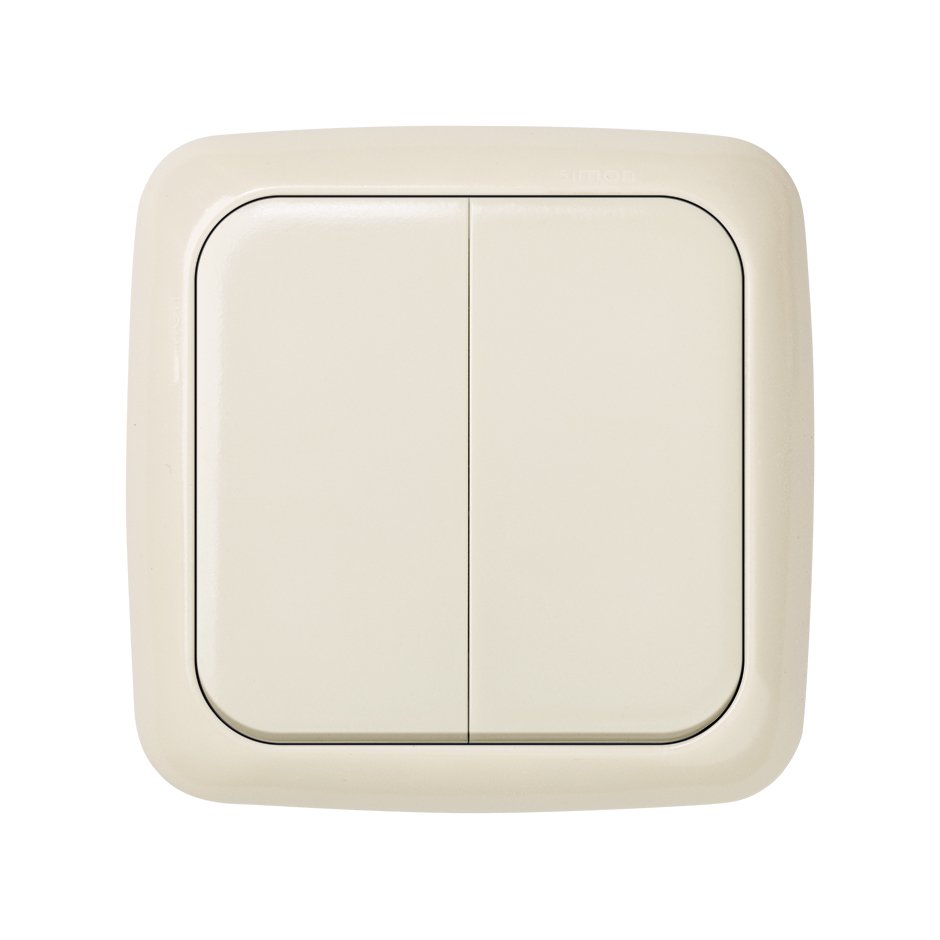

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31396-31

Set of 2 push buttons 10A 250V~ (2 inputs+2 outputs) mech.blinds without latching sys. with fast terminal connection ivory Simon 31

Price/Unit
€19.15
Packaging quantity
10 Units

Available downloads

Data sheet

31396-31.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

Unit of two push buttons with 2 inputs and 2 outputs for blinds, in ivory colour and without latching system (so it requires a control device), belonging to the Simon 31 series.

It has a quick terminal connection and a rocker operation and a voltage of 250V and an current of of 10 AM.

It has 2 modules and supports a cable section of 1.5 to 2.5 mm, with a stripping of 11 mm and can be installed in rooms with a temperature located between 5 and 40ºC, although it ’ s true that works also perfectly in places with a temperature of -25 to 50ºC, approximately.

Its design is in compliance with regulations UNE-EN 60669-1:2002 + A1:2003 + A2:2009 and is manufactured with metal components with halogen-free thermoplastic insulation and trim made of thermoplastic.

It measures 64x65 mm and is easily cleaned by wiping it gently with a soft cloth moistened in soapy water.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Mechanism with no latching. Requires control device.

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of latching

    Non-latching

  • Type of mechanism

    Pivoting

  • Version

    Double

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.095 KGM

  • Product gross weight

    0.095 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.95 KGM

  • Packaging gross weight

    0.95 KGM

  • Packaging EAN

    8421053052075
