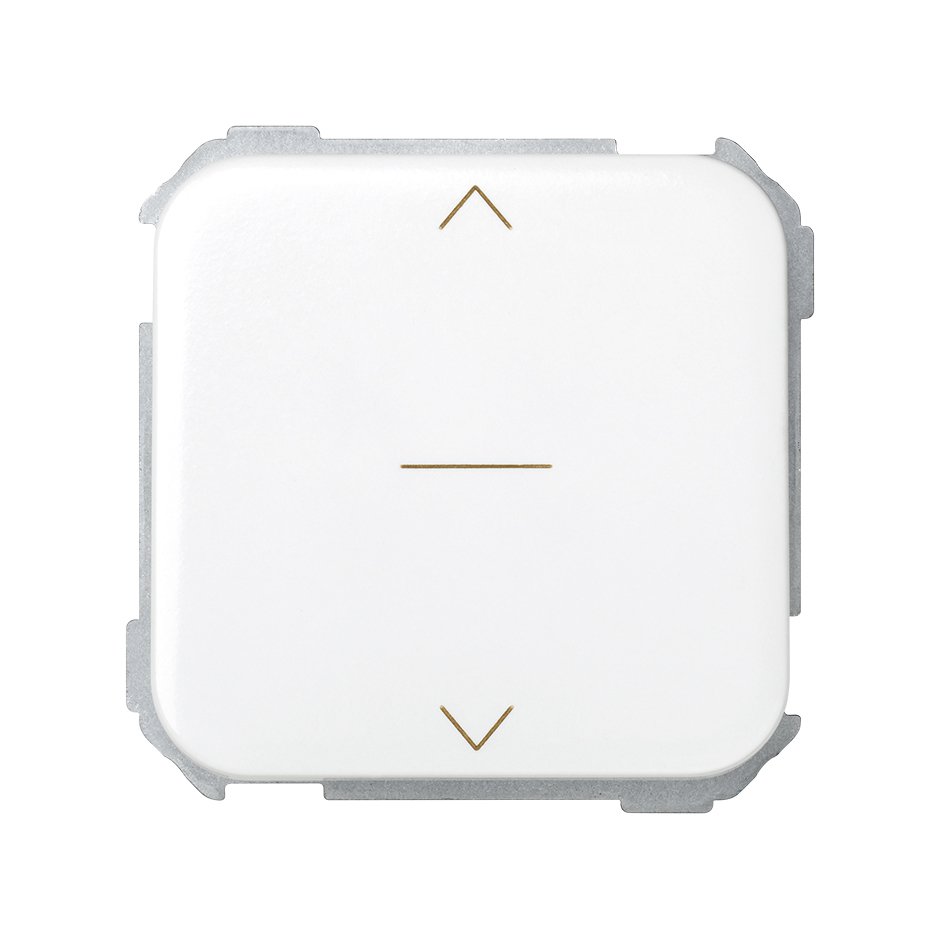

Switch blinds 10A 250V~ 3 positions Simon 31 white front view

Switch blinds 10A 250V~ 3 positions Simon 31 white front view

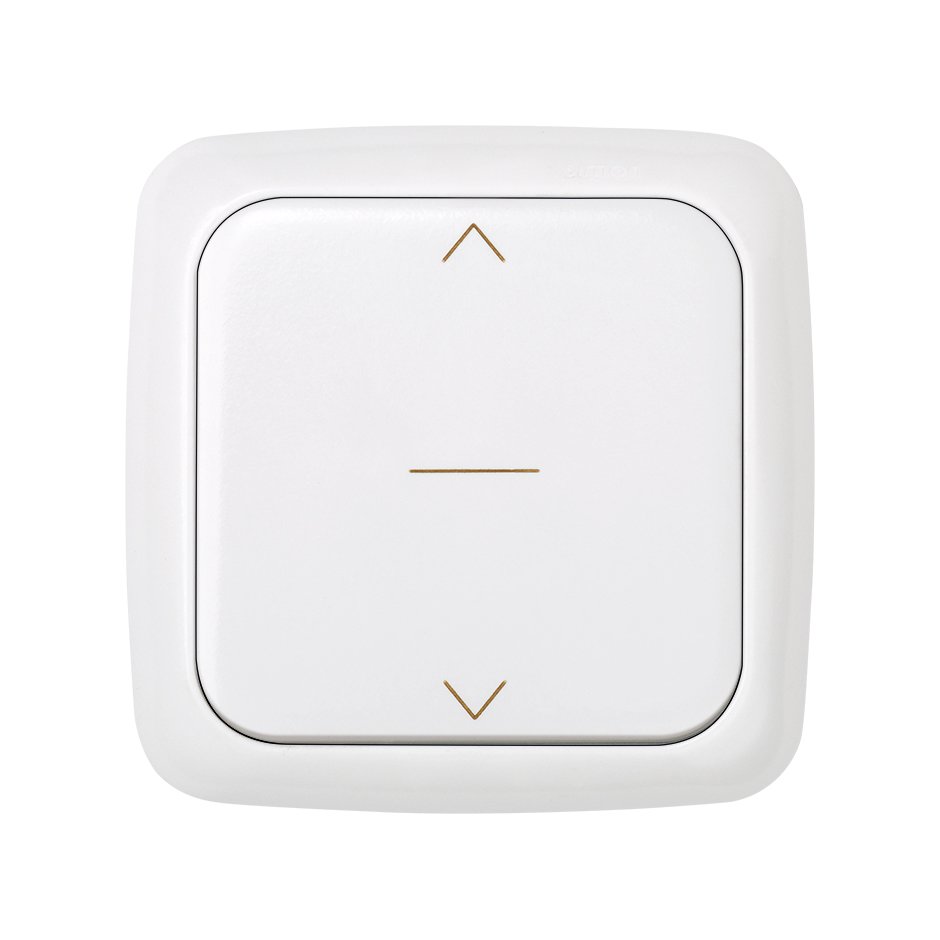

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31333-60

Switch for blinds 10A 250V~ with 3 positions: up, down and stop white Simon 31

Price/Unit
€27.19
Packaging quantity
10 Units

Available downloads

Data sheet

31333-60.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

The maximum comfort in terms of control and management of the mechanisms of blinds is defined thanks to the supply of Simon in its series 31. The simplicity of the electric mechanism to layout of the user to ensure that has the maximum comfort.

Easy assembly and installation, this collection only requires the mechanism that includes the corresponding rocker or cover, as well as the frame. As we is accustomed Simon in all this time, the quality and durability of the products of this series (and the other Simon collections) is unsurpassed.

Another example is this Switch for blinds (10 Amps 250 Volt voltage) with 3 positions: Up, down and stop, which is ideal to stop the rise / fall of the blind. Finished in white, including Yes, includes engraving for point to each of the positions: Raise, lower and stop position control unit.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Mechanism with centre position to stop the up/down movement of the blinds.

  • Finish

    White

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    9 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product net weight

    0.073 KGM

  • Product gross weight

    0.073 KGM

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    165 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3.017 DMQ

  • Packaging net weight

    0.73 KGM

  • Packaging gross weight

    0.73 KGM

  • Packaging EAN

    8421053081082
