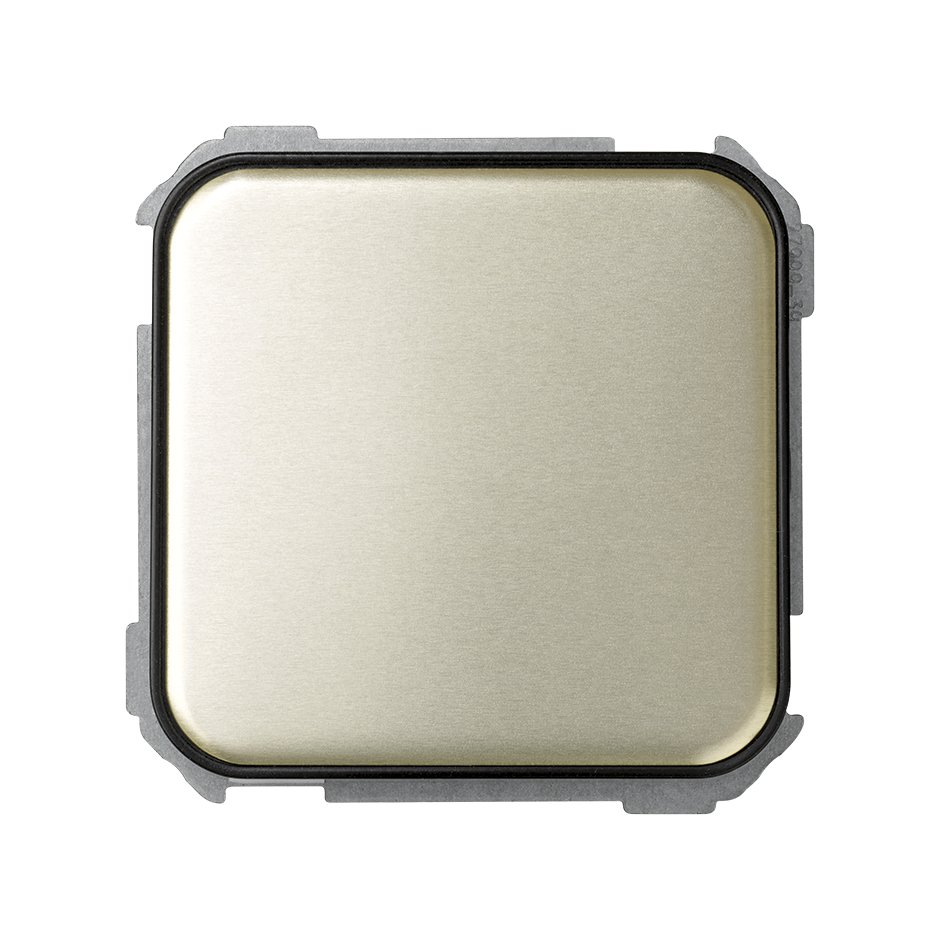

Intermediate switch 10AX 250V~ Simon 31 decorative brown front view

Intermediate switch 10AX 250V~ Simon 31 decorative brown front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31251-36

Intermediate switch 10AX 250V~ with fast terminal connection system decorative brown Simon 31

Price/Unit
€28.28
While stocks last
Packaging quantity
10 Units

Available downloads

Data sheet

31251-36.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

To your room the maximum workplace solutions with the crossing for 2-way switch of the collection Simon 31. With a design of finishes in a cloth tone, brown, the crossing of Simon 31 with rocker operation and quick terminal connection for greater functionality of the mechanism.

It consists of two modules with cable section cross-section of 1.5 to 2.5 mm and stripping of 11 mm with a dimension of 64 x 65 mm, it is composed of metal materials, free of halogens and the trim is made of thermoplastic of finishes in metal, to protect the space in case of fire.

The crossing Simon 31 is compatible with a voltage of power of 250 Volt and 10 AX of intensity, and can reach maximum temperatures of -25 to 50 ºC.

Workplace solutions, functionality, innovation and a design of clean lines, united in the crossing of the collection Simon 31.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    Decorative brown

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.101 KGM

  • Product gross weight

    0.101 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    1.01 KGM

  • Packaging gross weight

    1.005 KGM

  • Packaging EAN

    8421053009499
