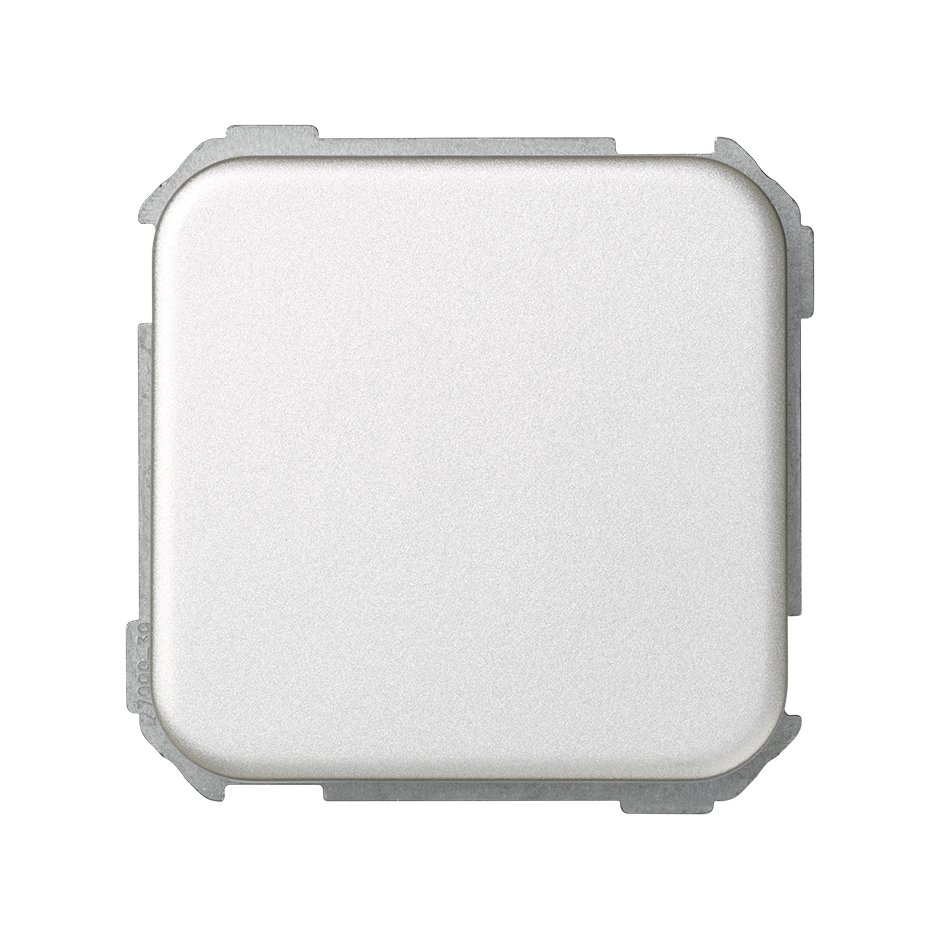

Intermediate switch 10AX 250V~ Simon 31 aluminium front view

Intermediate switch 10AX 250V~ Simon 31 aluminium front view

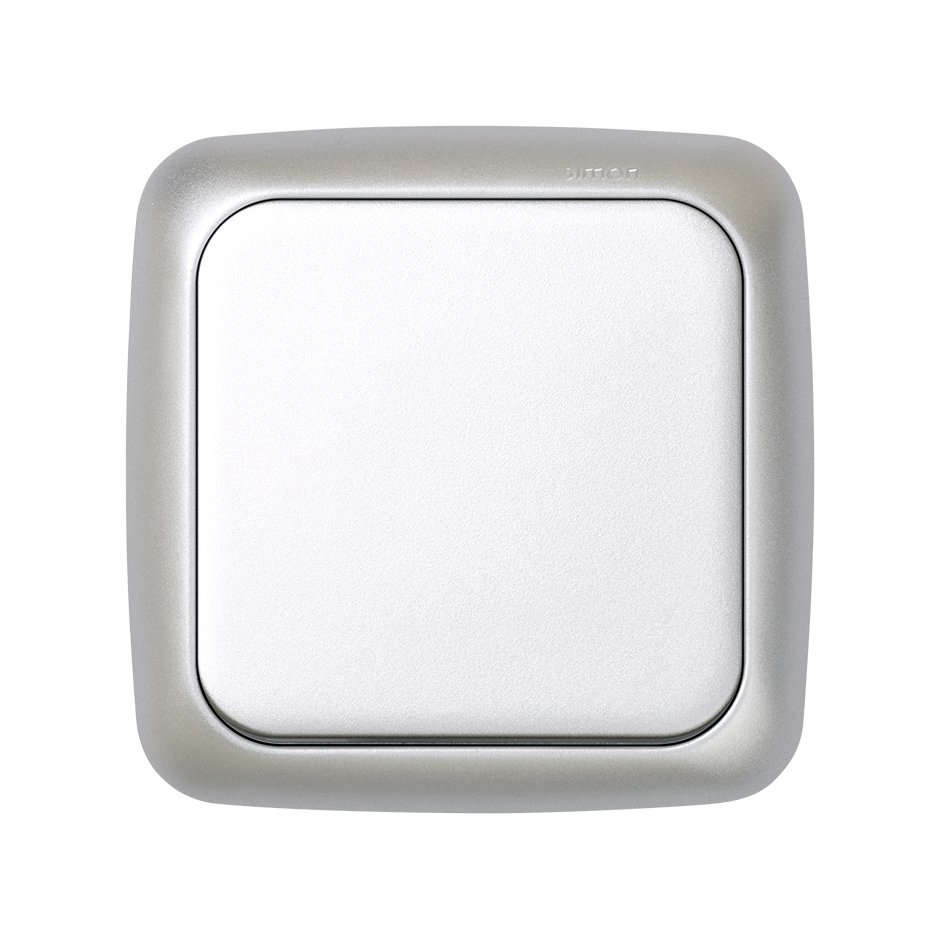

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31251-33

Intermediate switch 10AX 250V~ with fast terminal connection system aluminium Simon 31

Price/Unit
€21.23
Discontinued
Packaging quantity
10 Units

Available downloads

Data sheet

31251-33.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

With a current of 10AX and a voltage of 250V ~, the crossover switch with quick terminal connection in aluminium colour of the Simon 31 series is one of the best solutions for electrical systems in private homes, commercial premises or industrial facilities. It has a rocker operation and it is recommended to choose a frame with the same colour as the rocker selected from the five finishes available.

This element has two modules, dimensions of 64x65 mm, a cable section of 1.5 to 2.5 mm and wire stripping of 11 mm. You have been manufactured with the best metal components with halogen-free insulation and metallised thermoplastic trim, materials that give it great resistance to knocks and scratches and a performance in environments with high humidity and extreme temperatures. Cleaning with a soft, dry cloth is enough to maintain the structure in perfect condition.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    Aluminium

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product net weight

    0.083 KGM

  • Product gross weight

    0.083 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3.027 DMQ

  • Packaging net weight

    0.83 KGM

  • Packaging gross weight

    0.83 KGM

  • Packaging EAN

    8421053071779
