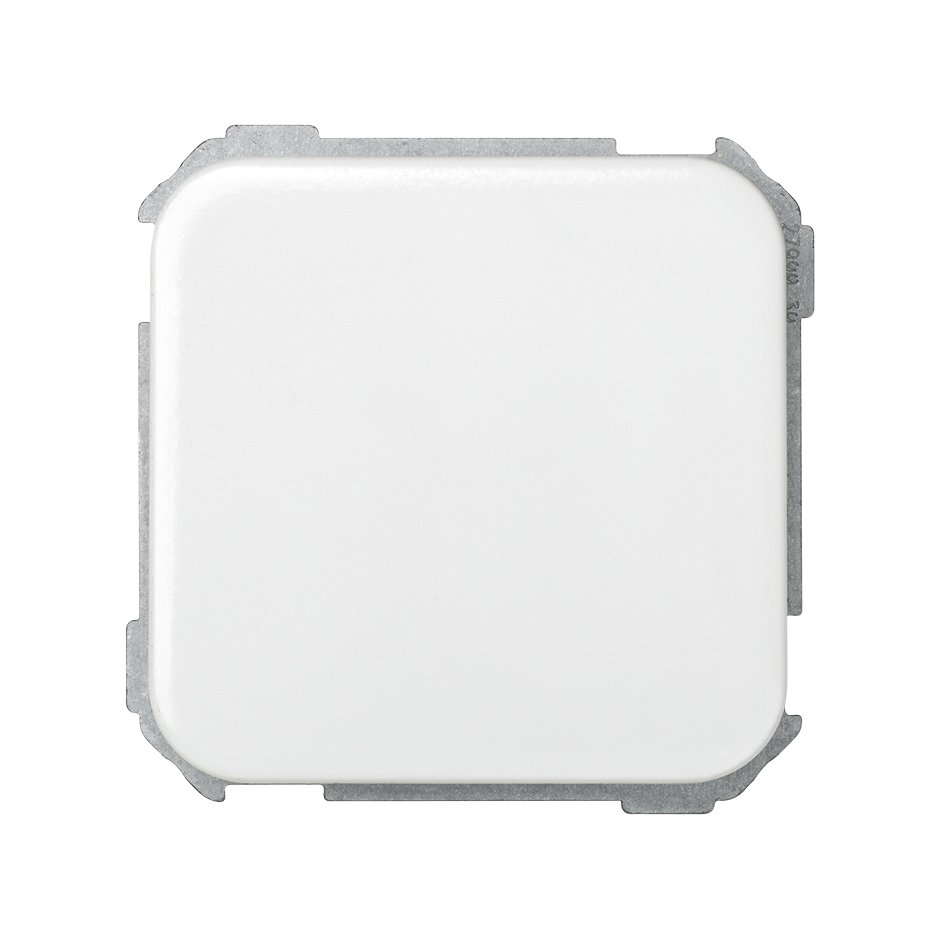

Intermediate switch 10AX 250V~ Simon 31 white front view

Intermediate switch 10AX 250V~ Simon 31 white front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31251-30

Intermediate switch 10AX 250V~ with fast terminal connection system white Simon 31

Price/Unit
€19.73
Packaging quantity
10 Units

Available downloads

Data sheet

31251-30.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

The crossover with a current of 10AX and a voltage of 250V~ with quick terminal connection system in white from the Simon 31 series forms the perfect combination thanks to the most innovative design and the simplest functionality. This element, which is ideal for providing greater safety to an electrical system, is available in 5 finishes, so it is recommended to choose a frame the same colour as the selected rocker.

This article has dimensions of 64x65 mm, a cable section of 1.5 to 2.5 mm and wire stripping of 11 mm. It has a rocker operation and is resistant to the passage of time and adverse temperatures is due to the fact that it has been manufactured with metal components with halogen-free thermoplastic insulation and thermoset trim. The rockers with colours and covers for the frames are sold independently to allow you to change the colour and appearance of the mechanisms.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    White

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product net weight

    0.085 KGM

  • Product gross weight

    0.085 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.85 KGM

  • Packaging gross weight

    0.85 KGM

  • Packaging EAN

    8421053005859
