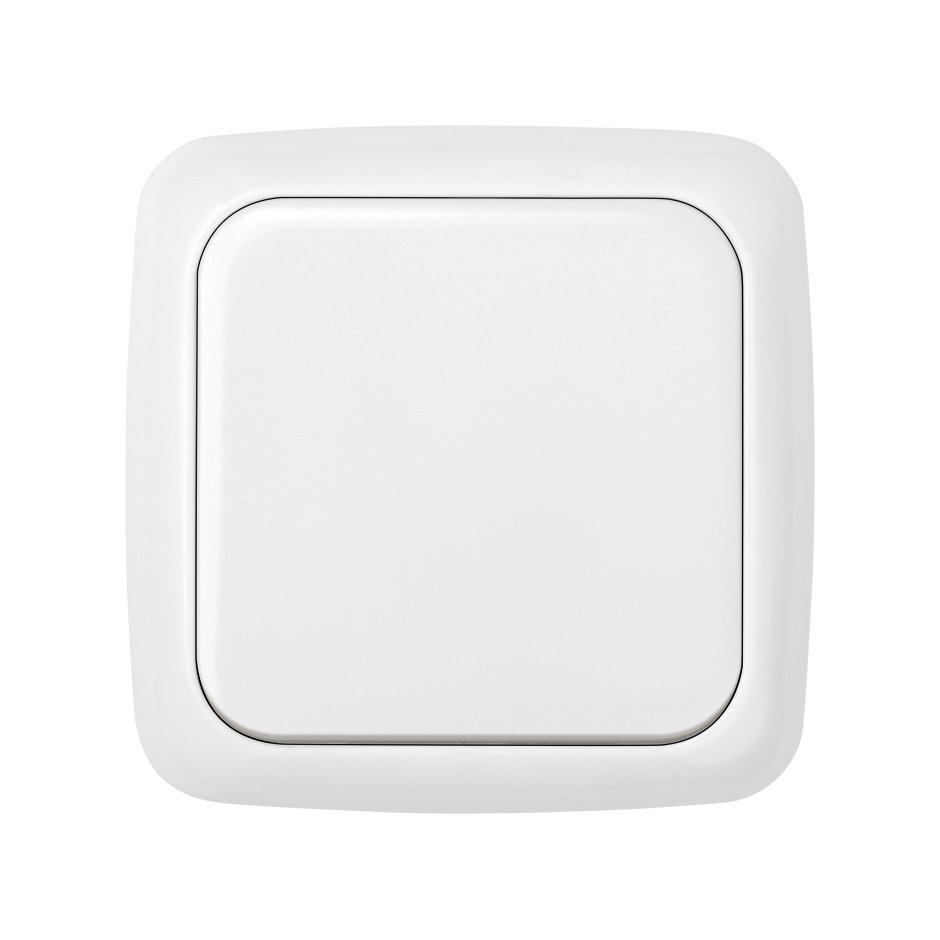

2-way switch 16AX 250V~ Simon 31 white front view

2-way switch 16AX 250V~ Simon 31 white front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31211-30

2-way switch 16AX 250V~ with fast terminal connection system white Simon 31

Price/Unit
€12.95
Packaging quantity
10 Units

Available downloads

Data sheet

31211-30.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

White in colour, with finishes to choose from a total of 3 different, the 2-way switch with tilting quick terminal connection system are included in the series Simon 31 and measures 64x65 mm, this individual piece is composed of two modules, it has been manufactured with metal components halogen-free and trim in thermostable to ensure a product of high quality. From Simon we recommend choosing both the rocker and the frame in the same finish to obtain a better aesthetic result.

We know that the quality not always has to be face. Therefore, the range of products of the Simon 31 is characterized by a simple and timeless avant-garde designs that do not go out of fashion and that are affordable to all around the world. Because the best ratio on the market is here.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 3 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    White

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    16 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3017190 MMQ

  • Product net weight

    0.086 KGM

  • Product gross weight

    0.086 KGM

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    165 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3017190 MMQ

  • Packaging net weight

    0.86 KGM

  • Packaging gross weight

    0.86 KGM

  • Packaging EAN

    8421053041536
