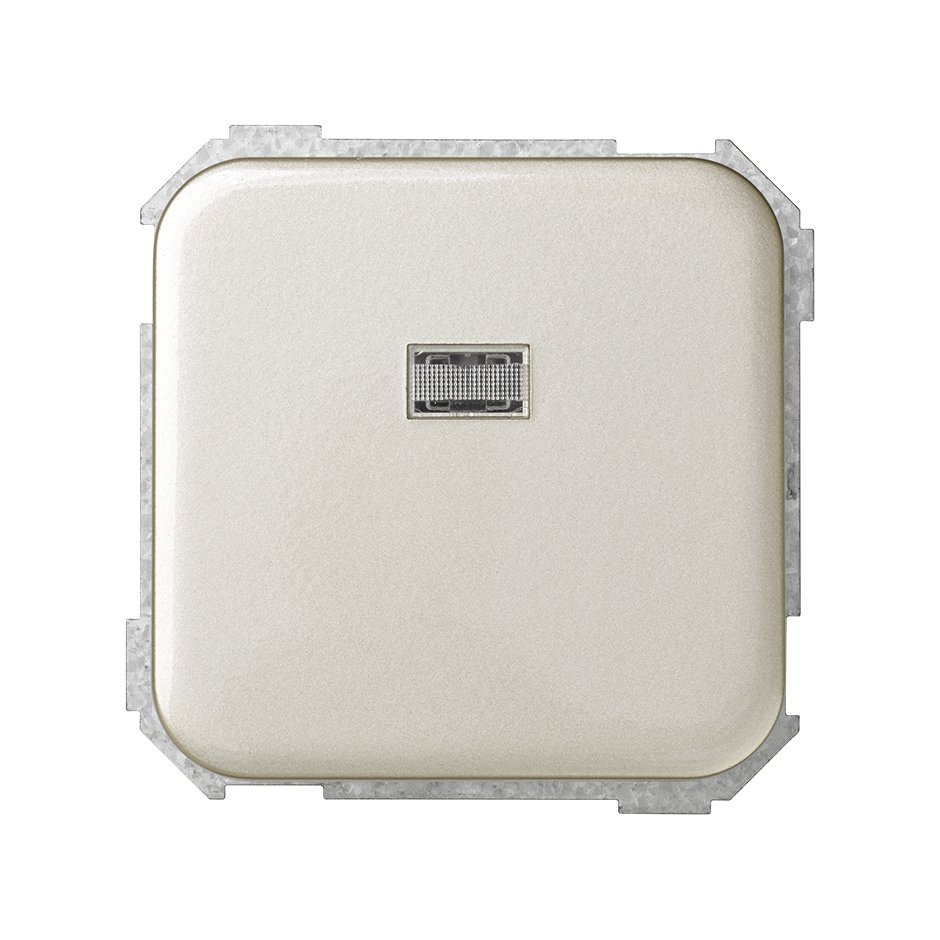

Single-pole switch with light 10AX 250V~ Simon 31 champagne front view

Single-pole switch with light 10AX 250V~ Simon 31 champagne front view

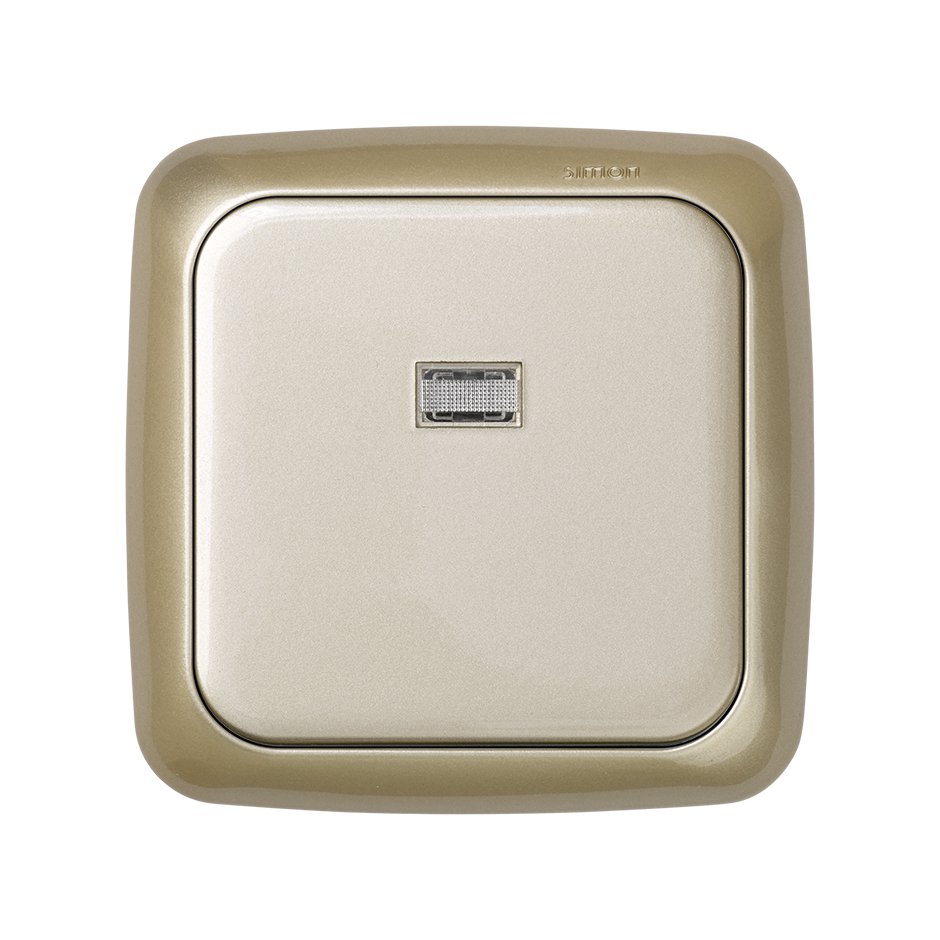

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31104-34

Single-pole switch 10AX 250V~ with built-in light and fast terminal connection system champagne Simon 31

Price/Unit
€19.17
Discontinued
Packaging quantity
10 Units

Available downloads

Data sheet

31104-34.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

With a design of simple lines and finishes in a stylish champagne colour, the single-pole switch of the collection Simon 31, it adapts to all kinds of environments, thanks to its decorative timeless design of notes minimalist, with indicator light, built-in and quick terminal connection, innovation and functionality to be the perfect balance in this product.

With a size of 64 x 65 mm, it consists of two modules with capacity for 1 element and supports a wire cross section of 1.5 to 2.5 mm and stripping of 11mm. It is also compatible with a power of 250 Volt voltage and 10 AX intensity, and the signal function has a consumption of 1 mA.

It is made of metal components with halogen-free insulation and thermoplastic trim, metallised, protecting the room in case of fire, and can reach maximum temperatures of -25 to 50 ºC.

If you need to replace the indicator light, Simon 28 recommends combining it with the product reference 31802-31.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Can be combined with article 31802-31 if replacing the light indicator.

  • Finish

    Champagne

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    1 mA

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.091 KGM

  • Product gross weight

    0.091 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.91 KGM

  • Packaging gross weight

    0.91 KGM

  • Packaging EAN

    8421053008638
