2-way switch with key 2.5A 250V~ 2 positions (key removable in both positions) and welding terminal connection white Simon 27 Play

REFERENCE NO.: 27521-65
R.P.: Price on request
PACKAGING: 1Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Finish:  White
Indicator function:  No
No. of possible elements:  1 element
Claw:  Included
Compatibility:  Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames
Packaging contents:  Mechanism with cover
Remarks:  Mechanism with 2 positions and key is removable in both positions.
Series:  Simon 27 Play
Version:  Single
Intensity:  25 A
Voltage:  250 V~
Type of terminal connection:  Welding
Type of mechanism:  Key
Key-removal position:  Both positions

TECHNICAL INFORMATION

Cable section admitted:  0.5 mm
Cable stripping necessary:  7 mm
IP rating:  20
RAL:  Does not have
Manufacturing material:  Metal components with halogen-free insulation and thermoplastic trim
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal, American and Centralisations
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  1
Box measurement unit:  MM
Height:  57.000
Wide:  76.000
Depth:  76.000
Box volume:  0.329
Box volume measurement unit:  CDM
Net weight of box:  0.095
Unit weight of box:  KGM
EAN code:  8421053082133
Available on pallet:  No

GALLERY

27521-65-conmutador-con-llave-dos-posiciones-5A-250V-embornamiento-soldadura-2-modulos-blanco-simon-27-play-frontal.jpg

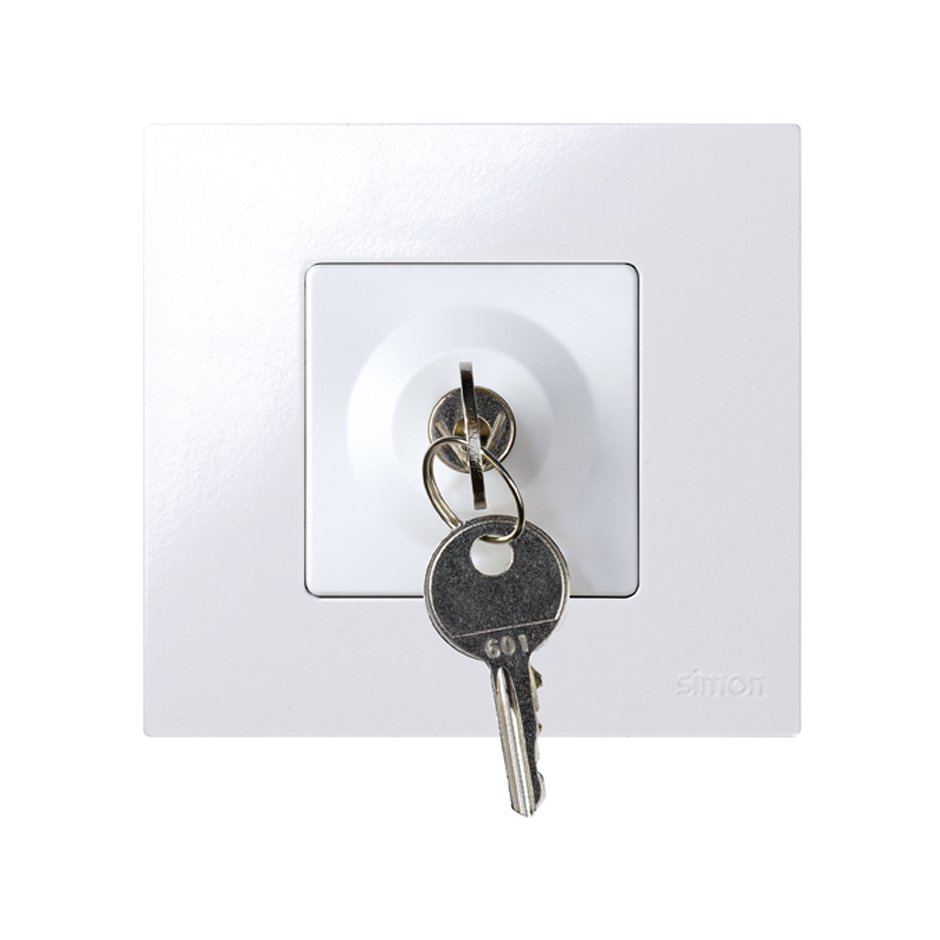

2-way switch with key 2 positions 2.5A 250V~ Simon 27 Play white front view


This image represents the combination of different references

27521-65-conmutador-con-llave-dos-posiciones-5A-250V-embornamiento-soldadura-2-modulos-blanco-simon-27-play-frontal.jpg

INSTALLATION MANUAL

manual
Instruction sheet 2-way switch with key 2.5A 250V~ 2 positions (key removable in both positions) and welding terminal connection white Simon 27 Play DOWNLOAD
