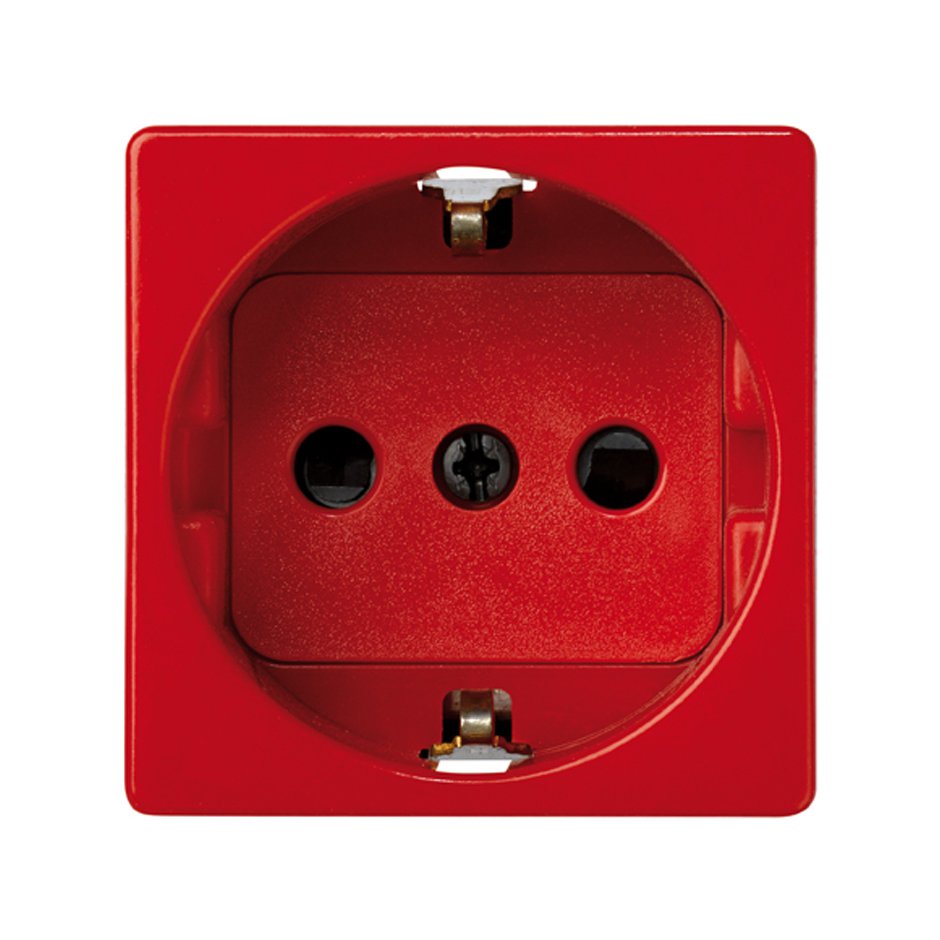

German socket outlet with safety 16A 250V~ Simon 27 Play front view

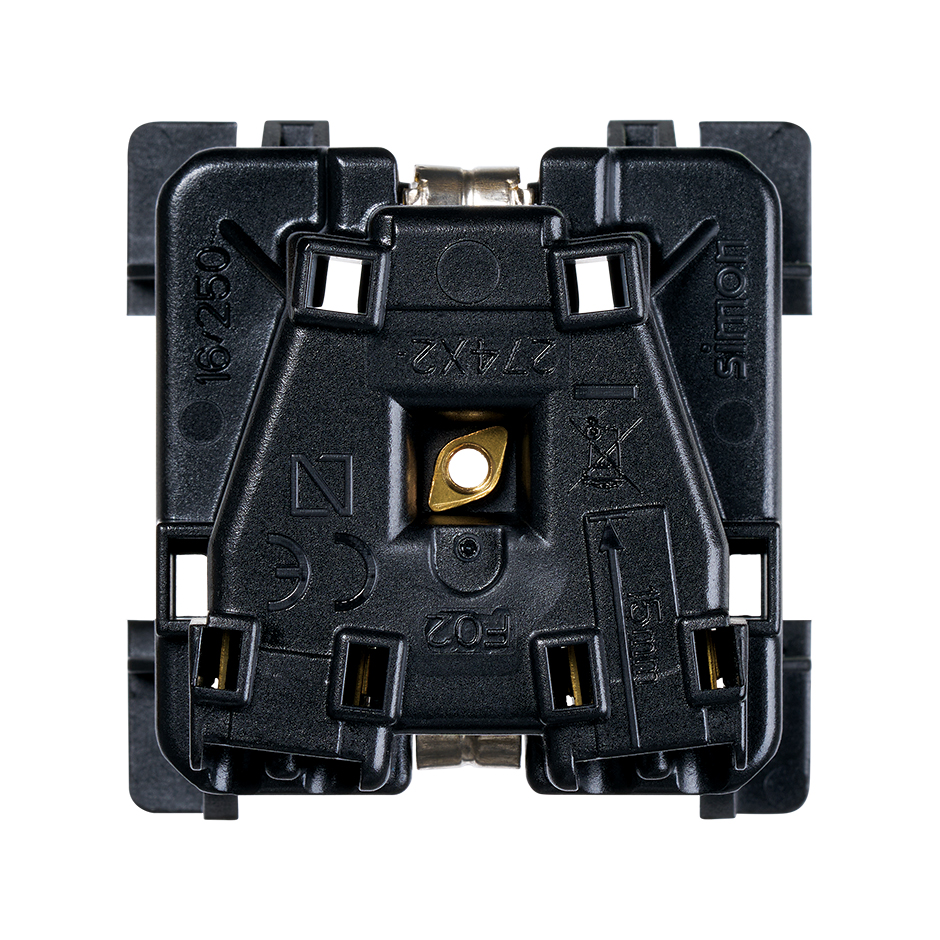

German socket outlet with safety 16A 250V~ Simon 27 Play rear view

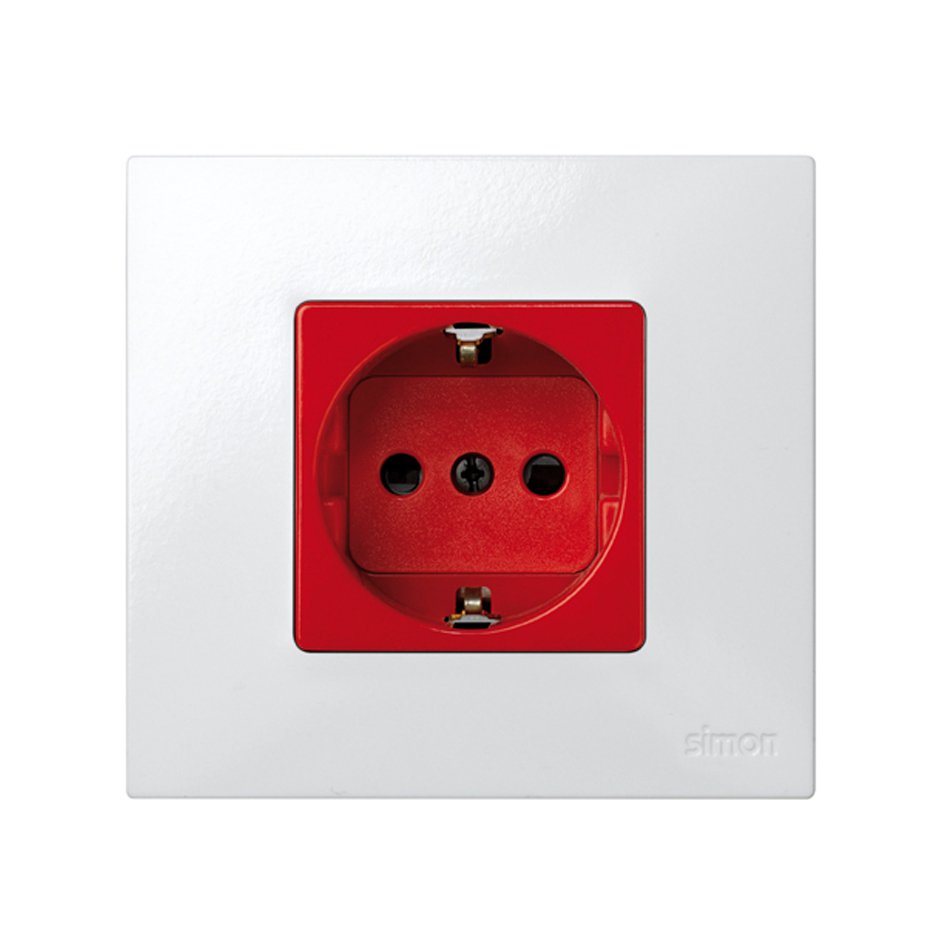

This image represents the combined solution of different references

German socket outlet with safety 16A 250V~ Simon 27 Play front view

Ref
27432-68

German socket outlet 16A 250V~ with safety device and fast terminal connection red Simon 27 Play

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Base de tomada Shuko com uma intensidade de 16 A e uma potência de 250 V~ que inclui dispositivo de segurança e ligação rápida de bornes, fabricado em cor vermelho e da série Simon 27 Play. O seu tipo de funcionamento é mediante inserção e podê-lo-ás encontrar na categoria de “tomadas de corrente”. As suas dimensões são de 45x45 mm.

A base de tomada já inclui as tampas com a função de proteção infantil, para que todos os pequenos estejam protegidos perante qualquer erro elétrico na ficha. O elemento na hora da sua instalação é adequado para superfície e para encastrar o que poupa muito tempo na hora de levar a cabo a instalação.

Para mantê-lo corretamente como novo, é recomendável utilizar um pano suave e seco sem lhe acrescentar nenhum detergente abrasivo que contenha cloro ou alguma substância corrosiva. Para seu proteção é fabricado com componentes metálicos da máxima qualidade e isolantes, além disso sua embelezador é termoplástico para funcionar a máximo rendimento em diferentes intervalos de temperatura.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    Red

  • Packaging contents

    Socket outlet with cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed 3.2

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.052KGM

  • Product gross weight

    0.052KGM

  • Product EAN

    8421053252109

  • Packaging quantity

    10

  • Packaging height

    53MMT

  • Packaging width

    105MMT

  • Packaging length

    221MMT

  • Packaging volume

    1229865MMQ

  • Packaging net weight

    0.52KGM

  • Packaging gross weight

    0.52KGM

  • Packaging EAN

    8421053051535
