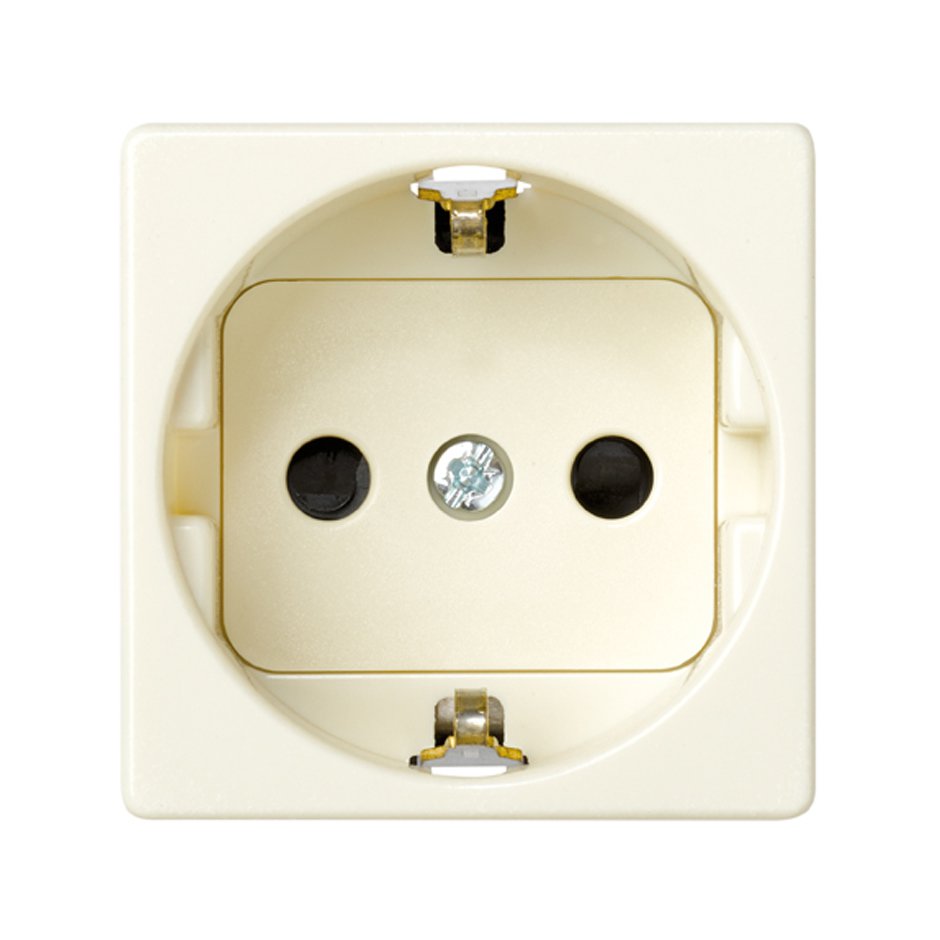

German socket outlet 16A 250V~ Simon 27 Play ivory front view

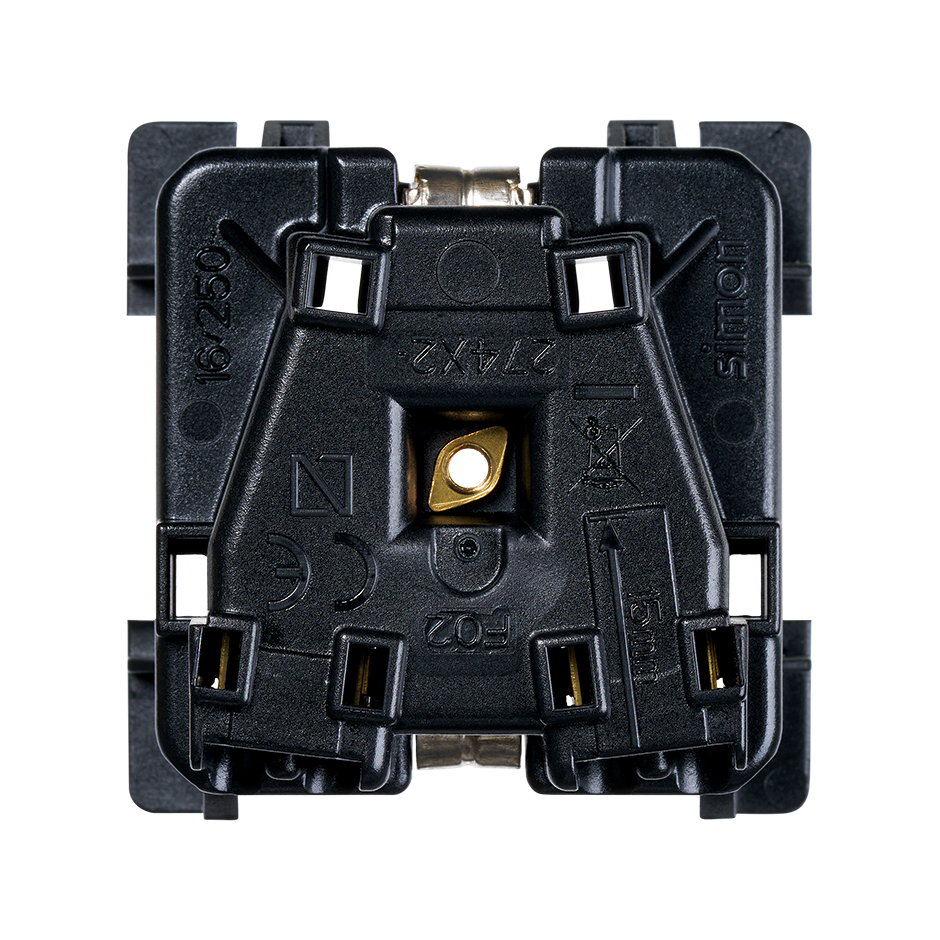

German socket outlet 16A 250V~ Simon 27 Play ivory rear view

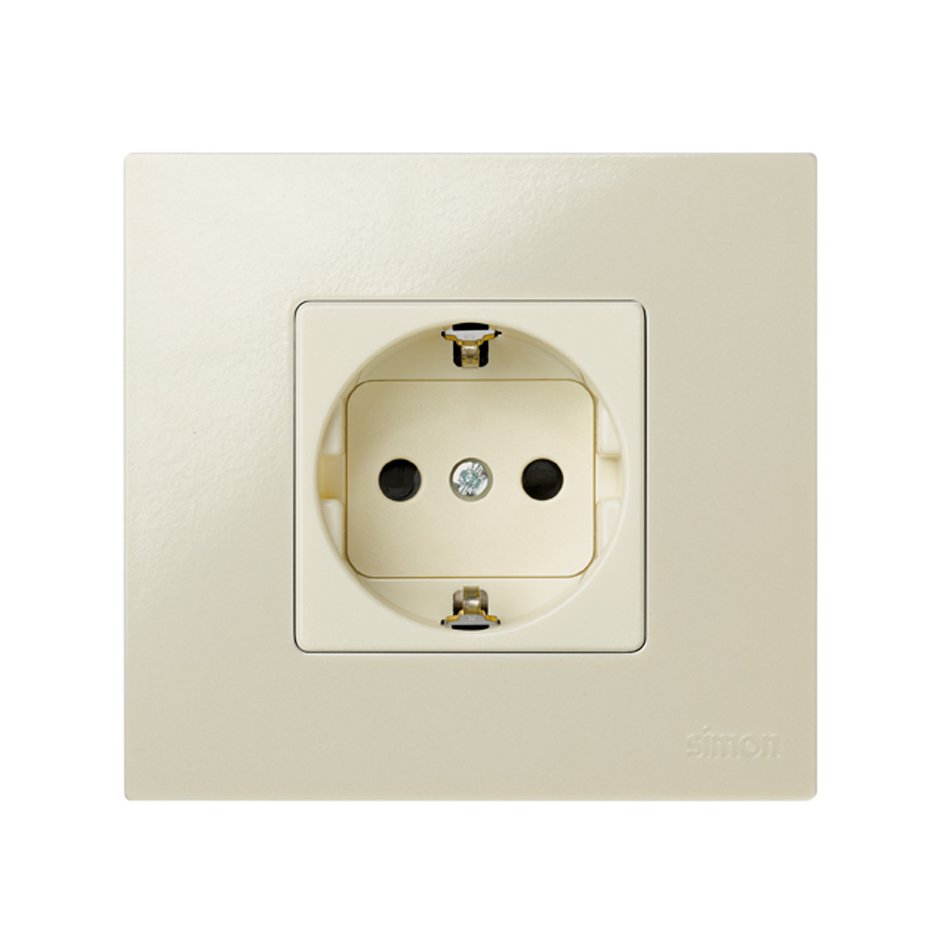

This image represents the combined solution of different references

German socket outlet 16A 250V~ Simon 27 Play ivory front view

Ref
27432-62

German socket outlet 16A 250V~ with safety device and fast terminal connection ivory Simon 27 Play

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Shuko socket-outlet with an intensity of 16 A and a power of 250 V~ also includes a safety device, fast terminal connection, its finish is ivory in colour and you can find it in the category "outlets" of the Simon 27 Play series, the lids include the child protection function. Its installation, it is suitable to be recessed or surface-mounted, so you will have both ways choosing the one that best suits your home.

The elements of the Simon 27 Play range are to enjoy decorating, this way you have created a concept to decorate the different spaces of your home, take advantage of the great variety when it comes to customizing the elements that the collection offers, you will have frames for intermediate piece, hinged cover and rocker sleeve in different finishes to adapt the element in any corner of the home.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    Ivory

  • Packaging contents

    Socket outlet with cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed 3.2

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.055KGM

  • Product gross weight

    0.055KGM

  • Product EAN

    8421053252086

  • Packaging quantity

    10

  • Packaging height

    53MMT

  • Packaging width

    105MMT

  • Packaging length

    221MMT

  • Packaging volume

    1229865MMQ

  • Packaging net weight

    0.55KGM

  • Packaging gross weight

    0.515KGM

  • Packaging EAN

    8421053051498
