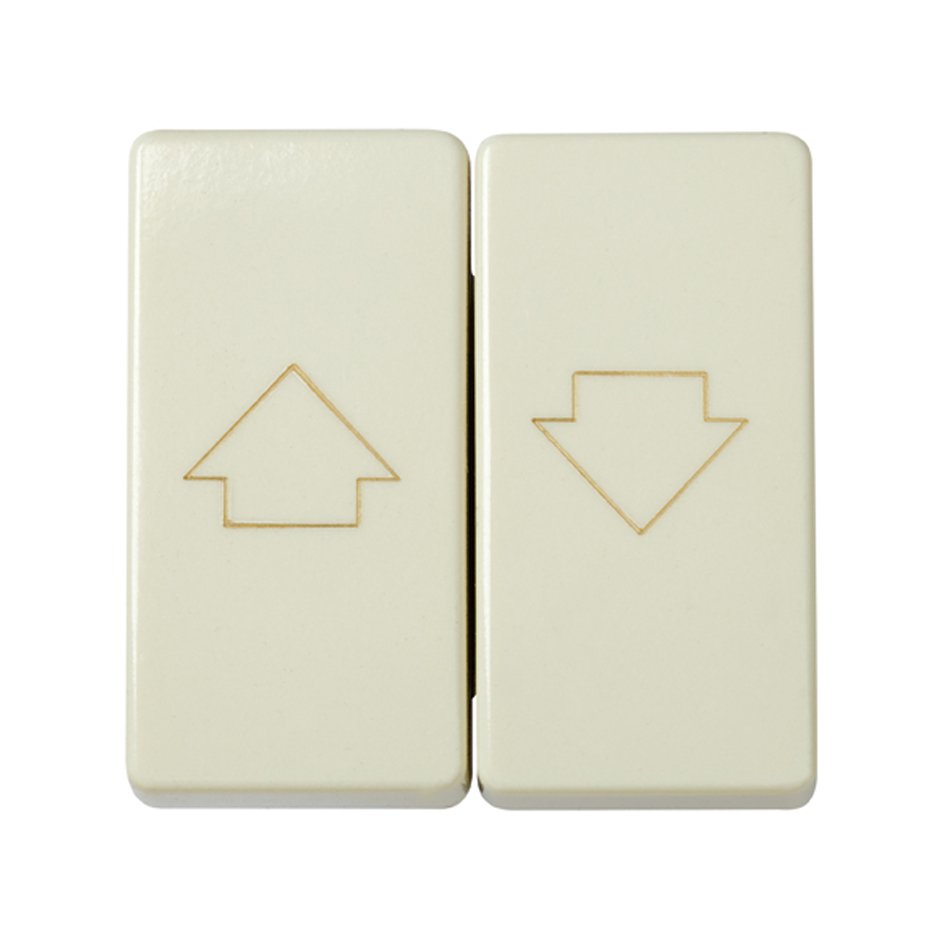

Push buttons blinds 10A 250V~ Simon 27 Play ivory front view

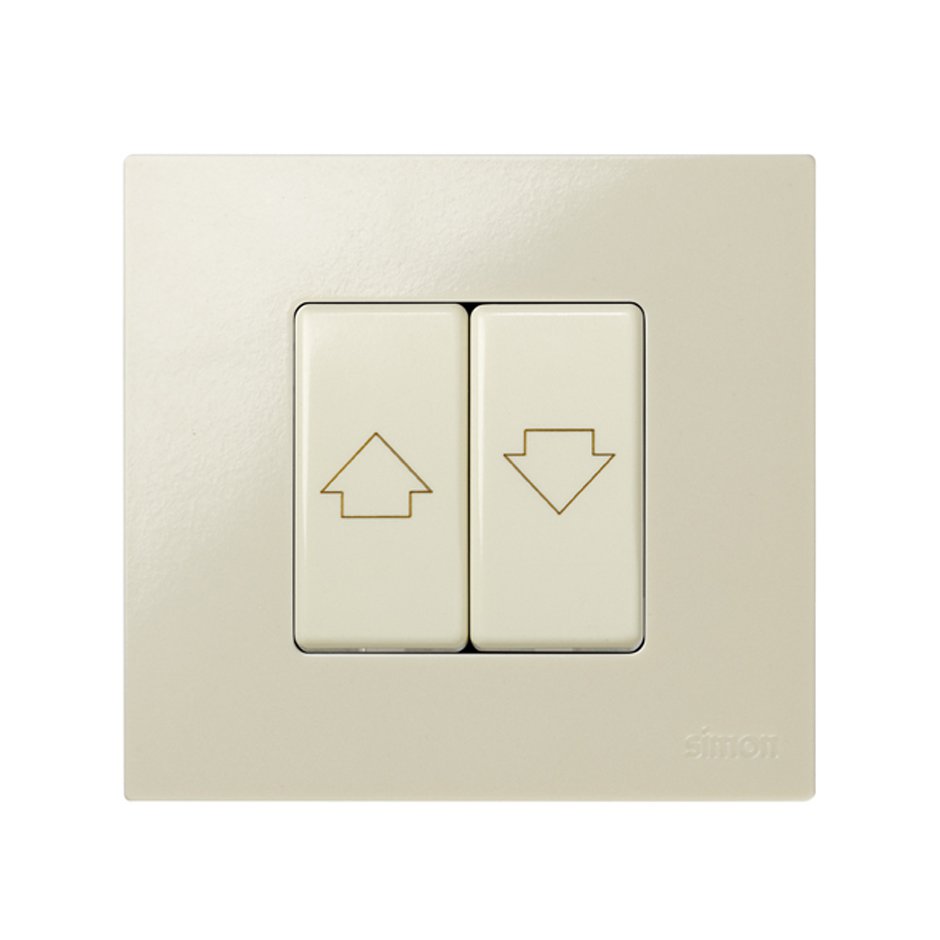

This image represents the combined solution of different references

Ref
27332-32

Set of 2 push-button switches for blinds 10A 250V~ with electrical latching system ivory Simon 27 Play

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27 Neos

Simon 27

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Controls the natural light in your room so intuitive and customized to each space with the group of 2 push buttons for blinds of Simon 27 Play. With finishes in ivory and engraving of the up / down blinds, makes this set of push buttons option is ideal for spaces where the innovation and functional lighting earn prominence.

With a size of 45 x45 mm, it consists of two modules with tilting system integrated, and is compatible with a power of 250 Volts and intensity of 10 Amps and a cable section cross-section of up to 2.5 mm and stripping of 11 mm

It is made of metal materials with halogen-free thermoplastic isolated, and thermoset trim for greater security in case of fire, to prevent the flame spread and toxicity by smoke.

Designed for installation, recessed or surface-mounted, it is equipped with latching of security, to prevent the simultaneous actuation

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Mechanism fitted with security latching to prevent simultaneous operation.

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rockers

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of latching

    Electric

  • Type of mechanism

    Pivoting

  • Version

    Double

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2078

Logistics Information
  • Product volume

    895125MMQ

  • Product net weight

    0.053KGM

  • Product gross weight

    0.053KGM

  • Packaging quantity

    5

  • Packaging height

    155MMT

  • Packaging width

    55MMT

  • Packaging length

    105MMT

  • Packaging volume

    0.895DMQ

  • Packaging net weight

    0.265KGM

  • Packaging gross weight

    0.265KGM

  • Packaging EAN

    8421053071717
