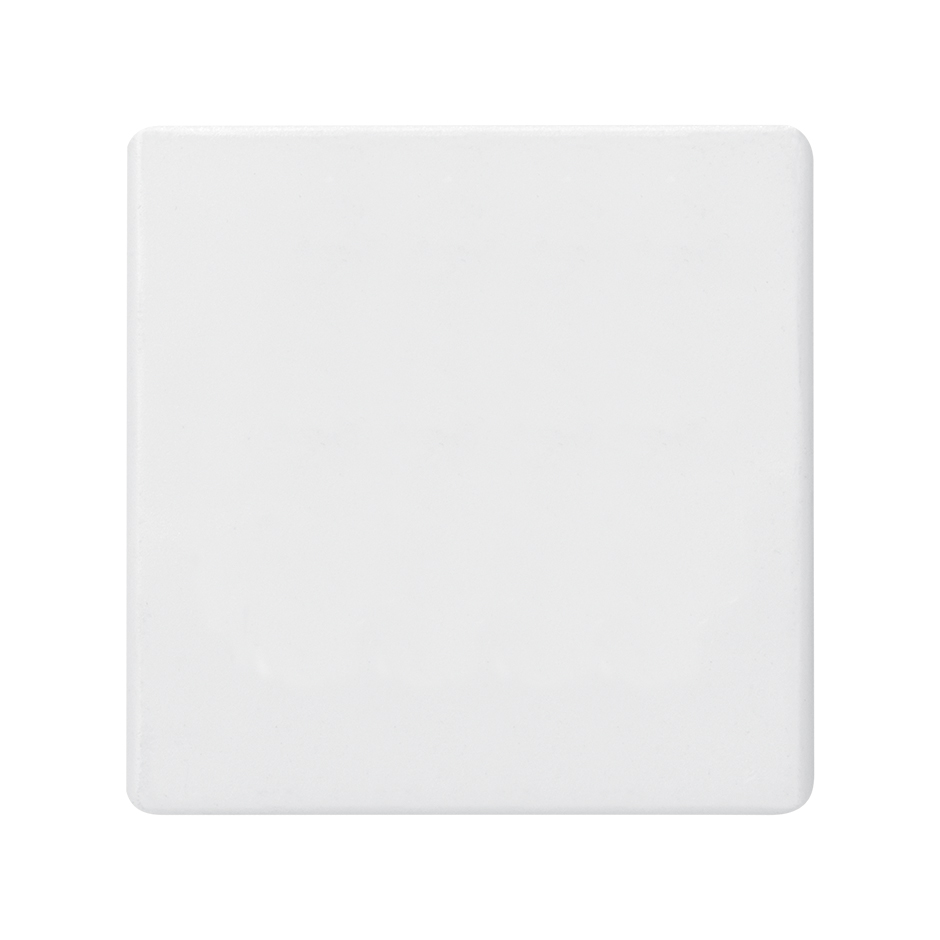

Intermediate switch 10AX 250V~ Simon 27 Play white front view

Intermediate switch 10AX 250V~ Simon 27 Play white front view

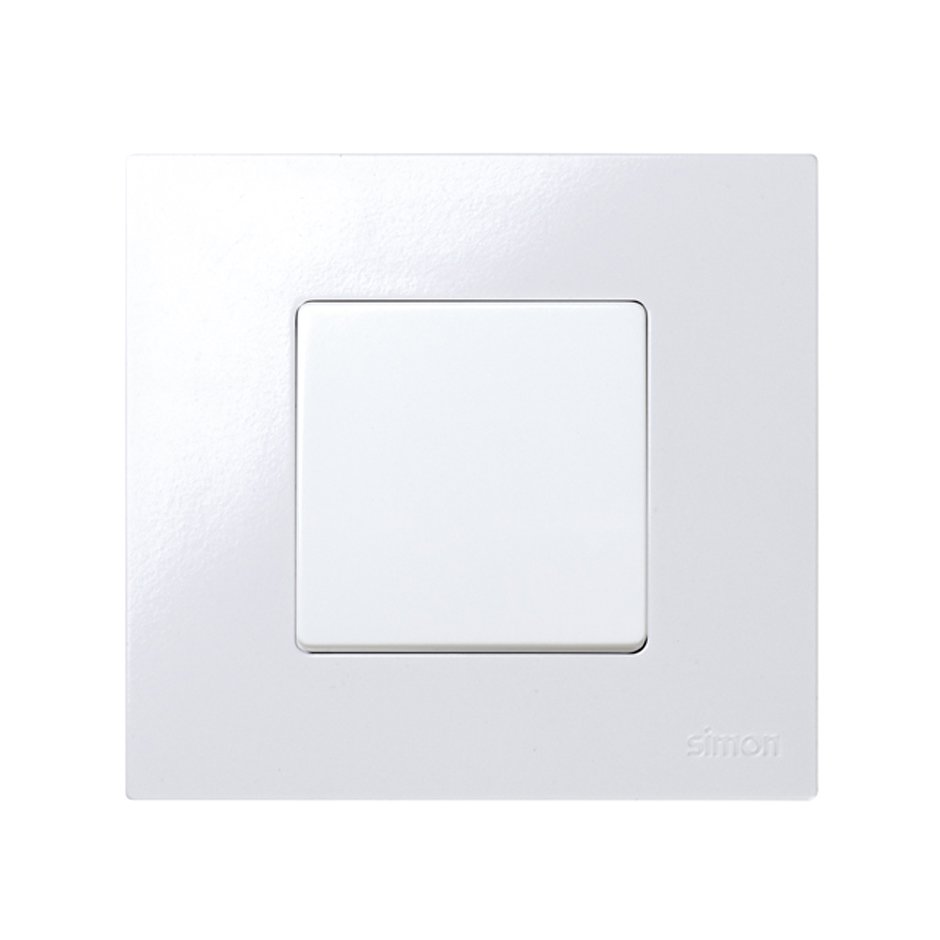

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27251-65

Intermediate switch 10AX 250V~ with fast terminal connection system white Simon 27 Play

Price/Unit
€14.34
Packaging quantity
10 Units

Available downloads

Data sheet

27251-65.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

Belonging to the Simon 27 Play series, this 10 AX and 250V crossover is white in colour and is also available in ivory colour.

Its operation is tilting and is part of the range of control mechanisms of this series. It measures 45 mm high x 45 mm wide.

It incorporates the fast-terminal connection system. The wire that supports is from 1.5 to 2.5 mm and the stripping of the wire required to make the connection is 11 mm frame Suitable for surface and flush mounting.

It is made of metal components with halogen-free thermoplastic insulation and thermoset trim. To clean properly, it is recommended to use a soft, dry cloth and avoid the use of strong chlorine-containing substances.

For this part, it is possible to replace the finish of the supplied rocker. There are a total of 7 other finishes available!

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Possibility of substituting the finish of the rocker supplied with a different one. 7 additional finishes available.

  • Finish

    White

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2073

Logistics Information
  • Product height

    45.5 MMT

  • Product width

    38.1 MMT

  • Product length

    45.5 MMT

  • Product volume

    78.877 MMQ

  • Product net weight

    0.036 KGM

  • Product gross weight

    0.036 KGM

  • Product EAN

    8421053251935

  • Packaging quantity

    10

  • Packaging height

    53 MMT

  • Packaging width

    105 MMT

  • Packaging length

    220 MMT

  • Packaging volume

    1.224 DMQ

  • Packaging net weight

    0.36 KGM

  • Packaging gross weight

    0.344 KGM

  • Packaging EAN

    8421053035573
