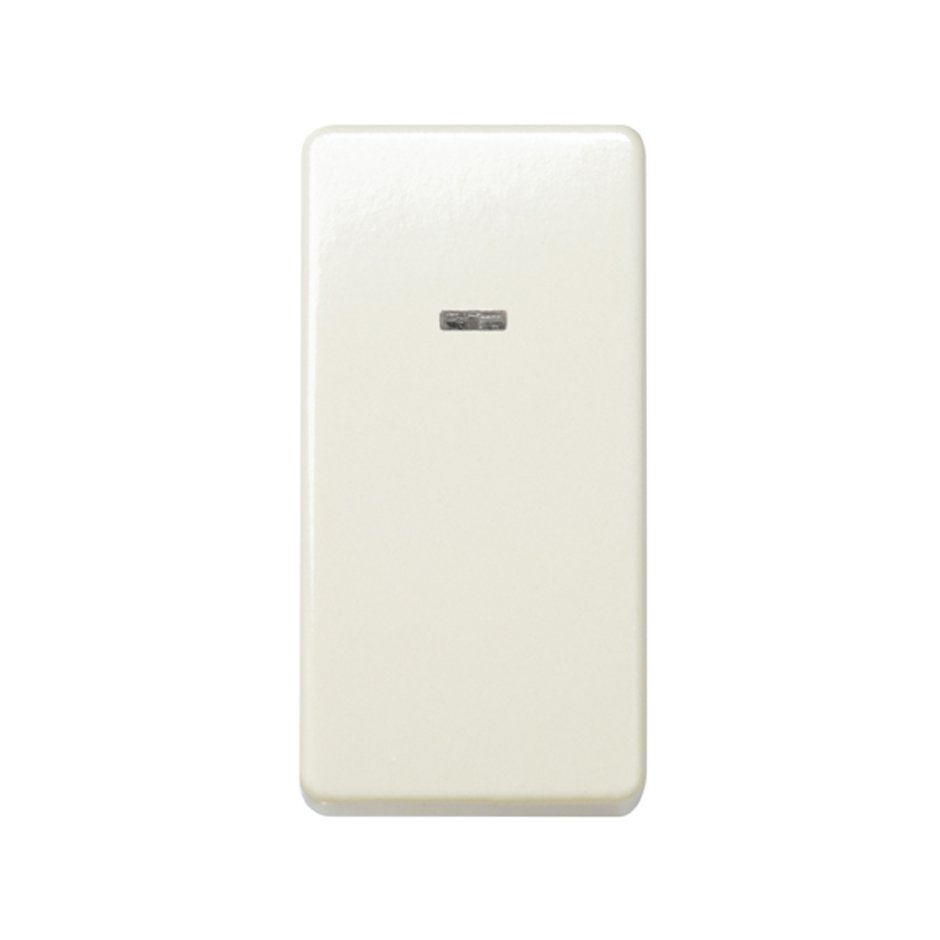

2-way switch with pilot light 10AX 250V~ Simon 27 Play ivory front view

2-way switch with pilot light 10AX 250V~ Simon 27 Play ivory front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27202-61

2-way switch 10AX 250V~ for half element with built-in pilot light and fast terminal connection system ivory Simon 27 Play

Price/Unit
€13.96
Packaging quantity
20 Units

Available downloads

Data sheet

27202-61.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

2-way switch with 10 AX current capacity and a power of 250 V~ medium element with incorporated pilot light and fast-terminal connection system with an ivory finish belonging to the Simon 27 Play series, this collection means you can install the best electronic functions in your home to control every corner of your home at your leisure, among the most outstanding functions are: Adjustment and control of lighting, programming and temperature control or centralization of blinds.

Its installation has reduced the time required to carry it out thanks to the fast-terminal connection system located on the same 2-way switch. It can also be combined with the reference 2700802-037 in case of replacement of indicator light. And there is even more to its installation because you have two ways of carrying out the installation by surface-mounted or to be recessed both are suitable to perform the installation.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Can be combined with article 2700802-037 if replacing the light indicator.

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    0.55 mA

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    Half element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal, American, Small spaces and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2055

Logistics Information
  • Product volume

    1229865 MMQ

  • Product net weight

    0.028 KGM

  • Product gross weight

    0.028 KGM

  • Packaging quantity

    20

  • Packaging height

    53 MMT

  • Packaging width

    105 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    1229865 MMQ

  • Packaging net weight

    0.56 KGM

  • Packaging gross weight

    0.555 KGM

  • Packaging EAN

    8421053035948
