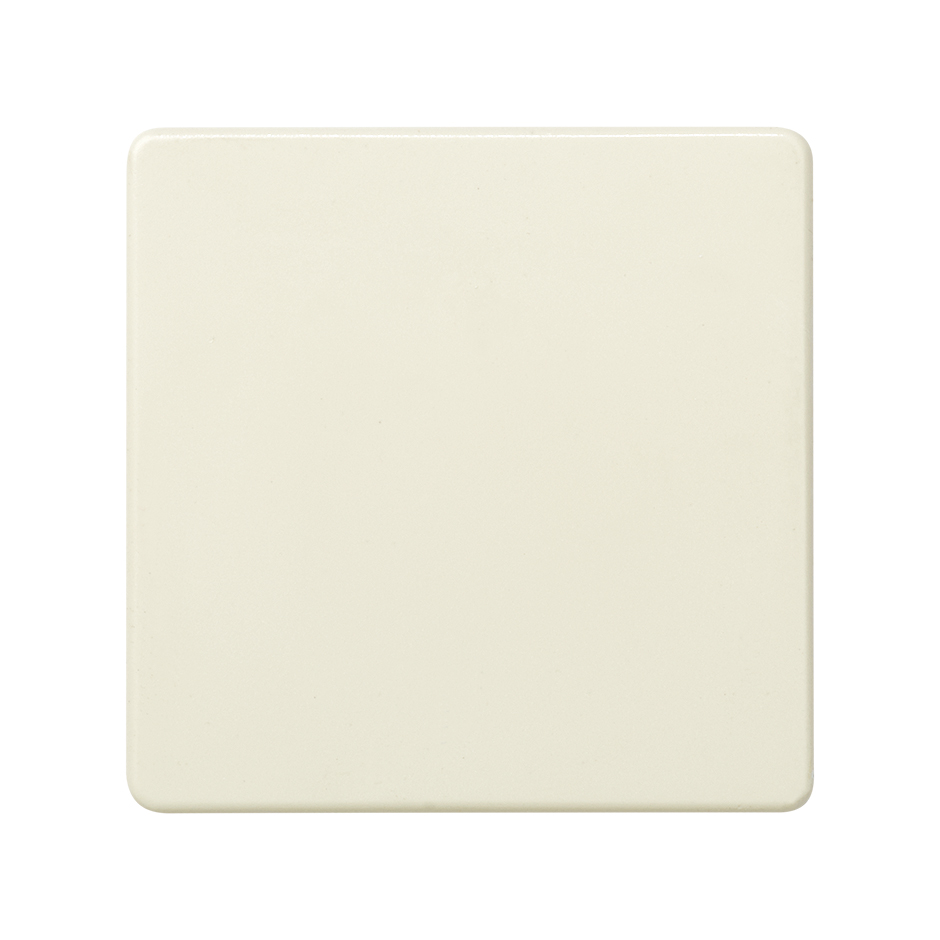

2-way switch 10AX 250V~ Simon 27 Play ivory front view

2-way switch 10AX 250V~ Simon 27 Play ivory front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27201-62

2-way switch 10AX 250V~ with fast terminal connection system ivory Simon 27 Play

Price/Unit
€5.25
Packaging quantity
10 Units

Available downloads

Data sheet

27201-62.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

2-way switch with a current of 10 AX and a power of 250 V~ that includes a fast-terminal connection system, manufactured in ivory colour and belonging to the Simon 27 Play series. If you want to find the product or a similar or compatible component you can go to the category of "control mechanisms", it has a tilting operation, its installation is comfortable, safe and fast. You will have the option of replacing the finish of the supplied rocker with another seven additional finishes available in the Simon 27 Play series.

It is suitable for surface-mounting or recess which ensures a very wide opportunity when installing it, can work perfectly in a temperature range of 5 º C to 40 º C thanks to the metal insulating components with which the part is made. It also complies regulation EN 60669-1: 1999 + A1: 2002 + A2: 2008 + EN 50581: 2050, which allows it to be used in homes, always offering maximum security and performance.

To keep it as new is very simple, you will simply have to use a soft cloth without corrosive liquids and it will shine without damaging any functional or design features.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Possibility of substituting the finish of the rocker supplied with a different one. 7 additional finishes available.

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product height

    45.5 MMT

  • Product width

    38.1 MMT

  • Product length

    45.5 MMT

  • Product volume

    0.079 DMQ

  • Product net weight

    0.024 KGM

  • Product gross weight

    0.032 KGM

  • Product EAN

    8421053251751

  • Packaging quantity

    10

  • Packaging height

    53 MMT

  • Packaging width

    160 MMT

  • Packaging length

    220 MMT

  • Packaging volume

    1.866 DMQ

  • Packaging net weight

    0.24 KGM

  • Packaging gross weight

    0.319 KGM

  • Packaging EAN

    8421053035511
