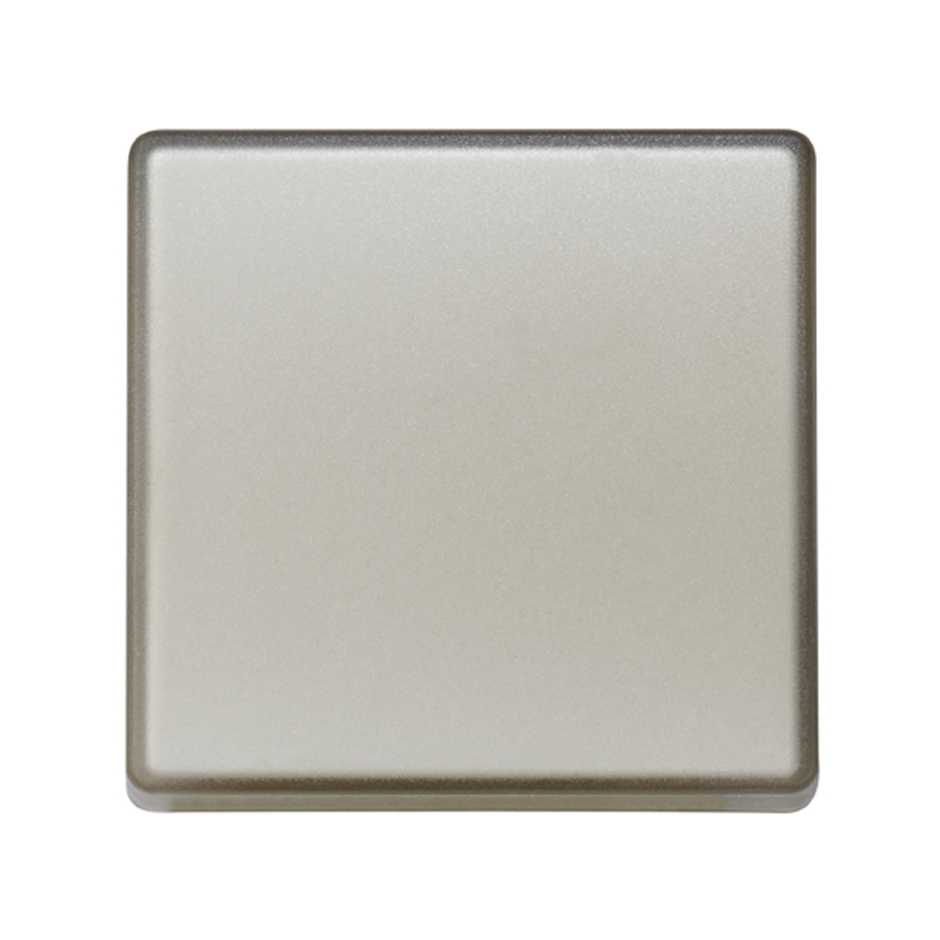

Rocker switches Simon 27 Play translucent grey front view

This image represents the combined solution of different references

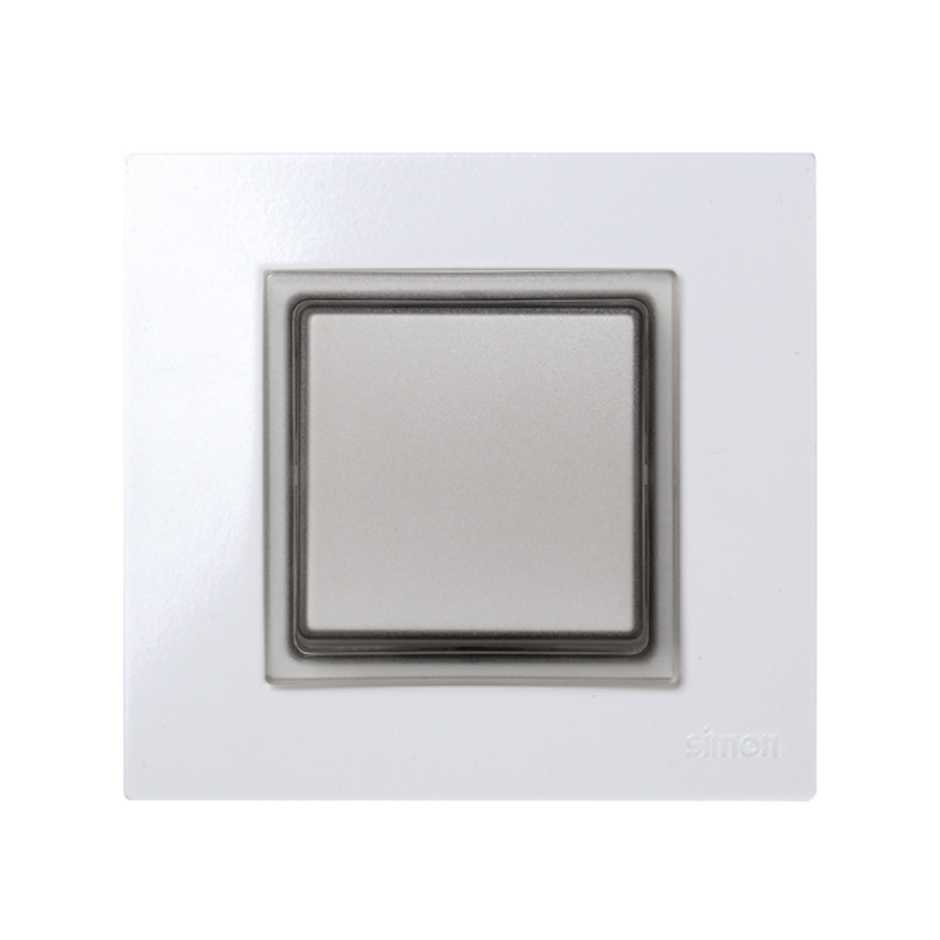

Rocker switches Simon 27 Play translucent grey front view

This image represents the combined solution of different references

Ref
2720010-112

Rocker for switches translucent grey Simon 27 Play

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
2720010-112-datasheet-en.pdf
Product declaration

  1. UES0005.pdf [433KB]

Drawing files

  1. Esquematico_2720010-112_2.pdf []

Certificación CE

AENOR 030-002232 20230207.pdf

Do you need advice?
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

<p class=>Intermediate switch 10AX 250V~ Simon 27 Play ivory front view</p>
Ref
27251-62
Intermediate switch 10AX 250V~ with fast terminal connection system ivory Simon 27 Play
<p class=>2-way switch 16AX 250V~ Simon 27 Play ivory front view</p>
Ref
27211-62
2-way switch 16AX 250V~ with fast terminal connection system ivory Simon 27 Play
<p class=>2-way switch 10AX 250V~ Simon 27 Play ivory front view</p>
Ref
27201-62
2-way switch 10AX 250V~ with fast terminal connection system ivory Simon 27 Play
<p class=>Single-pole switch 10AX 250V~ Simon 27 Play ivory front view</p>
Ref
27101-62
Single-pole switch 10AX 250V~ with fast terminal connection system ivory Simon 27 Play
<p class=>2-way switch 10AX 250V~ Simon 27 Play grey front view</p>
Ref
27201-67
2-way switch 10AX 250V~ with fast terminal connection system grey Simon 27 Play
<p class=>Intermediate switch 10AX 250V~ Simon 27 Play white front view</p>
Ref
27251-65
Intermediate switch 10AX 250V~ with fast terminal connection system white Simon 27 Play
<p class=>2-way switch 16AX 250V~ Simon 27 Play white front view</p>
Ref
27211-65
2-way switch 16AX 250V~ with fast terminal connection system white Simon 27 Play
<p class=>2-way switch 10AX 250V~ Simon 27 Play white front view</p>
Ref
27201-65
2-way switch 10AX 250V~ with fast terminal connection system white Simon 27 Play
<p class=>Single-pole switch 10AX 250V~ Simon 27 Play white front view</p>
Ref
27101-65
Single-pole switch 10AX 250V~ with fast terminal connection system white Simon 27 Play
<p class=>Double-pole switch 16AX 250V~ Simon 27 Play ivory front view</p>
Ref
27133-62
Double-pole switch 16AX 250V~ with screw terminal connection system ivory Simon 27 Play
<p class=>Double-pole switch 16AX 250V~ Simon 27 Play white front view</p>
Ref
27133-65
Double-pole switch 16AX 250V~ with screw terminal connection system white Simon 27 Play
Product Information
Downloads
Support

Rocker for commandment translucent grey in colour, from the Simon 27 Play series and for control mechanisms.

It has an element and two modules and is perfect for both to be recessed and surface-mounted, in places with a temperature of between 5 and 40ºC, although it can withstand extreme temperatures of -25 to 50ºC, approximately.

It measures 22.5 x 45 mm and complies with applicable European standards EN 60669-1: 1999 + A1: 2002 + A2: 2008 + EN 50581: 2012.

This rocker is made of thermoplastic, a material that is very easy to clean, as you will only have to wipe it regularly with so high a dry and soft cloth for never forget you to cloths or abrasive cleaners containing chlorine, as they could cause the rocker is estropeara and not worked correctly.

This reference only includes the embellishing rocker, so if you want to complete the function, you must purchase a mechanism and replace the rocker indicated.

Basic information

  • Compatibility

    Simon 27 Play mechanisms

  • Remarks

    This article includes only the trim rocker. To complete the function you need to purchase a mechanism and replace the rocker included.

  • Finish

    Translucent grey

  • Material

    Plastic

  • Packaging contents

    Single rocker

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    45 x 45

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2012

Logistics Information

  • Product height

    11.13MMT

  • Product width

    45.5MMT

  • Product length

    44.7MMT

  • Product volume

    0.023DMQ

  • Product net weight

    0.011KGM

  • Product gross weight

    0.018KGM

  • Product EAN

    8421053075463

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    81MMT

  • Packaging length

    91MMT

  • Packaging volume

    0.597DMQ

  • Packaging net weight

    0.055KGM

  • Packaging gross weight

    0.092KGM

  • Packaging EAN

    8421053075463
