Rocker for switches translucent red Simon 27 Play

REFERENCE NO.: 2720010-110

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

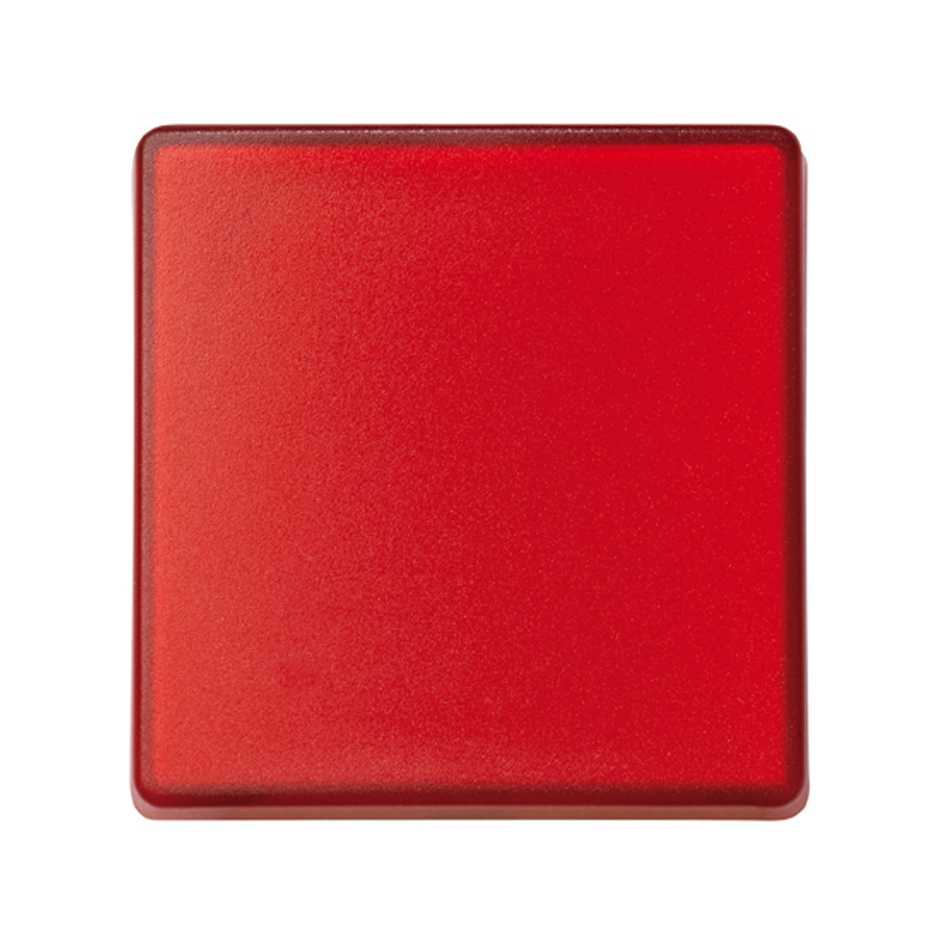

Rocker switches Simon 27 Play translucent red front view


This image represents the combination of different references

Rocker switches Simon 27 Play translucent red packaging


SERIES: Simon 27 Play FINISH: Translucent red MATERIAL: Plastic DIMENSIONS: 45x45 mm Switches

27101-62

27101-65

27133-62

27133-65

27201-62

27201-65

Product description

This rocker for control mechanisms is a translucent red colour and corresponds to the Simon 27 Play series, a collection of very dynamic electrical mechanisms designed to innovate in the home. Is only includes the embellishing rocker, so it is necessary to purchase a mechanism and replace the rocker in question to complete the function, the piece is suitable to be recessed and is manufactured in thermoplastic in compliance with the current regulation. It has dimensions of 45x45 mm and does not include any engraving. The manufacturer recommends installing the rocker in spaces whose temperature is between 5 and 40º for better performance. The Simon 27 Play series offers the opportunity to decorate a wall without painting or decorating it. Its mechanisms by themselves are in charge of giving it that fresh and innovative air. This is a new formula to customize your walls.

BASIC INFORMATION

Series: Simon 27 Play

Version: Single

Finish: Translucent red

Indicator function: No

Symbol: No

No. of possible elements: 1 element

Number of modules: 2 modules

Compatibility: Simon 27 Play mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Single rocker

Remarks: This article includes only the trim rocker. To complete the function you need to purchase a mechanism and replace the rocker included.

TECHNICAL INFORMATION

Dimensions: 45x45 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 81.000

Depth: 91.000

Box volume: 0.597

Box volume measurement unit: CDM

Net weight of box: 0.055

Unit weight of box: KGM

EAN code: 8421053075432

Available in multiple box: No

Available on pallet: No
