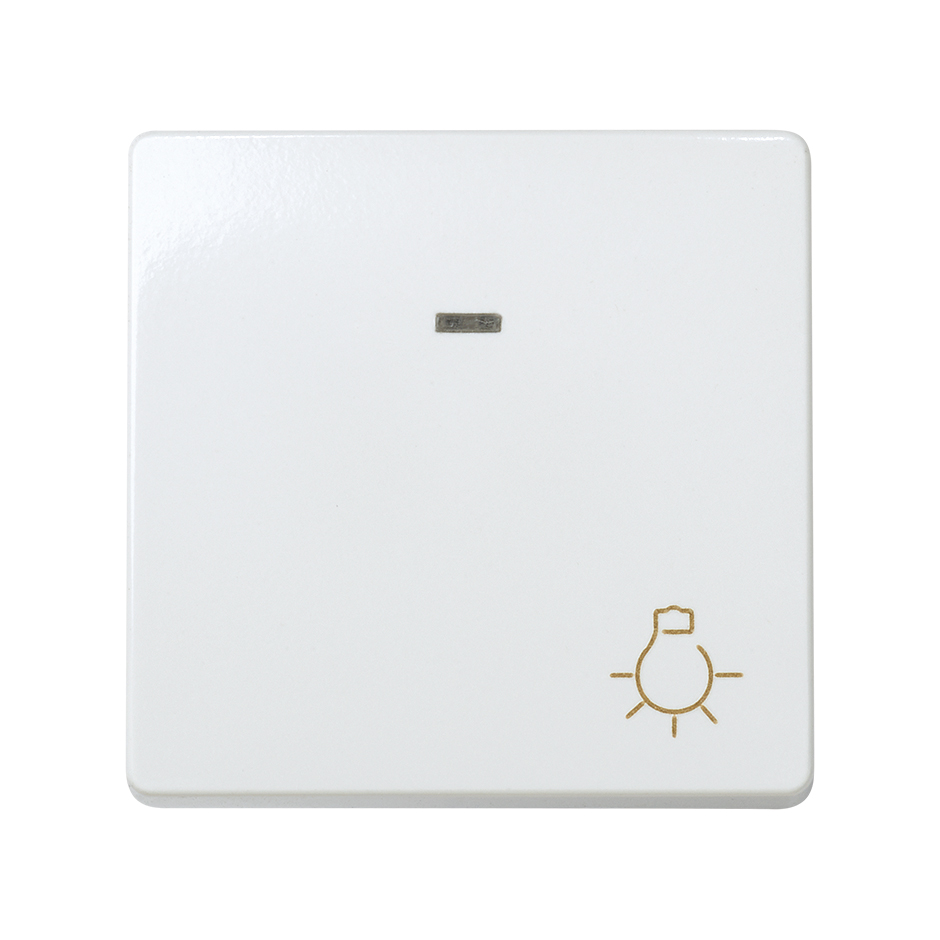

Push-button switch with light symbol and light indicator 10A 250V~ Simon 27 Play white front view

Push-button switch with light symbol and light indicator 10A 250V~ Simon 27 Play white front view

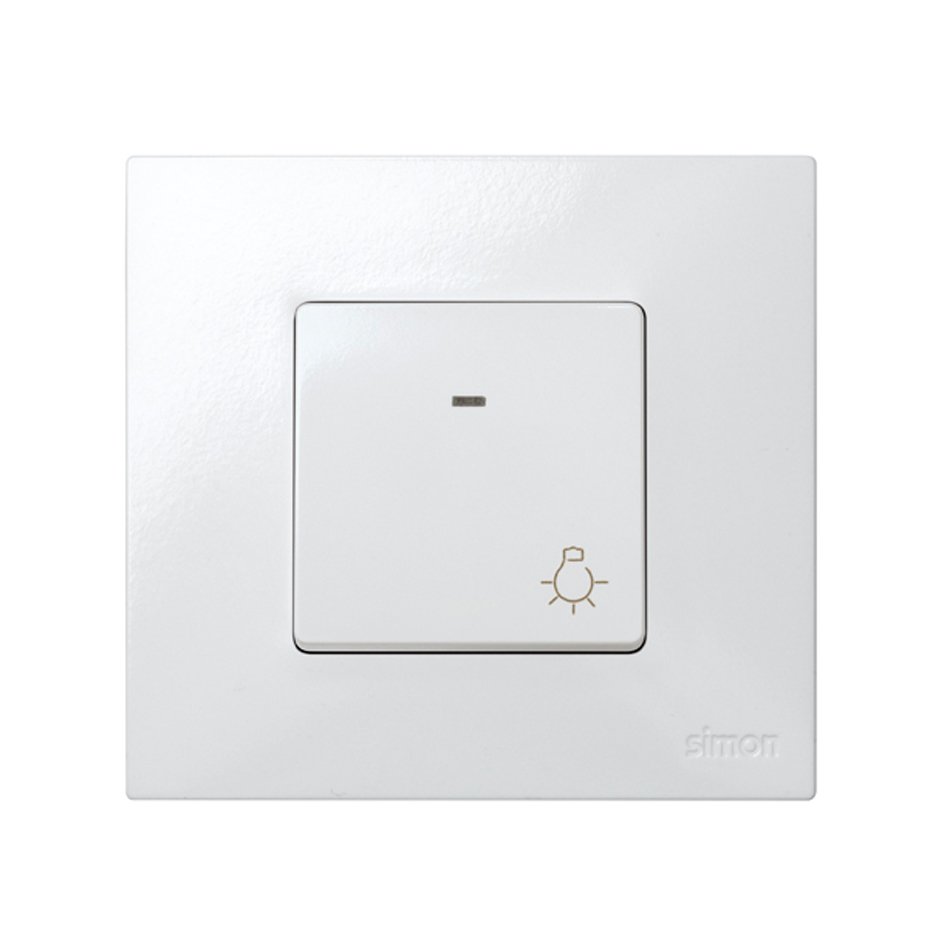

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27161-65

Push-button switch with light symbol 10A 250V~, built-in light indicator and fast terminal connection system white Simon 27 Play

Price/Unit
€15.23
Packaging quantity
10 Units

Available downloads

Data sheet

27161-65.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

Push-button switch with light symbol engraving that requires an intensity of 10 A and a power of 250 V~, incorporates luminous and has for easy installation the fast-terminal connection system incorporated in the mechanism. To get the push-button switch you can find it in the category of "control mechanisms" of the Simon 27 Play series, it is suitable for surface mounting or flush mounting and can also be combined with the reference 2700802-064 in case of replacement of the indicator light.

Enjoy decorating with the endless combinations you can perform with the rockers and covers of the Simon 27 Play collection, with 4 ranges to choose from: Colour, arctic, metal or extreme. Choose the finish that best suits every corner of your home to make it to your taste. You also have transparent customizable sleeves in which you can capture any image, the one you like most to bring personalization to the extreme.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Can be combined with article 2700802-064 if replacing the light indicator.

  • Finish

    White

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    0.55 mA

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2048

Logistics Information
  • Product net weight

    0.033 KGM

  • Product gross weight

    0.033 KGM

  • Product EAN

    8421053251737

  • Packaging quantity

    10

  • Packaging height

    53 MMT

  • Packaging width

    105 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    1229865 MMQ

  • Packaging net weight

    0.33 KGM

  • Packaging gross weight

    0.32 KGM

  • Packaging EAN

    8421053035894
