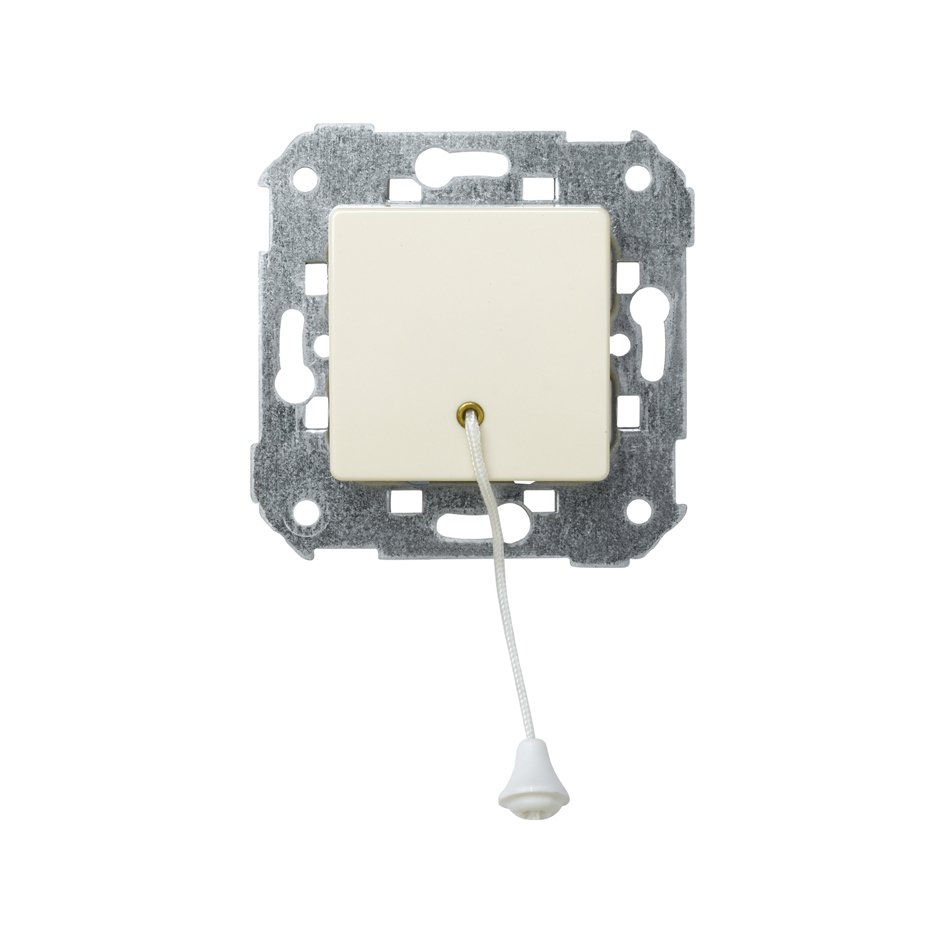

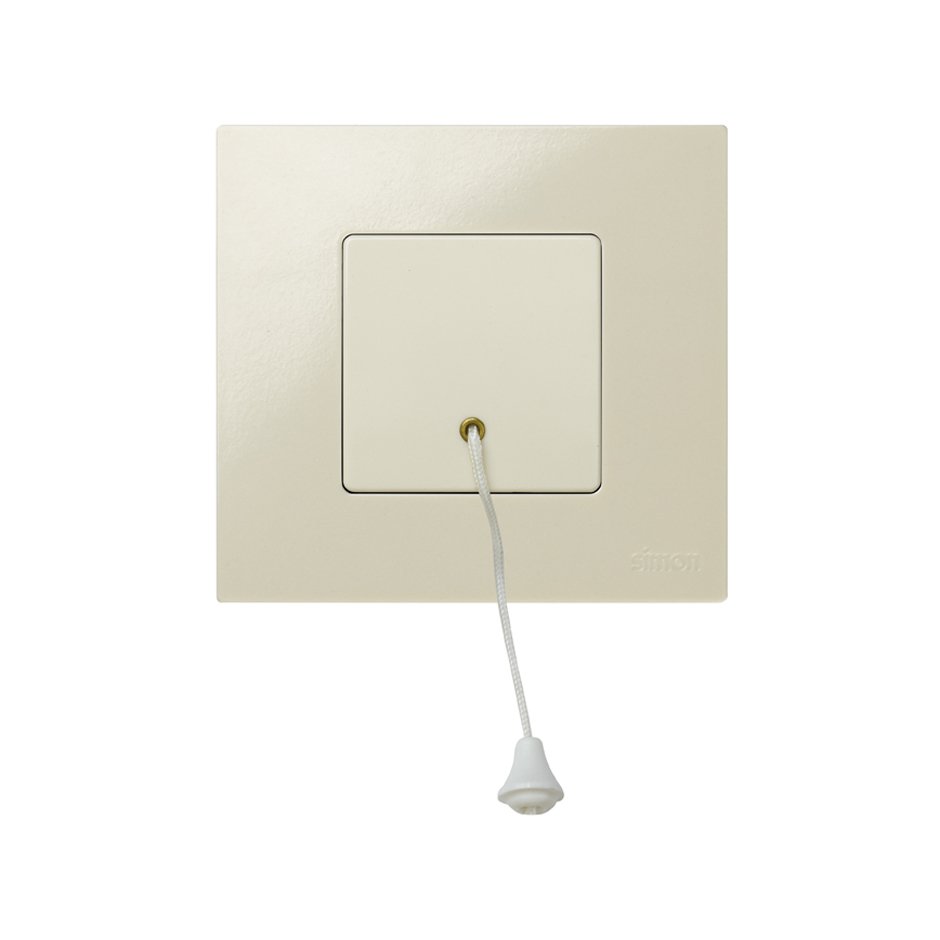

Pull-cord push-button switch 10A 250V~ Simon 27 Play ivory front view

Pull-cord push-button switch 10A 250V~ Simon 27 Play ivory front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27153-62

Pull-cord push-button switch 10A 250V~ with fast terminal connection system white Simon 27 Play

Price/Unit
€16.14
Packaging quantity
10 Units

Available downloads

Data sheet

27153-62.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon 82 Concept

Simon Aqua

Simon 27 Play

Product Information

It is a push-button switch handler push buttons 10 AX 250V~ with quick terminal connection system and finished in white, ivory, which is included in the Simon 27 Play series, the piece is suitable for surface and flush mounting and has dimensions of 45x45 mm in terms of its manufacturing material, it consists of metal components with halogen-free thermoplastic insulation and thermoset trim in.

Thanks to its terminal connection system, there is no need to strip cables at the time of its installation, making the task and by doing it much more secure. This article is compatible with the frames of the series Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralizations and Simon 44 Aqua.

As for its maintenance, it is recommended to clean this push-button switch with a soft, dry cloth and avoid abrasive cleaning products containing chlorine.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

Logistics Information
  • Product net weight

    0.063 KGM

  • Product gross weight

    0.063 KGM

  • Product EAN

    8421053251645

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    165 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3.017 DMQ

  • Packaging net weight

    0.63 KGM

  • Packaging gross weight

    0.625 KGM

  • Packaging EAN

    8421053081488
