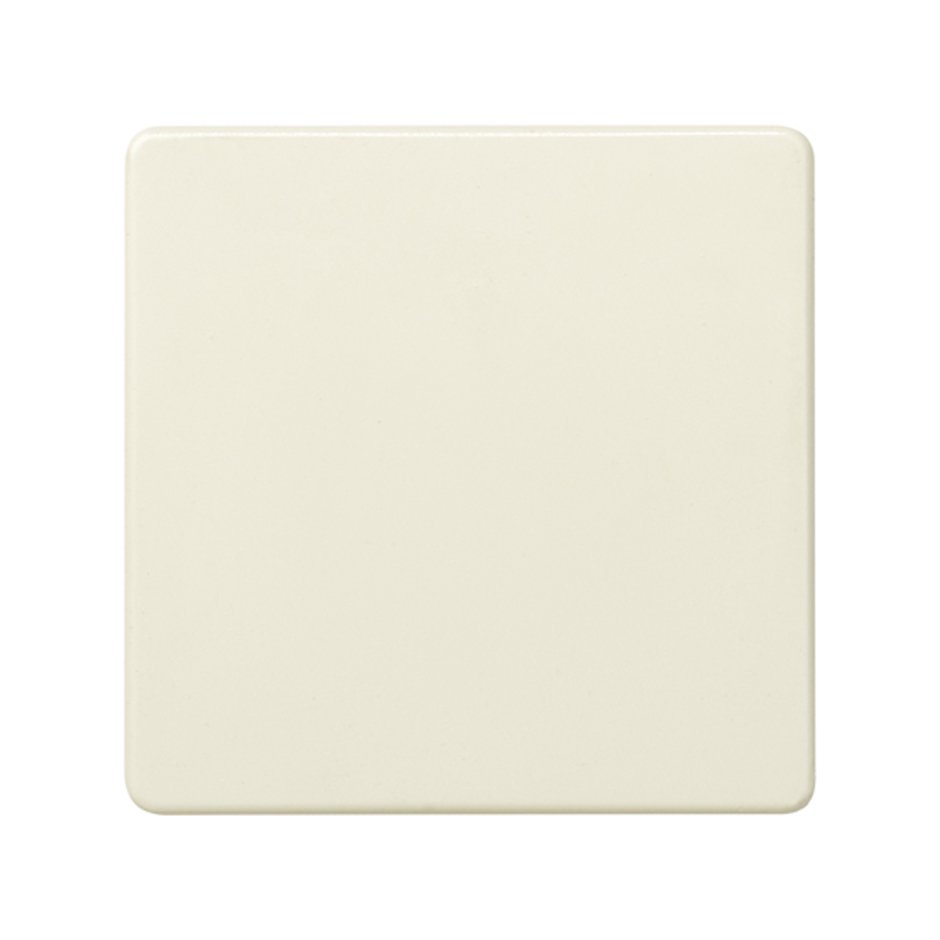

Double-pole switch 16AX 250V~ Simon 27 Play ivory front view

This image represents the combined solution of different references

Ref
27133-62

Double-pole switch 16AX 250V~ with screw terminal connection system ivory Simon 27 Play

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

two-pole switch of 16AX and 250V of voltage with screw terminal connection system in ivory colour and belonging to the Simon 27 Play series.

Its type of operation is tilting and is a double-pole switch suitable for installation both in surface-mounted and recessed way.

It has 2 modules and supports a cable section of 1.5 to 2.5 mm with a stripped 11 mm, it also, you can install perfectly in rooms with a temperature of between 5 and 40ºC, although it is also perfectly, in places where the temperature is place between -25 to 75ºC.

This switch is made of metal components with halogen-free insulation and thermoset trim and its dimensions are 45x45mm.

To clean this switch you just need a soft, dry cloth and forget you to use any abrasive cleaner or abrasive cloths containing chlorine.

The Simon 27 Play range of products, formed by covers, frames and rockers with mechanisms, allows you to enjoy decorating, as it is a revolutionary concept that allows you to take the initiative in redecorating your own spaces.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    16 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2024

Logistics Information
  • Product height

    36.5MMT

  • Product width

    45.7MMT

  • Product length

    46.3MMT

  • Product volume

    0.077MMQ

  • Product net weight

    0.039KGM

  • Product gross weight

    0.048KGM

  • Product EAN

    8421053251522

  • Packaging quantity

    10

  • Packaging height

    53MMT

  • Packaging width

    160MMT

  • Packaging length

    220MMT

  • Packaging volume

    1.866DMQ

  • Packaging net weight

    0.39KGM

  • Packaging gross weight

    0.476KGM

  • Packaging EAN

    8421053036044
