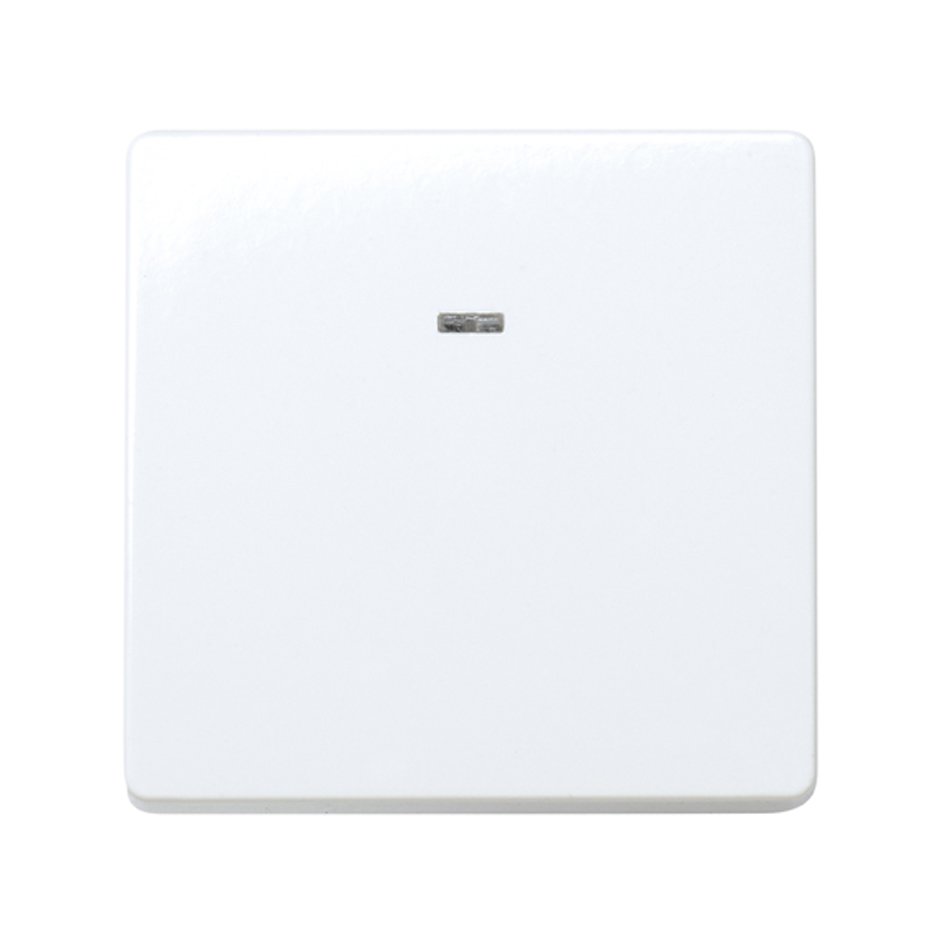

Single-pole switch with pilot light 10AX 250V~ Simon 27 Play white front view

Single-pole switch with pilot light 10AX 250V~ Simon 27 Play white front view

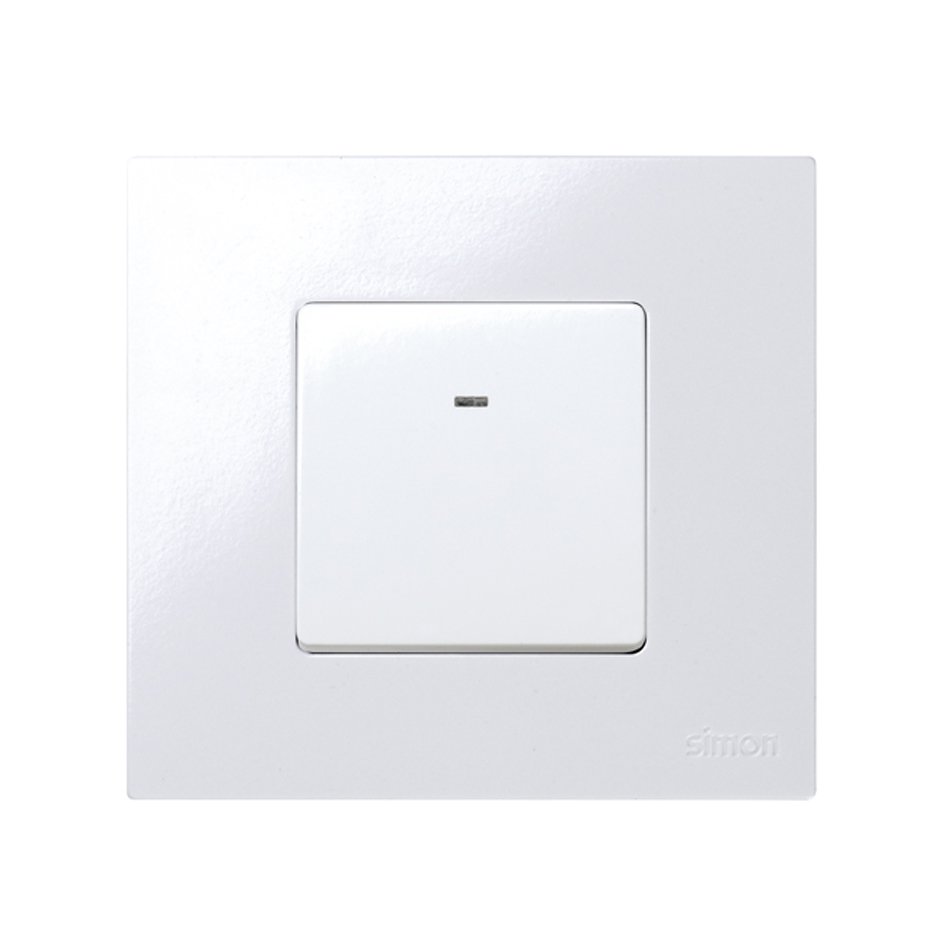

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27102-65

Single-pole switch 10AX 250V~ with built-in pilot light and fast terminal connection system white Simon 27 Play

Price/Unit
€14.16
Packaging quantity
10 Units

Available downloads

Data sheet

27102-65.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

The is single-pole switch with pilot light and fast-terminal connection system in white finish of the Simon 27 Play range, with an intensity of 10 AX and a voltage of 250 V~, it has a tilting operation, can be combined with the reference 2700802-037 in case of replacement of indicator light. In the individual version, the number of elements is one and 2 module comes with a signaling function which consumes 0.55 mA and without engraving on the rocker. For its installation, it will be enough to apply pressure or place on the surface. The wire section admitted is from 1.5 to 2.5 mm and has 11 mm of bare wire. The material is socket of metal components with halogen-free thermoplastic insulation and thermoset trim, being able to oscillate between 5 and 40º, and can support up to a maximum of between -25 and 50º C. The dimensions of the switch are 45x45 mm, although it is available in other sizes and colors to keep the piece clean, use a soft and dry cloth, under no circumstances be poured abrasive cloths or cleaners with high chlorine content. Complies with the regulation EN 60669-1: 1999 + A1: 2002 + A2: 2008 + EN 50581: 2019

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Can be combined with article 2700802-037 if replacing the light indicator.

  • Finish

    White

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    0.55 mA

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2019

Logistics Information
  • Product volume

    1229865 MMQ

  • Product net weight

    0.034 KGM

  • Product gross weight

    0.034 KGM

  • Product EAN

    8421053035931

  • Packaging quantity

    10

  • Packaging height

    53 MMT

  • Packaging width

    105 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    1229865 MMQ

  • Packaging net weight

    0.34 KGM

  • Packaging gross weight

    0.335 KGM

  • Packaging EAN

    8421053035931
