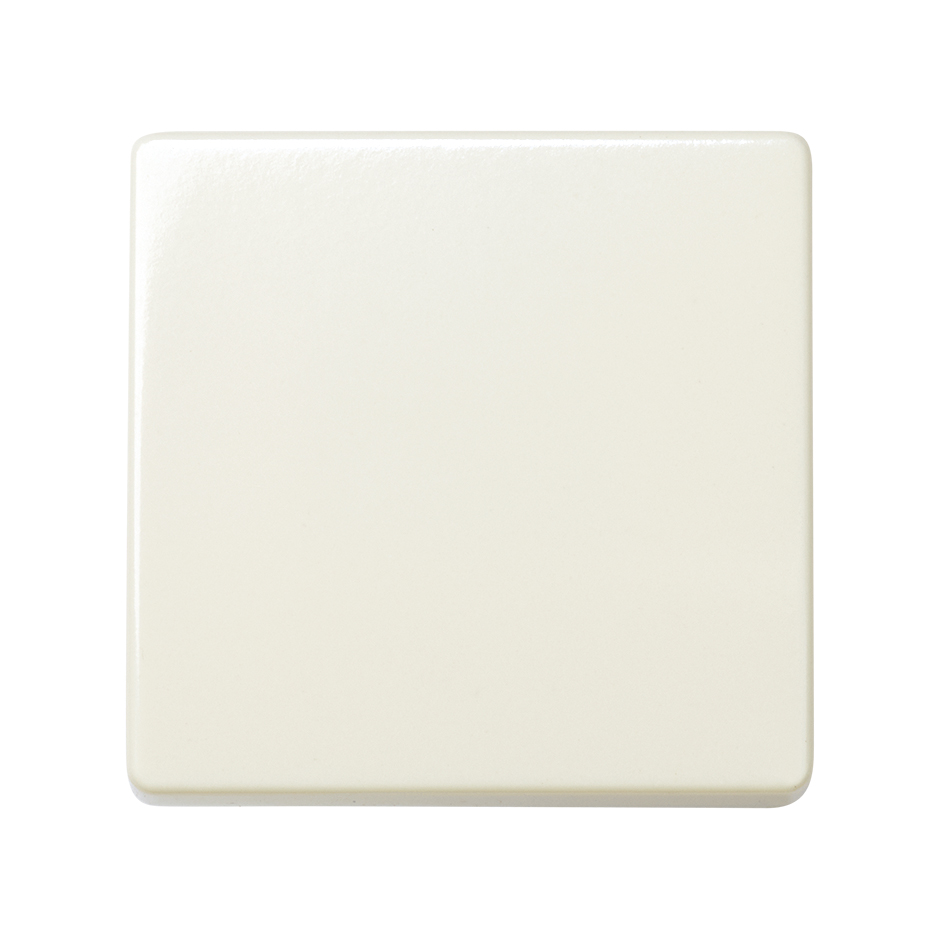

Single-pole switch 10AX 250V~ Simon 27 Play ivory front view

Single-pole switch 10AX 250V~ Simon 27 Play ivory front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
27101-62

Single-pole switch 10AX 250V~ with fast terminal connection system ivory Simon 27 Play

Price/Unit
€4.67
Packaging quantity
10 Units

Available downloads

Data sheet

27101-62.pdf

Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

Design and innovation tandem form the perfect in the single-pole switch of the Simon 27 Play collection, with finishes in stylish ivory colour, this rocker switch is composed of 2 modules and has a size of 45 x 45 mm, it facilitates the integration of the set in all types of spaces and decorative styles.

The convenience of a quick terminal connection, adds an installation suitable for recessed or surface-mounted, compatible with power supply of 250 Volts and 10 AX current with a cross-cable section cross-section of 1.5 to 2.5 mm and stripping of 11 mm

Made of halogen-free thermoplastic and a thermoset trim, it protects the room is a possible fire, to prevent the flame spread and reduce the level of toxicity by smoke.

Simon 27 Play maximize the versatility of single-pole switch to replace the finish of the supplied rocker for one of the 7 additional.

Innovation, functionality and versatility in the entire range of switches Simon 27 Play.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Possibility of substituting the finish of the rocker supplied with a different one. 7 additional finishes available.

  • Finish

    Ivory

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal, American and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2013

Logistics Information
  • Product height

    45.5 MMT

  • Product width

    38.1 MMT

  • Product length

    45.5 MMT

  • Product volume

    0.079 DMQ

  • Product net weight

    0.013 KGM

  • Product gross weight

    0.032 KGM

  • Product EAN

    8421053251423

  • Packaging quantity

    10

  • Packaging height

    53 MMT

  • Packaging width

    160 MMT

  • Packaging length

    220 MMT

  • Packaging volume

    1.866 DMQ

  • Packaging net weight

    0.13 KGM

  • Packaging gross weight

    0.315 KGM

  • Packaging EAN

    8421053035474
