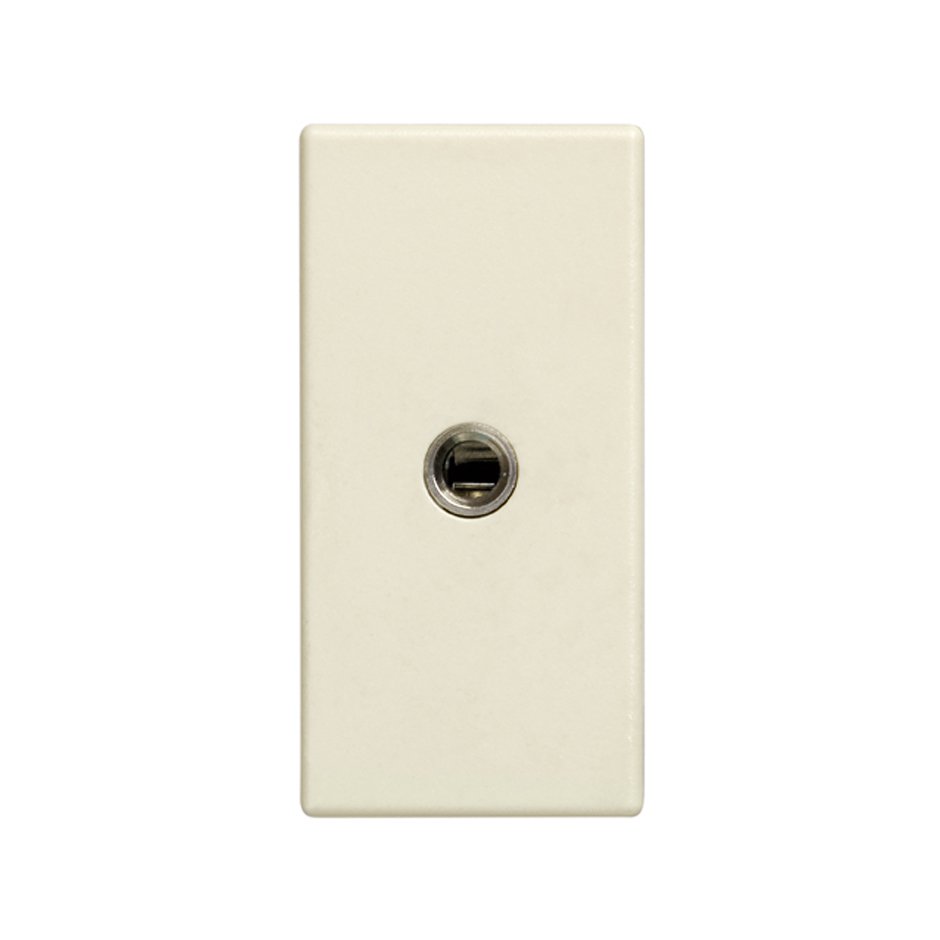

Mini jack connector Simon 27 Play ivory front view

Mini jack connector Simon 27 Play ivory front view

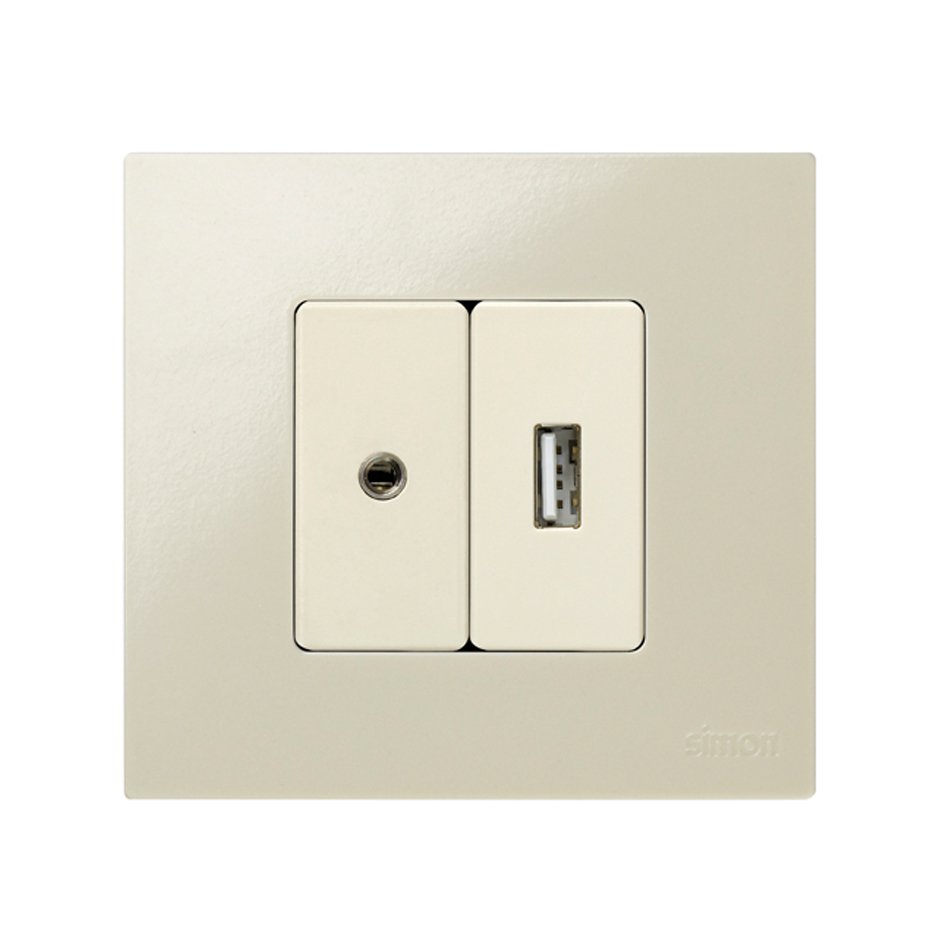

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
2701092-031

Mini jack connector for half element ivory Simon 27 Play

Price/Unit
€26.73
Packaging quantity
1 Unit

Available downloads

Data sheet

2701092-031.pdf

Installation manual
Product declaration
Outstanding Features
Series
Simon 27 Play
Series Compatibility

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

Product Information

We present you this connector with half element mini-jack and ivory finish belonging to the Simon 27 Play series and has a single module.

The quality of the materials of manufacture is ensured: This connector has different components of the highest quality and with halogen-free insulation, as well as a thermoplastic trim.

It has a screw terminal connection, its dimensions are 22,5x45 millimetres. Section of wire cross-section of 0.2 to 0.5 millimetres; stripping of wire to 5 millimetres. It is suitable for surface-mounted and also to be recessed.

Another interesting significant with regard to its installation, it is that the maximum recommended length of cabling does not exceed the 30 meters to ensure an optimal operation, for more information, so that the user please refer to the product instruction sheet.

On maintenance, it is important to use a soft cloth moistened in soapy water is sufficient (with a little) must not to use abrasive cleaners with chlorine).

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations and Simon 44 Aqua frames

  • Remarks

    Recommended maximum cable length: 30 metres. For more information see the product instruction sheet.

  • Finish

    Ivory

Technical information
  • Market available

    CE

  • Number of connectors

    1

  • Number of contacts

    3

  • Number of wires

    3

  • Cable section admitted (mm)

    From 0,2 to 0,5 mm

  • Connector type

    Mini-Jack

  • Format

    Mini-Jack

  • IP Rating

    IP20

  • Number of possible elements

    Half element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type

    3.5 mm

  • Type of mechanism

    Insertion

  • Version

    Single

Installation and maintenance
  • Cable stripping necessary (mm)

    5 mm

  • Installable in flush mount junction box

    Universal, American, Small spaces and Centralisations

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Logistics Information
  • Product net weight

    0.053 KGM

  • Product gross weight

    0.053 KGM

  • Product EAN

    8421053090237

  • Packaging quantity

    1

  • Packaging height

    57 MMT

  • Packaging width

    76 MMT

  • Packaging length

    76 MMT

  • Packaging volume

    0.329 DMQ

  • Packaging net weight

    0.053 KGM

  • Packaging gross weight

    0.053 KGM

  • Packaging EAN

    8421053090237
