Signal light with E10 miniature screw

REFERENCE NO.: 26809-39
R.P.: Price on request
PACKAGING: 10Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  Single
Power supply:  230 V~
Type of terminal connection:  Screw
Indicator function:  Yes
No. of possible elements:  1 element
Claw:  Simon 27
Compatibility:  Simon 28, Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames
Remarks:  It is recommended to use lamps 75802-39 (3 W - 230 V) or 75803-39 (3 W - 24 V)

TECHNICAL INFORMATION

Cable section admitted:  From 1.5 to 2.5 mm
Cable stripping necessary:  11 mm
IP rating:  20
Manufacturing material:  Metallic components with halogen-free thermoplastic insulation
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  UNE-EN 60598-2-2:1997 + UNE EN 60061-1:1996

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  10
Box measurement unit:  MM
Height:  82.000
Wide:  165.000
Depth:  223.000
Box volume:  3017190.000
Box volume measurement unit:  MMQ
Net weight of box:  0.710
Unit weight of box:  KGM
EAN code:  8421053015445
Available in multiple box:  No
Multiple box measurement unit:  MM
Multiple box packaging quantity measurement unit:  UN
Multiple box volume measurement unit:  MM3
Unit weight of multiple box:  KG
Available on pallet:  No

GALLERY

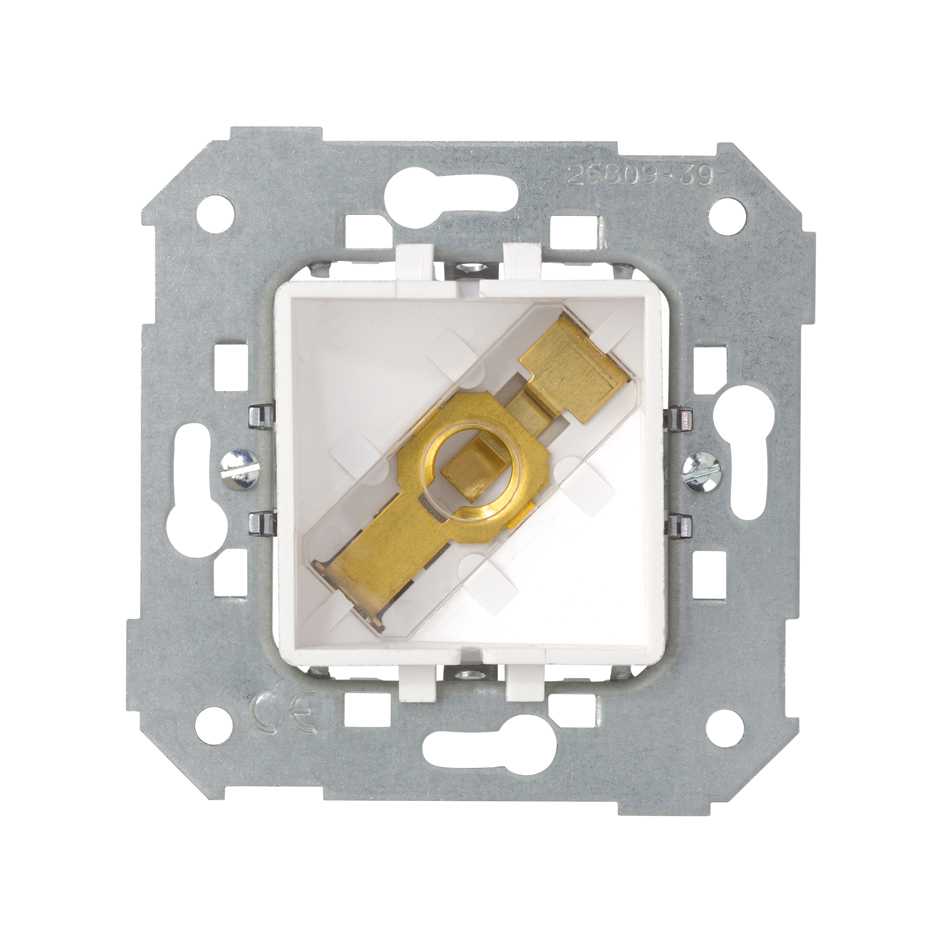

Signal light E10 miniature screw front view
