Switch for card with 2 micro switches and light indicator 250V~

REFERENCE NO.: 26550-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

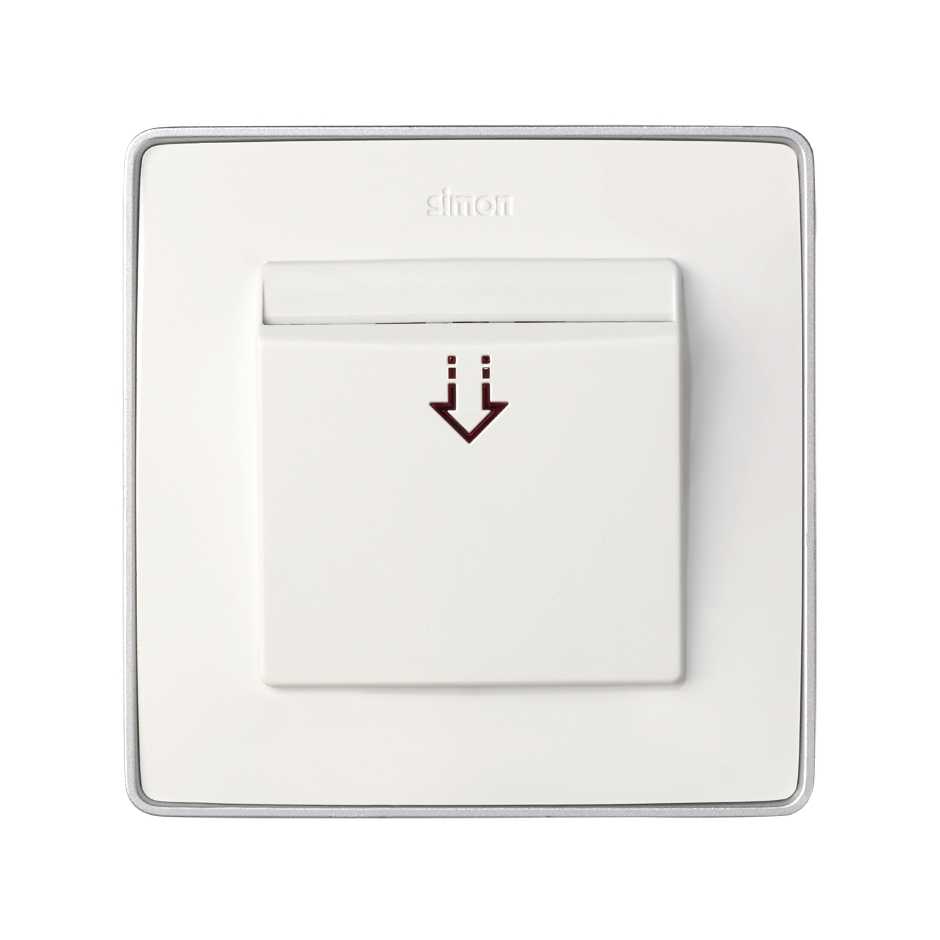

2-way card switch 2 micro switches and light indicator 250V~ front view


This image represents the combination of different references

26550-39-conmutador-de-tarjeta-con-2-microrruptores-e-indicador-luminoso-6-A-250-V-trasera.jpg

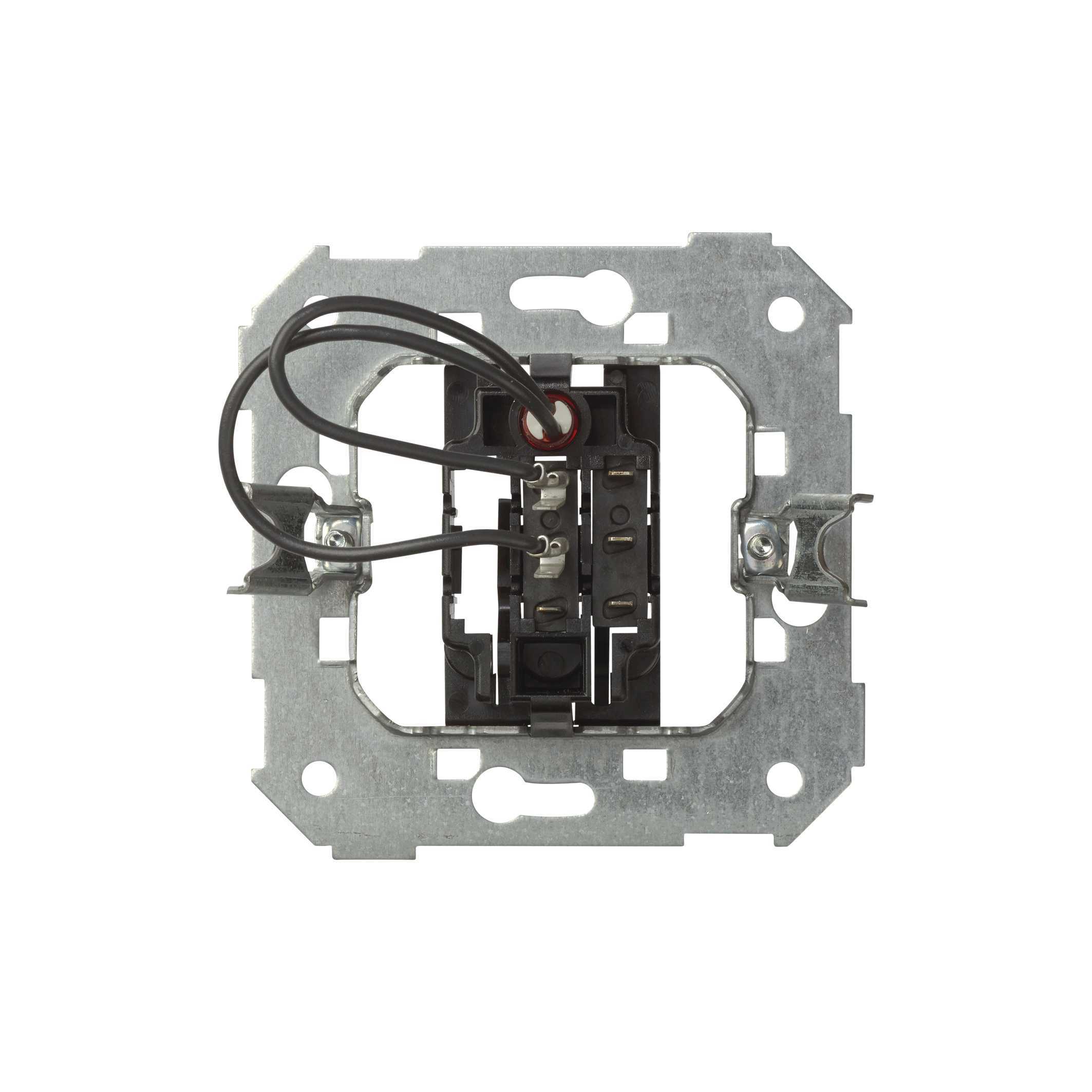

2-way card switch 2 micro switches and light indicator 250V~ rear view

2-way card switch 2 micro switches and light indicator 250V~ packaging

26550-39-conmutador-de-tarjeta-con-2-microrruptores-e-indicador-luminoso-6-A-250-V-frontal_2.jpg

SERIES: Simon 82 POWER SUPPLY: 250 V~ INTENSITY: 10 (1,5 ind.) A TYPE OF TERMINAL CONNECTION: Faston TYPE OF MECHANISM: Card IP RATING: IP20 COMPATIBLE SERIE: Simon 88 Special control switches

82078-93

82078-60

82078-68

82078-61

82078-63

82078-64

Product description

The Simon 82 series includes special control mechanisms, one of the biggest sellers is the 2-way switch for card with 2 micro switches and indicator light. With a current of 6A and voltage of 250V~, this element will give always a solution for every electrical system. It has a welding / Faston terminal connection system, so it is recommended to perform the installation by linking the item to a relay. If not, the maximum current of the 2-way switch is 6A (2 A inductive). 2-way switch mechanisms are installed when a lighting point is activated from multiple locations. Suitable for surface and flush mounting, this piece supports a cable section of 0.5 mm. It has been designed with the best metal components with halogen-free thermoplastic insulation. Its value for money is another of its features, as is the ease of cleaning of its structure to prevent it from deteriorating, besides being manufactured to withstand extreme temperatures.

BASIC INFORMATION

Indicator function: Yes

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 44 Aqua, Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

Installation direction: Vertical and horizontal

Packaging contents: Mechanism

Remarks: A contactor must be installed at the output of the mechanism. If this is not done, the maximum current of the switch is 10 A resistive (1.5 A inductive). It is recommended to protect the faston connectors with a heat shrink sleeve.

Series: Simon 82

Version: Single

Intensity: 10 (1,5 ind.) A

Voltage: 250 V~

Type of terminal connection: Faston

Type of mechanism: Card

TECHNICAL INFORMATION

Cable section admitted: 0.5 mm

IP rating: 20

Manufacturing material: Metal components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190.000

Box volume measurement unit: MMQ

Net weight of box: 0.520

Unit weight of box: KGM

EAN code: 8421053048566

Available in multiple box: No

Available on pallet: No

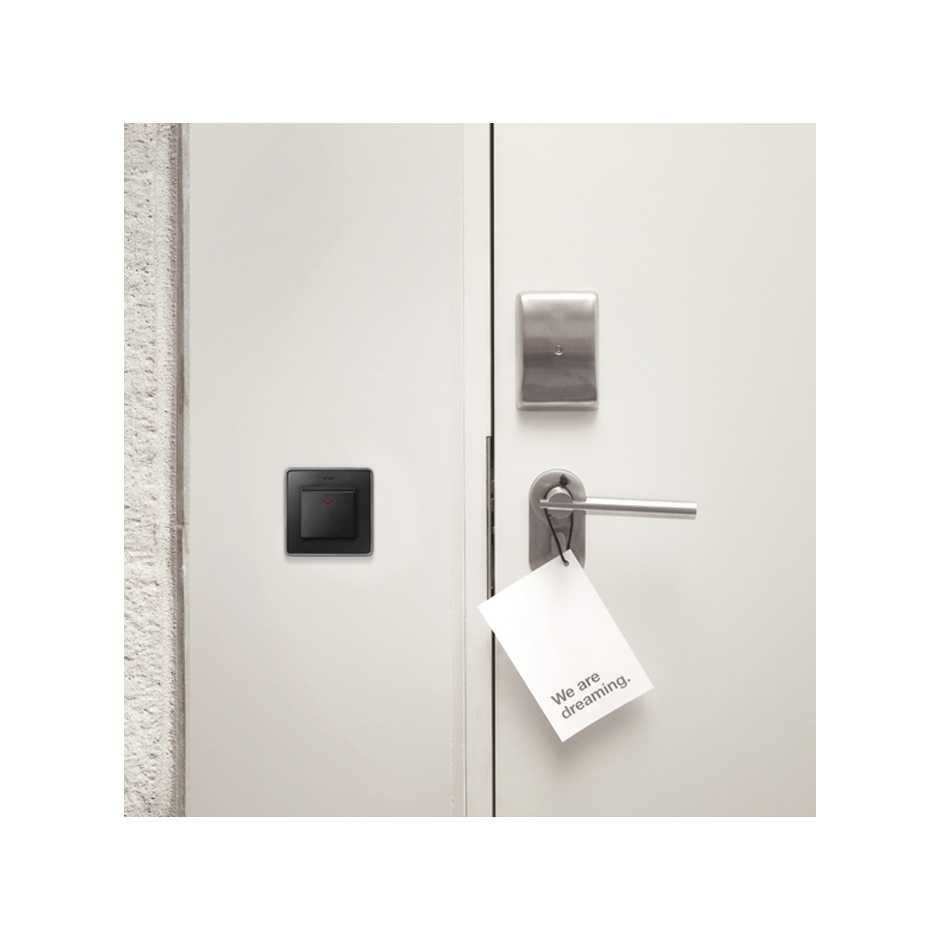

Switch for card application in hotel
