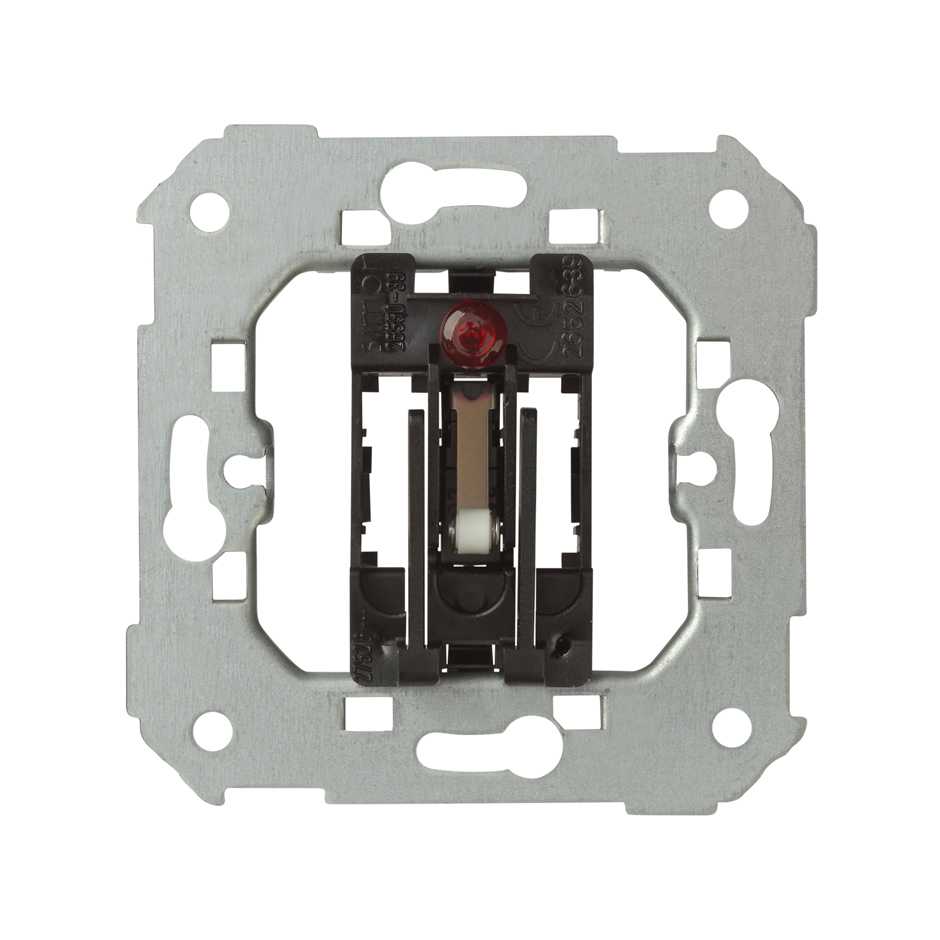

Фронтальный вид

Фронтальный вид

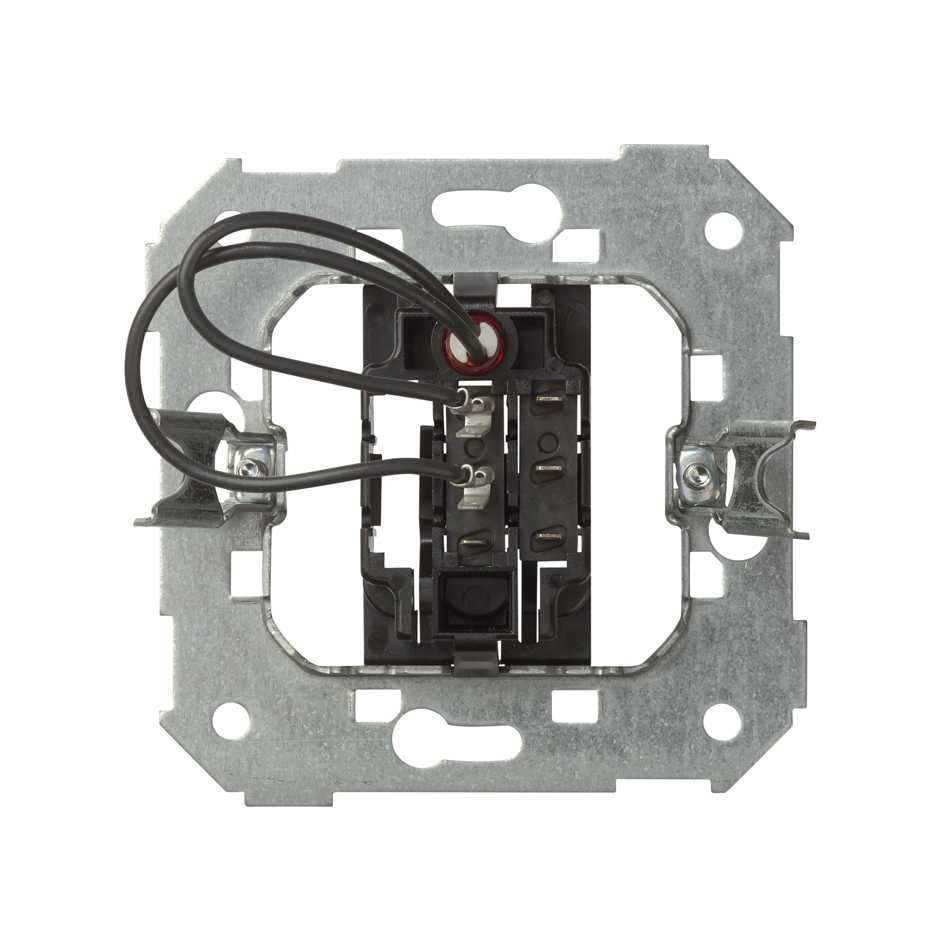

Вид с оборота

Вид с оборота

Внешний вид упаковки

Внешний вид упаковки

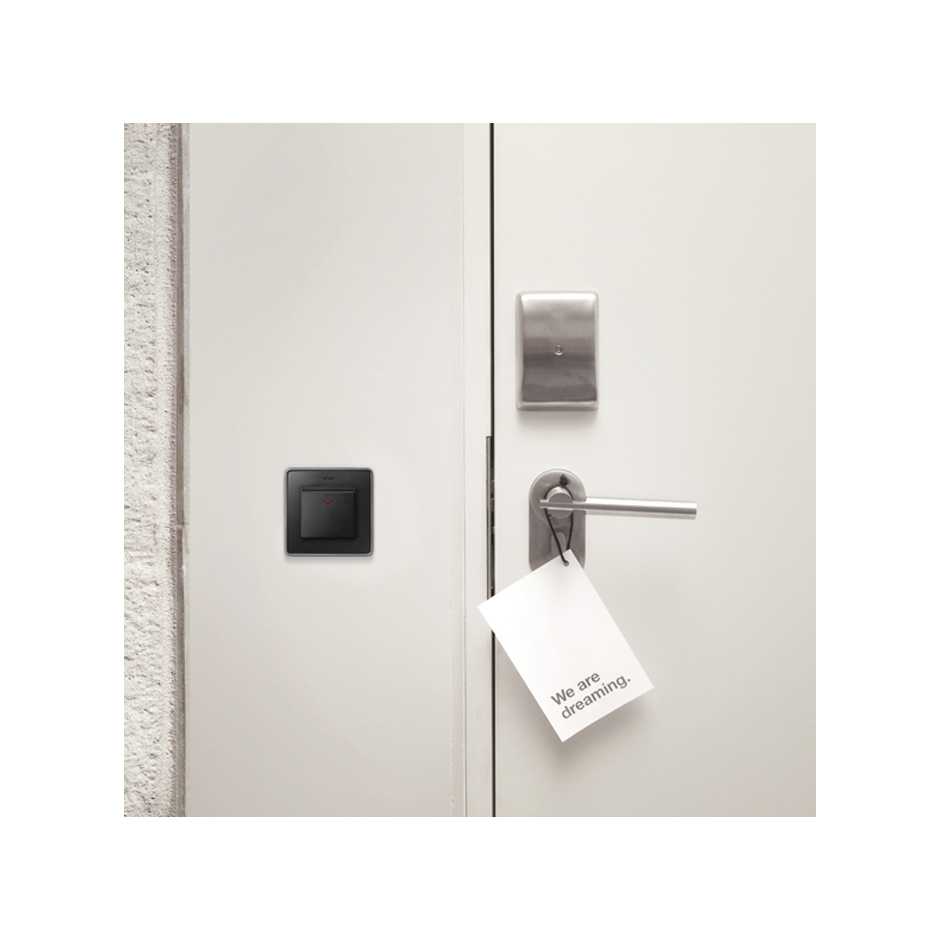

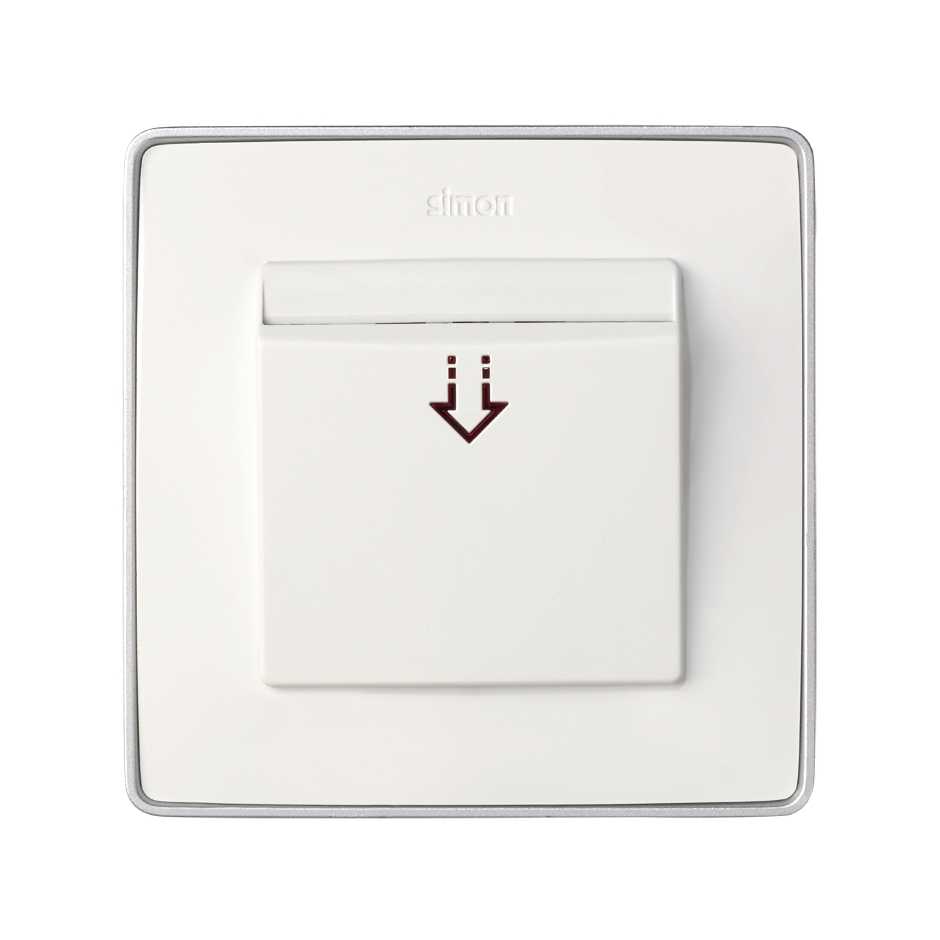

Пример установки

Пример установки

Ref
26526-39

2-way switch for card with 1 micro switch and light indicator 250V~

Price/Unit
Price on request
Discontinued
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 28
Series Compatibility

Simon 82

Simon 82 Detail

Simon 27 Neos

Simon 27

Simon 88

Simon 27 Play

Simon 82 Nature

Simon 28

Simon 82 linking design and maximum functionality in its range of 2-way switches for card with a design of stylish and simple lines, guarantees the major innovation and security.

This 2-way switch for card with indicator light, includes 1 microswitch and accepts power of 250 Volt voltage and an intensity of 6 Amps. Its installation, suitable for recessed or surface-mounted, you need to associating the article to a relay because, is not the case, the maximum current is 6 A (2 A inductive). To complete the installation requires welding, with a cross-cable section cross-section of 0.5 mm

It is made of metal materials with halogen-free thermoplastic isolated that prevent the flame spread and toxicity by smoke in case of fire. It can reach maximum temperatures of -25 and 75 ºC.

The collection of 2-way switches for card of Simon 82, maximize the functionalities minimising the space.

Basic information
  • Compatibility

    Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 44 Aqua, Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

  • Remarks

    A contactor must be installed at the output of the mechanism. If this is not done, the maximum current of the switch is 10 A resistive (1.5 A inductive). It is recommended to protect the faston connectors with a heat shrink sleeve.

  • Packaging contents

    Mechanism

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    0,5 mm

  • Frequency (Hz)

    50 Hz

  • Intensity (A)

    10 (1,5 ind.) A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Power supply (V~)

    250 V~

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Card

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Faston

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    3017190MMQ

  • Product net weight

    0.05KGM

  • Product gross weight

    0.05KGM

  • Product EAN

    8421053250082

  • Packaging quantity

    10

  • Packaging height

    82MMT

  • Packaging width

    165MMT

  • Packaging length

    223MMT

  • Packaging volume

    3017190MMQ

  • Packaging net weight

    0.5KGM

  • Packaging gross weight

    0.5KGM

  • Packaging EAN

    8421053024416
