Ref
26398-39

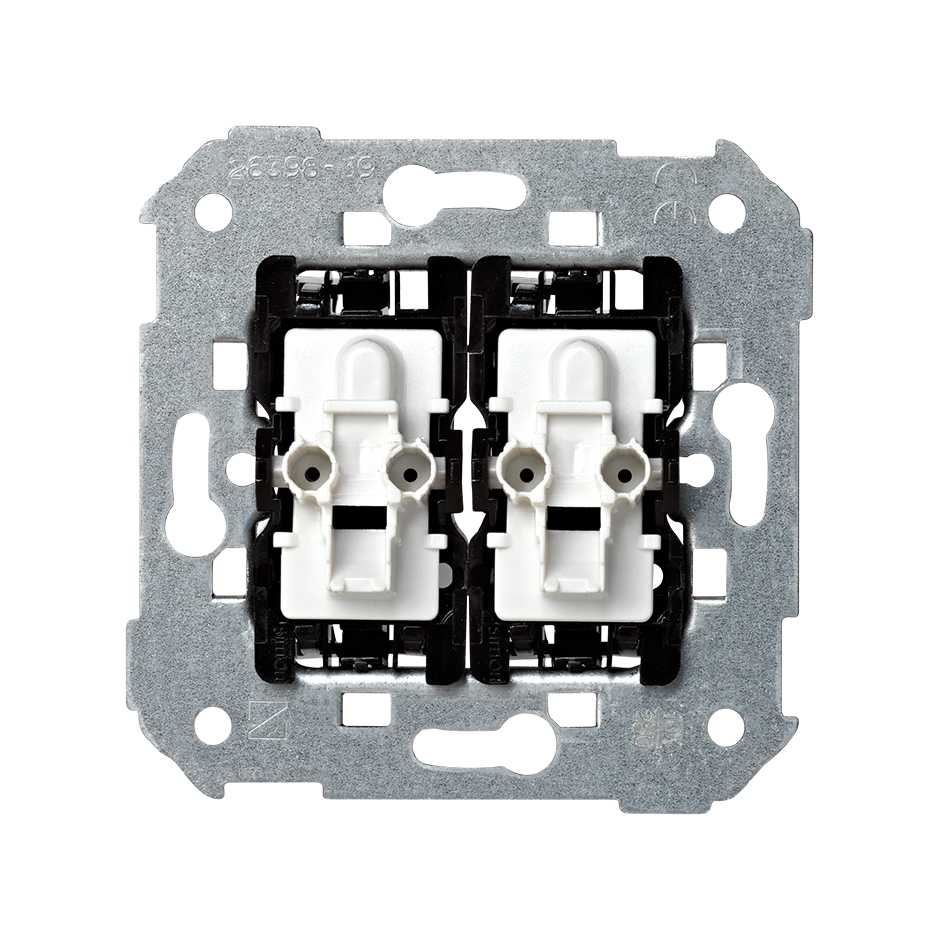

Set of 2 switches 10AX 250V~ with fast terminal connection system Simon 28

Price/Unit
€8.23
Packaging quantity
10 Units

Available downloads

Data sheet

26398-39.pdf

Outstanding Features
Series
Simon 28
Series Compatibility

Simon 28

Product Information

The control mechanisms of the brand Simon they offer great functionality, as well as enormously versatility for your installation and operating. This group of 2 switches 10 AX, 250V, it is part of the series Simon 28. Have a with quick terminal connection system and it has a rocker operation.

The control mechanisms Simon 28 support extreme temperatures. The temperature range that can withstand the switch Simon 28 varies between -20 to the + 50 degrees centigrade. This is due to the components that are made the switches of the brand, consisting of metal materials, isolated thermoplastically and halogen-free. This type of parts prevent the propagation of any fire and to minimize the toxicity in case of smoke. This means that the guarantees of security are very high.

This is the double version in a single element, you need to 15 millimetres stripping wire and supports a cable section variable (between 1.5 and 2.5 millimetres).

Basic information
  • Compatibility

    Simon 28 frames

  • Packaging contents

    Mechanism

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Double

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.062 KGM

  • Product gross weight

    0.062 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.62 KGM

  • Packaging gross weight

    0.62 KGM

  • Packaging EAN

    8421053015407
