Ref
26251-39

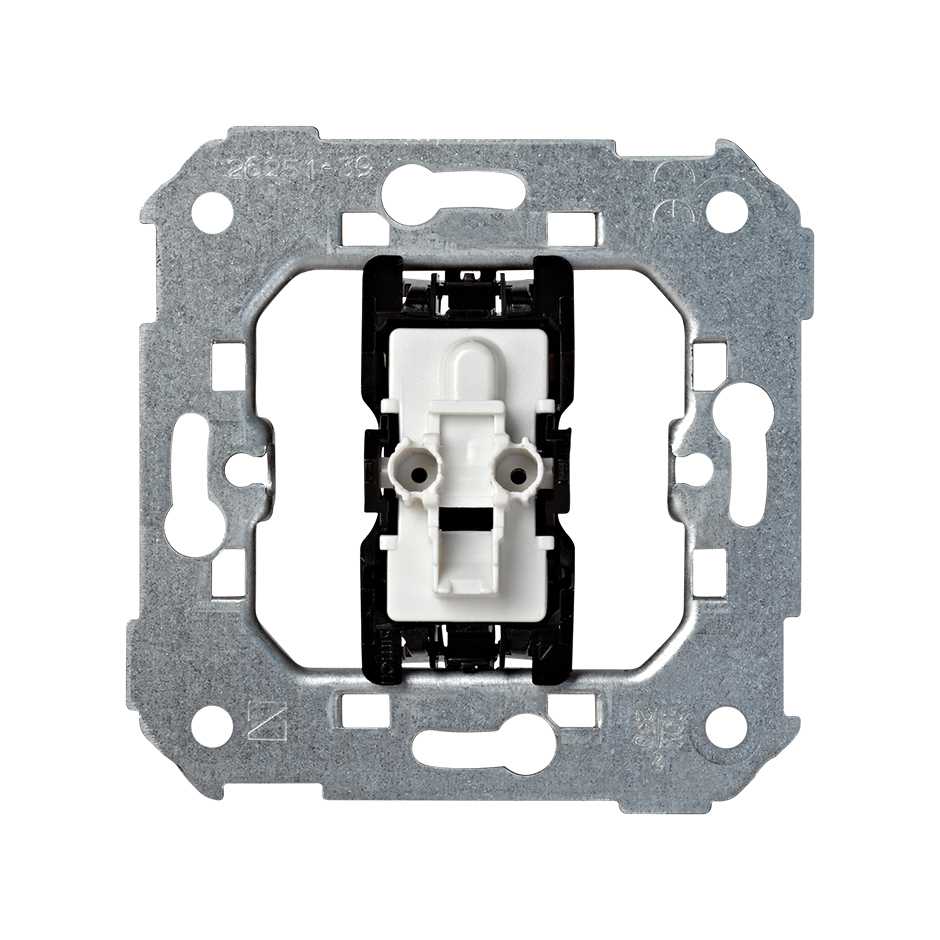

Intermediate switch 10AX 250V~ with fast terminal connection system Simon 28

Price/Unit
€10.08
Packaging quantity
10 Units

Available downloads

Data sheet

26251-39.pdf

Outstanding Features
Series
Simon 28
Series Compatibility

Simon 28

Product Information

Simon always has been due to find solutions for all types of problems. New functionalities to meet to the whole world. And also new designs.

The series Simon 28 with simple designs, rms for installing whatever the ambience you want to create, in addition to bringing a touch of modern and stylish thanks to the design of curved lines of the frames.

On this occasion, we present you this crossover switch that resists elements up to 16 Ampere current and 250 volts. It has quick terminal connection system. This product is manufactured in various metal components with halogen-free halogen-free thermoplastic. Without the risk for the health and the maximum durability.

This is its individual version, with just one element. The wire section admitted is from 1.5 to 2.5 millimetres.

There is the option of incorporating the signal function by means of a signaling support and rocker with viewer.

Basic information
  • Compatibility

    Simon 28 frames

  • Remarks

    Possibility of implementing signalling function using cradle blinking and rocker with viewer.

  • Packaging contents

    Mechanism and instructions

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.056 KGM

  • Product gross weight

    0.056 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.56 KGM

  • Packaging gross weight

    0.555 KGM

  • Packaging EAN

    8421053015360
