Ref
26101-39

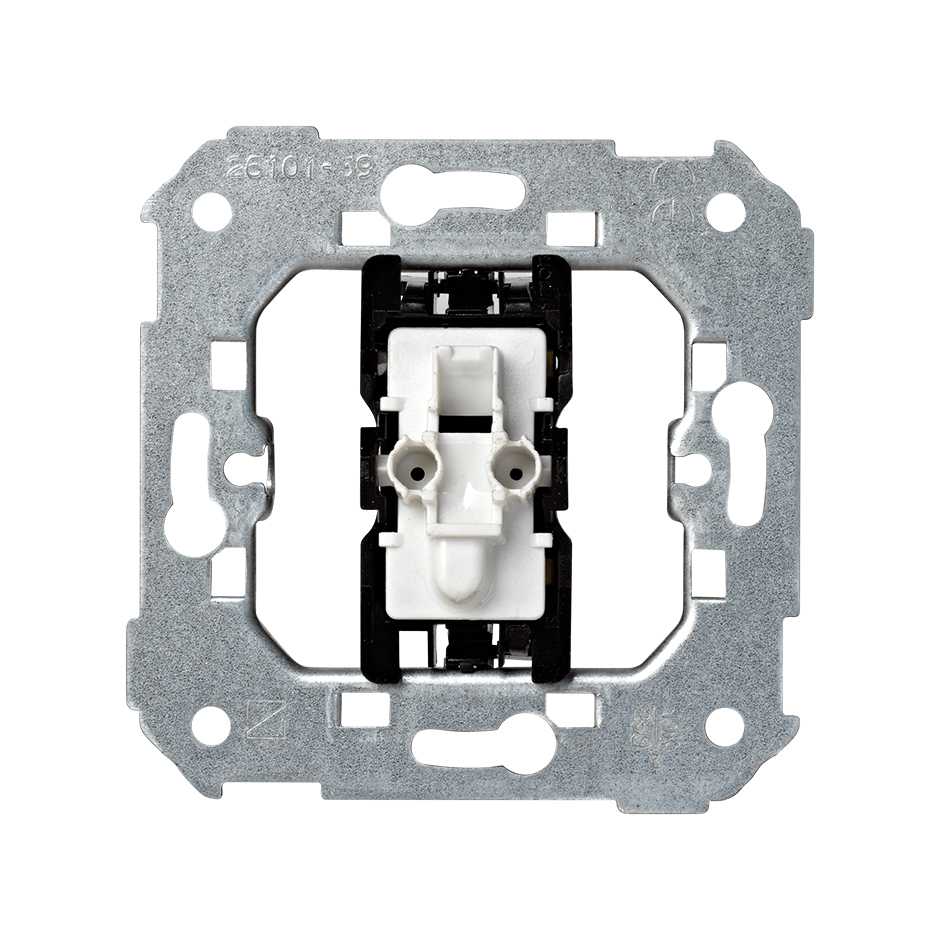

Single-pole switch 10AX 250V~ with fast terminal connection system Simon 28

Price/Unit
€3.43
Packaging quantity
10 Units

Available downloads

Data sheet

26101-39.pdf

Outstanding Features
Series
Simon 28
Series Compatibility

Simon 28

Product Information

With the single-pole switch of the collection, Simon 28, you will obtain a few finishes with personality and originality thanks to its curved lines that are combined with the maximum functionality and technological innovation. With quick terminal connection without the need to use additional tools, it is integrated into all types of decorative spaces and environments. Compatible with a power of 250 Volt voltage and 10 AX of intensity, supports a wire cross-section of 1.5 to 2.5 mm and stripping of wire 15 mm, it also, Simon 28 gives the option of implementing signaling function via cradle blinking and rocker with viewer. Made of metal materials with halogen-free thermoplastic isolated, it protects the room of the flame spread and toxicity by smoke in case of fire, and allows to set reach a temperature range of 5 to 40 ° C and maximum temperatures of -25 to 50 ºC.

Basic information
  • Compatibility

    Simon 28 frames

  • Remarks

    Possibility of implementing signalling function using cradle blinking and rocker with viewer.

  • Packaging contents

    Mechanism and instructions

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Intensity (A)

    10 AX

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.051 KGM

  • Product gross weight

    0.051 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.51 KGM

  • Packaging gross weight

    0.505 KGM

  • Packaging EAN

    8421053015261
