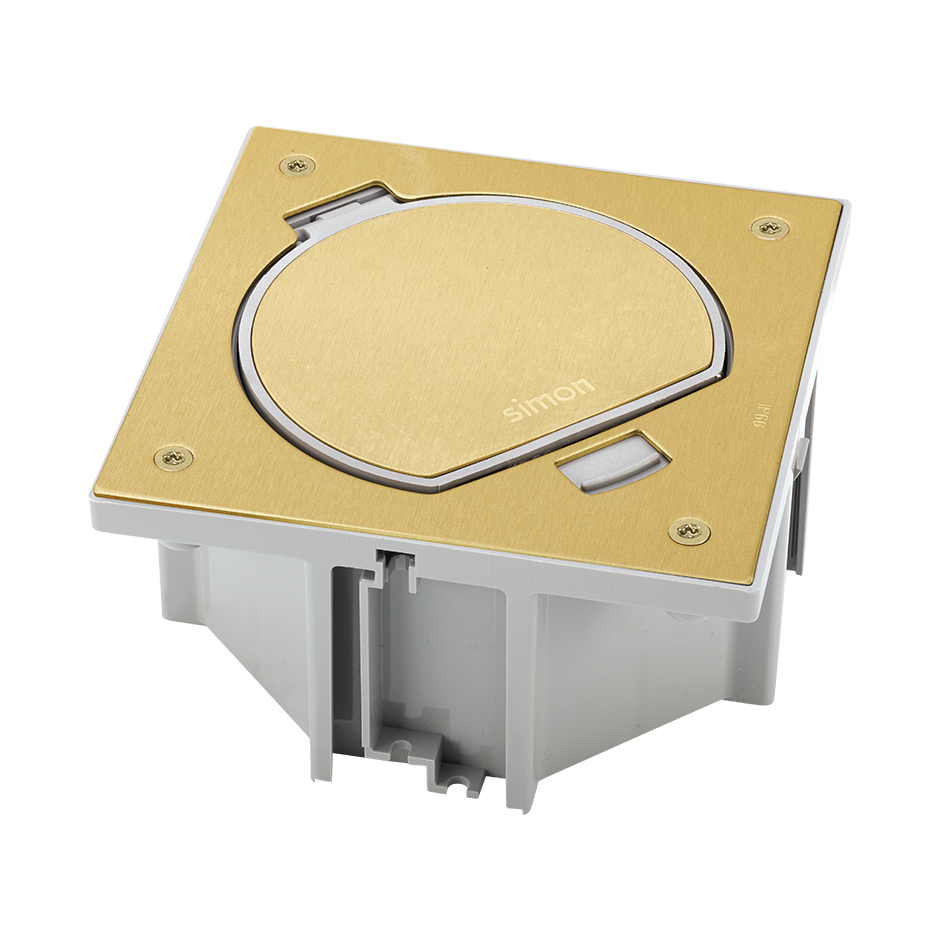

Mechanism-holder unit IP66 with manual lock and Italian socket P40 socket outlet brass Simon K45

This mechanism-holder unit unit has a manual closure and incorporates a Italian P40 socket-outlet with dimensions of 130 x 130 x, 55 mm, made of metal materials of high quality and brass finish presents a single version for one element with capacity for 2 modules. You can be integrated into any type of raised or concrete floor combining the mechanism-holders unit with the tray in accordance with the type of installation (ref. KGE170 for concrete floor, and ref. KGE170TF for raised floor). The socket for standard current circuit with 16 A current and 250V ~ voltage is by screw, signaling function of insertion and the snap-fit is of type Keystone I and II. The wire cross-section understood between 1.5 mm and 2.5 mm and stripping of wire of 12mm. The cover has anchor points to protect the connections during use against pressures and stresses produced by the passage of personnel. The baseboard is manufactured in self-extinguishing thermoplastic providing a great security against the fire, propagation of the same and guarantees the no-propagation of fumes toxic.
