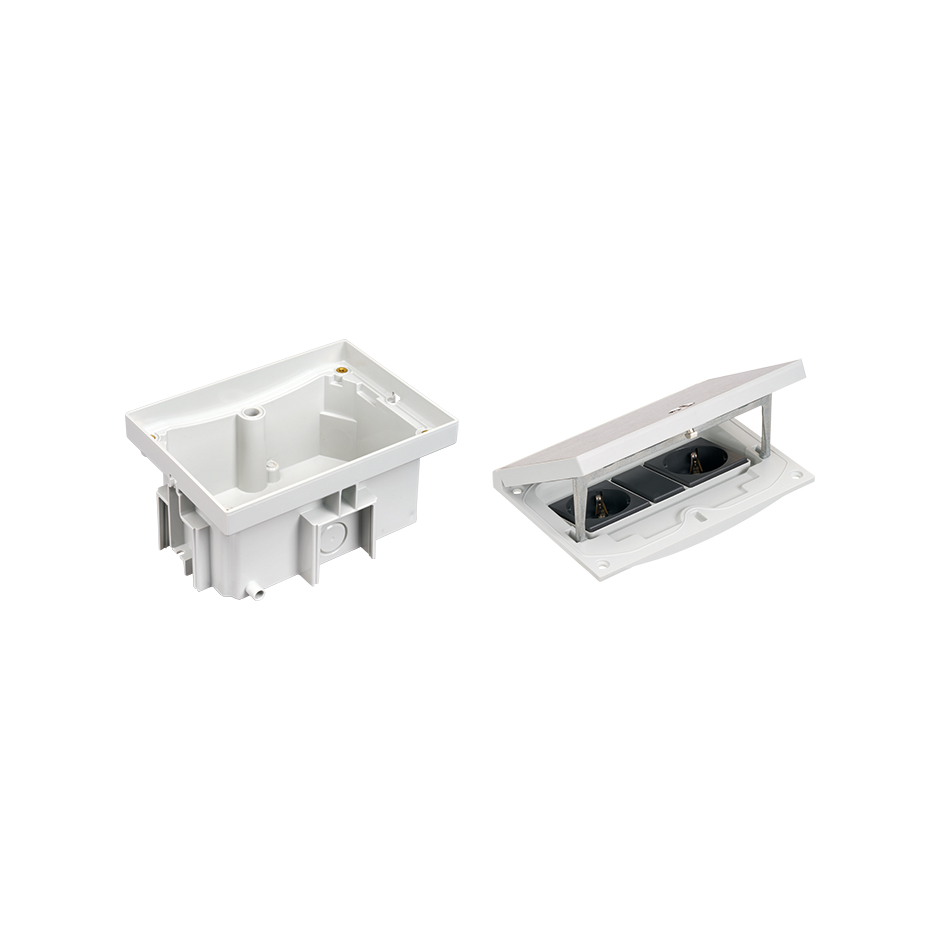

IP66 watertight concrete floor box kit with 2 schuko socket outlets + 1 narrow blind cover and sheath

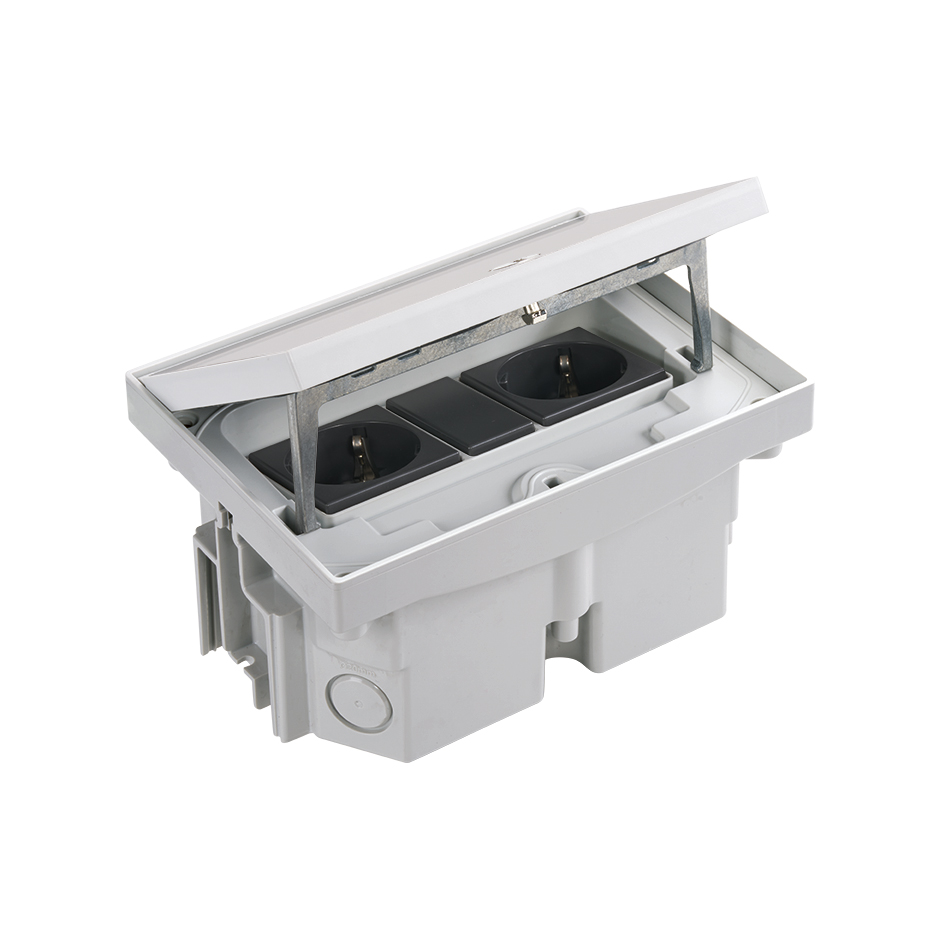

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a kit that includes the manual closing mechanism frame with 2 Schuko sockets and 1 blank K45 plate of 22.5x45mm, designed to be integrated into the included tub for installation in flooring. We have an IP66 trimless box measuring 163 x 115 mm, ensuring it will be perfectly integrated into our floor. The product design, combined with its stainless steel mechanism frame, enables a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, achieving an IP66 protection level while the lid is closed. It also supports a maximum load of 1500 kg and has an IK08 impact resistance. It maintains an optimal cable bend radius for high-category voice and data connections. Our accessory for socket connection with a closed lid is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of an uneven slab (see reference KFA1003), or the capability to chain more than one box together (see reference KFA1002).
