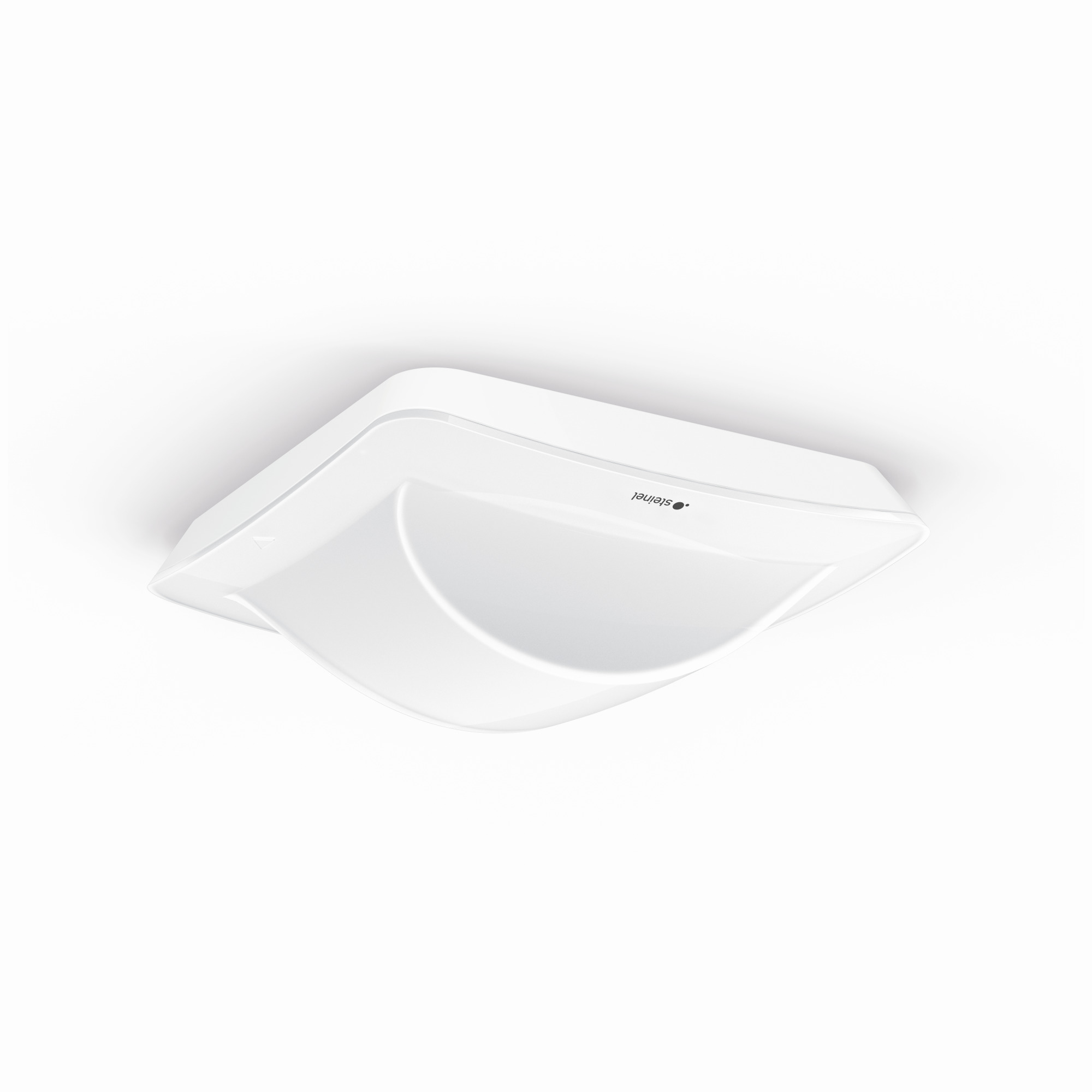

PD-25x3 Hallway HF+LUX BT Mesh recessed KNX white IP20

<p>Flush-mounted presence and light detector HF. The recommended installation height is 2.8 m, with a maximum height of 4 m. It has a detection angle of 360º and an opening angle of 140º. The tangential detection range is 25 x 3 m and the radial detection range is 25 x 3 m. <br>The brightness regulation range is 10 - 1000 lux and the timing range is 10 s - 1092 min. The configuration of the detector is done through a Bluetooth and KNX application. <br>It has a TEACH operating mode. Possibility of interconnection between sensors through KNX. The control protocol is KNX. The typical consumption is 30 mA. <br>The power supply voltage is KNX (21 - 30 VDC). The operating temperature of the detector is: -20 - 50 ºC. <br>White finish, protection rating IP 20, and dimensions: 103 x 103 x 105 mm. <br>5-year warranty.<br><br>For more product information, visit STEINEL website by clicking <a class="custom-link" href="https://www.steinel.de/p/079475">here</a><p>
