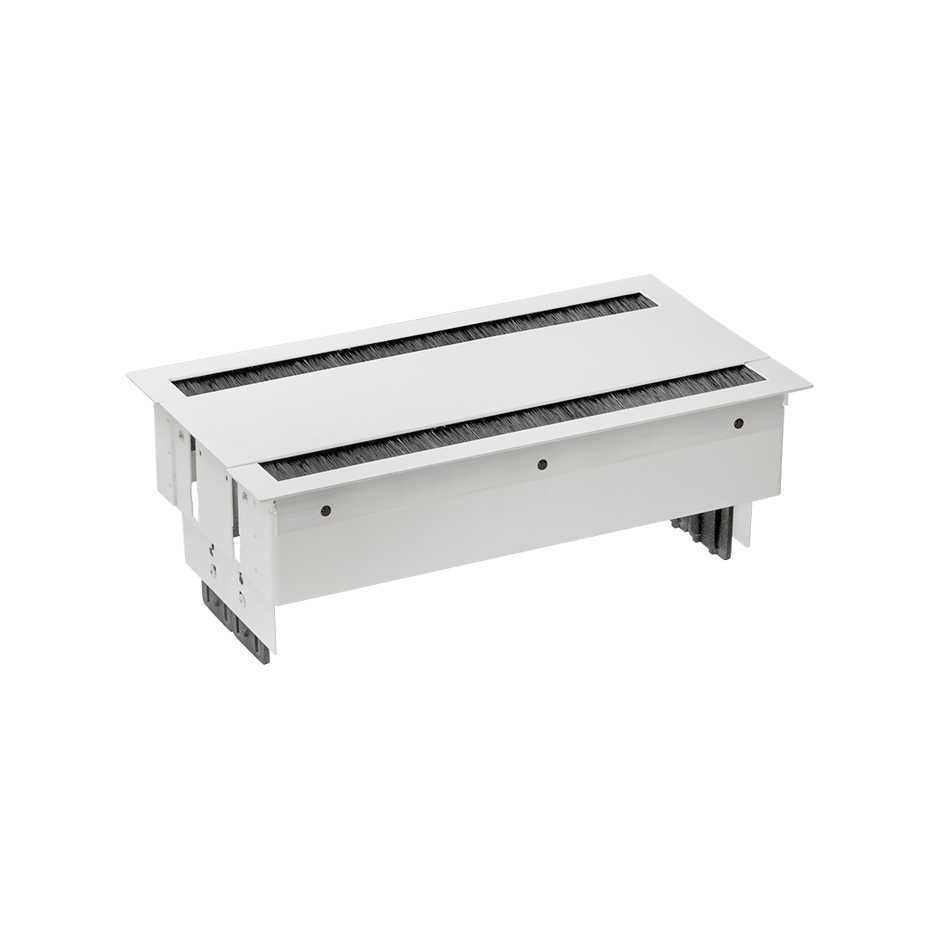

Customisable kit with dual opening cover and brushes, 4 schuko socket outlets and 8 empty elements white S400 Indesk Duo

Oblique view Customisable flush-mounted in the desk kit with cover and brush, 2xUSB charger, 3 German socket outlets and 1 empty element white Simon 400

Customisable kit with dual opening cover and brushes, 4 schuko socket outlets and 8 empty elements white S400 Indesk Duo

REF:
46602000-130
RRP/unit
Upon request
PACKAGING:
1 Unit

Series

Simon 400

Compatible series

Simon 400

Finishes

Selected: White

Information

Documentation

Product information

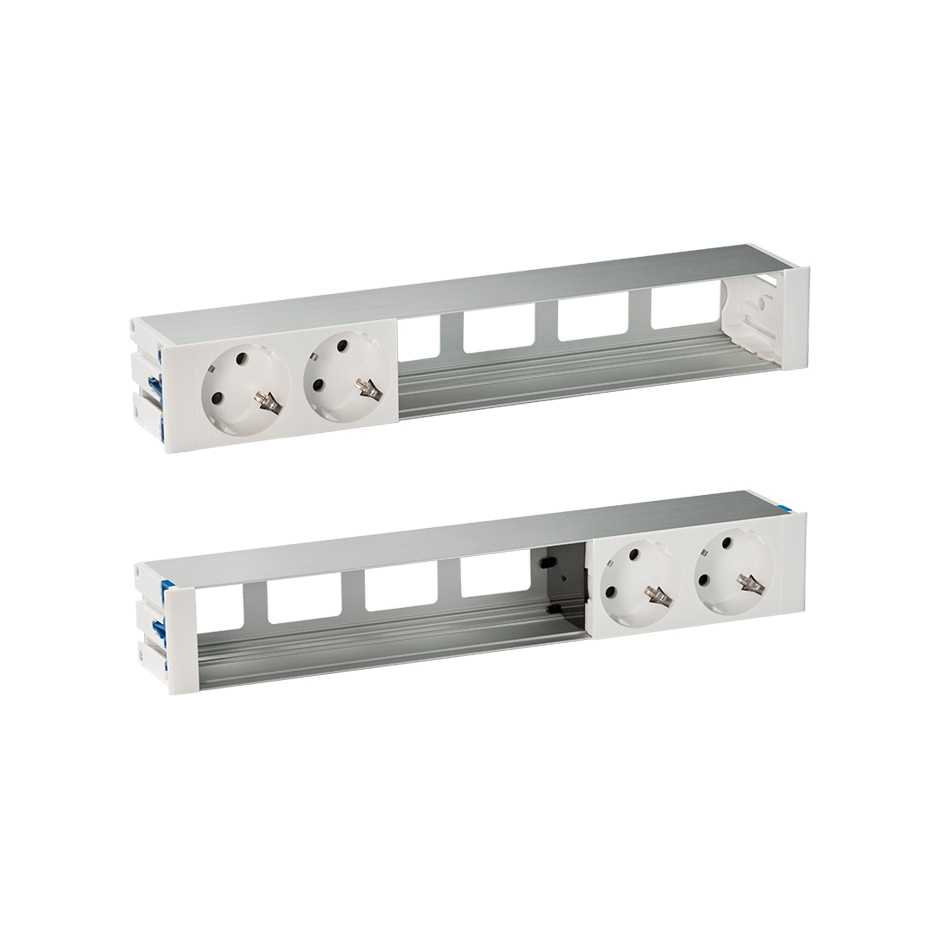

The resistance and durability over time in the electrical systems of homes and companies is possible thanks to the kit within the table customizable with cover with two opening and brushes empty colour and 8 elements in white of the Simon series 400. This device has 4 SCHUKOS sockets for standard current circuit, as well as a structure designed with enclosure painted steel, profile in anodised aluminium, covers and fastenings in self-extinguishing thermoplastic and halogen-free very safe is fires. Dielectric strength with no holes or contours with 2000 V at 50H during a minute, insulation resistance > 5 M? at 500 V and connector figure Wieland ® gst18i with 3 poles male in-line with patch cord of 22 cm are other qualities of this kit, which has a current of 16 A and a voltage of 250 V ~. Suitable to be flush mounted, Simon recommend combining with the functions of the range 400 to complete the installation of the product.
