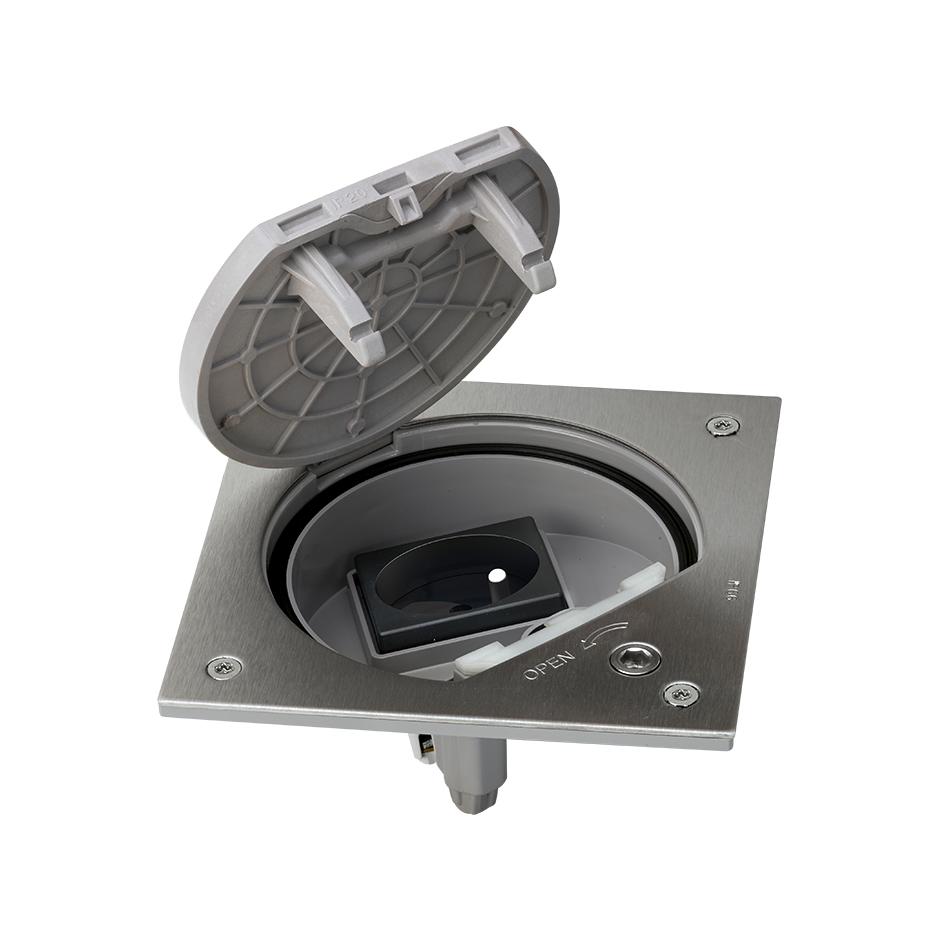

Mechanism-holder unit IP66 with safety lock and French socket outlet stainless steel Simon K45

Unit mechanism-holders unit with safety lock, white in colour and with a French socket outlet of type from the Simon K45 range. It has two modules and a power of 16 A and a voltage of 250V and works by screw. In addition, it has a cover with which makes it is anchor points that protect the connections during use against pressures and stresses due to the passage of personnel. It measures 130 x 130 x 55 mm and supports a cable section of 1.5 to 2.5 mm and stripping of 12 mm It has been designed in accordance with the UNE-EN 60.670-23 and is made of AISI 304 stainless steel on self-extinguishing thermoplastic baseboard and halogen-free, which makes it is to ensure no flame spread in case of fire, in case of fire, and low toxicity if producing smoke. It can be installed in any type of floor, be it a raised or a concrete floor, combining the mechanism-holders unit with the tray in accordance with the type of installation. With the range update, its equivalent for the new version is the KFH120SEC/72 reference.
