IP66 Mechanism holder and security frame with italian P40 socket and RJ45 6 UTP

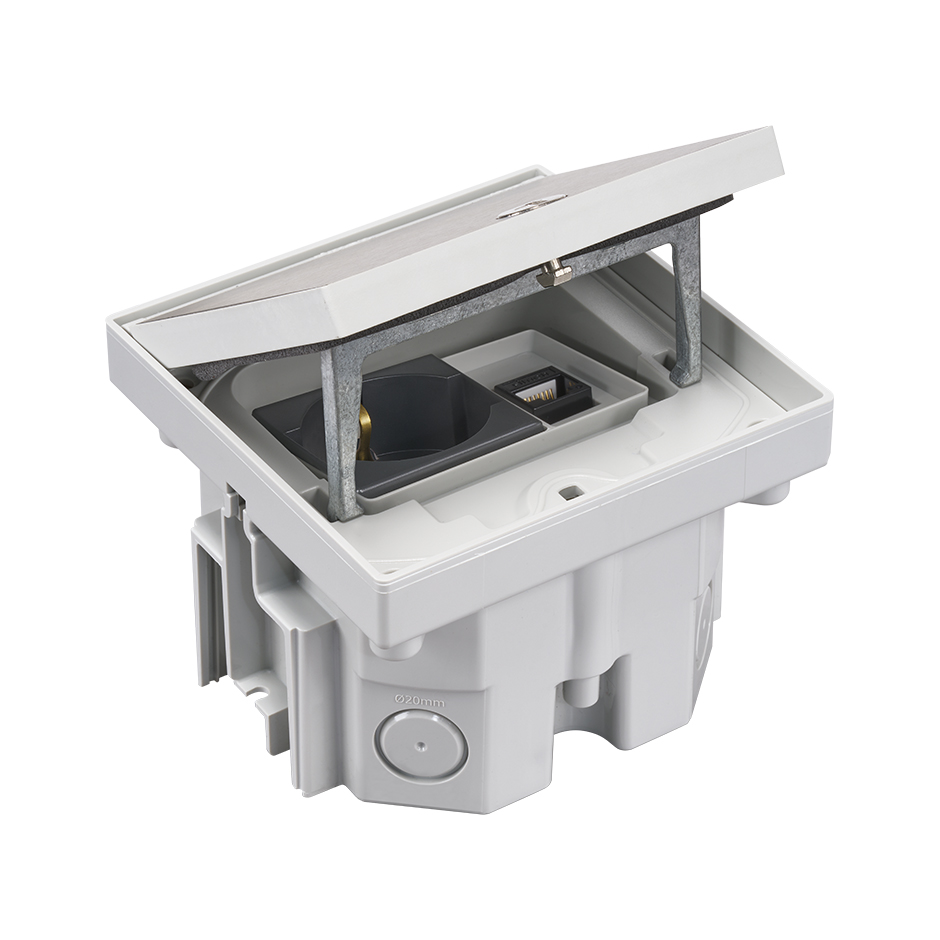

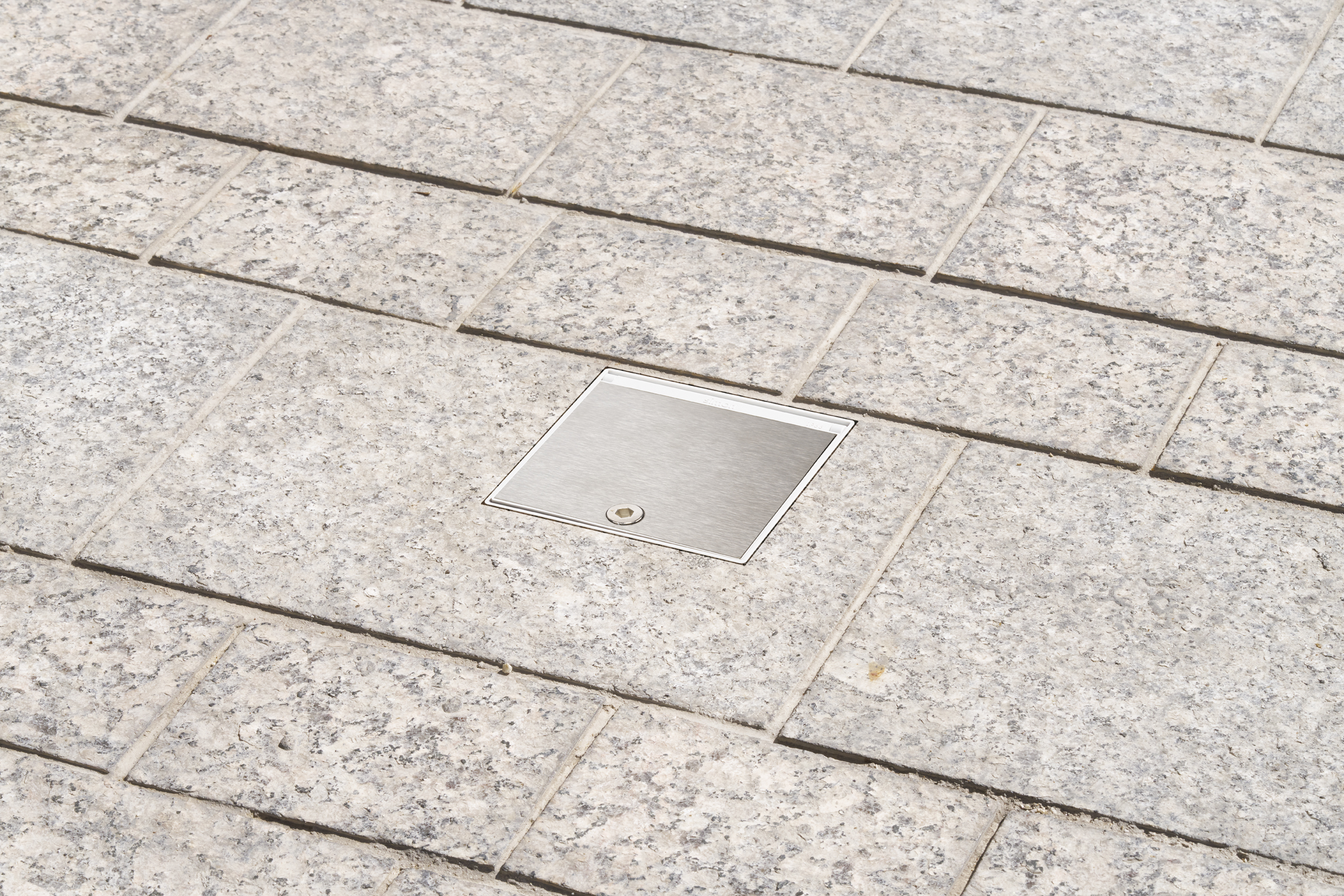

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a mechanism support frame with a security lock for environments that require restricted access, featuring an Italian P40 electrical base and RJ45 Category 6 UTP connector. In combination with its tray, it allows installation in technical flooring or pavement. The product design, combined with its construction in stainless steel, achieves a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, reaching an IP66 protection rating with the lid closed. It also supports a maximum load of 1500 kg and an IK08 impact resistance. It maintains an optimal bending radius for cabling in high-category voice and data connections. Our accessory for plug connection with a closed cap is available to keep our connections active with an IP54 rating (see reference KFA1001), the possibility to level our box in case of having an irregular slab (see reference KFA1003), or the ability to link multiple boxes together (see reference KFA1002).
