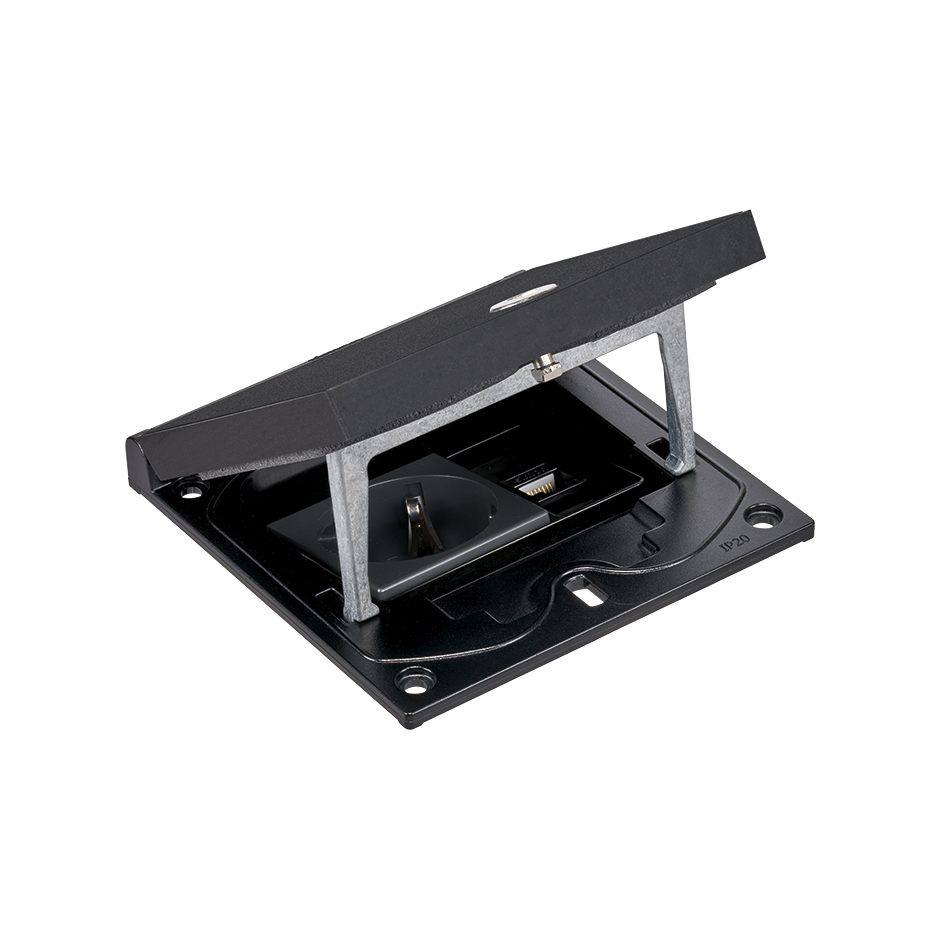

IP66 Mechanism holder and security frame with schuko and RJ45 6 UTP

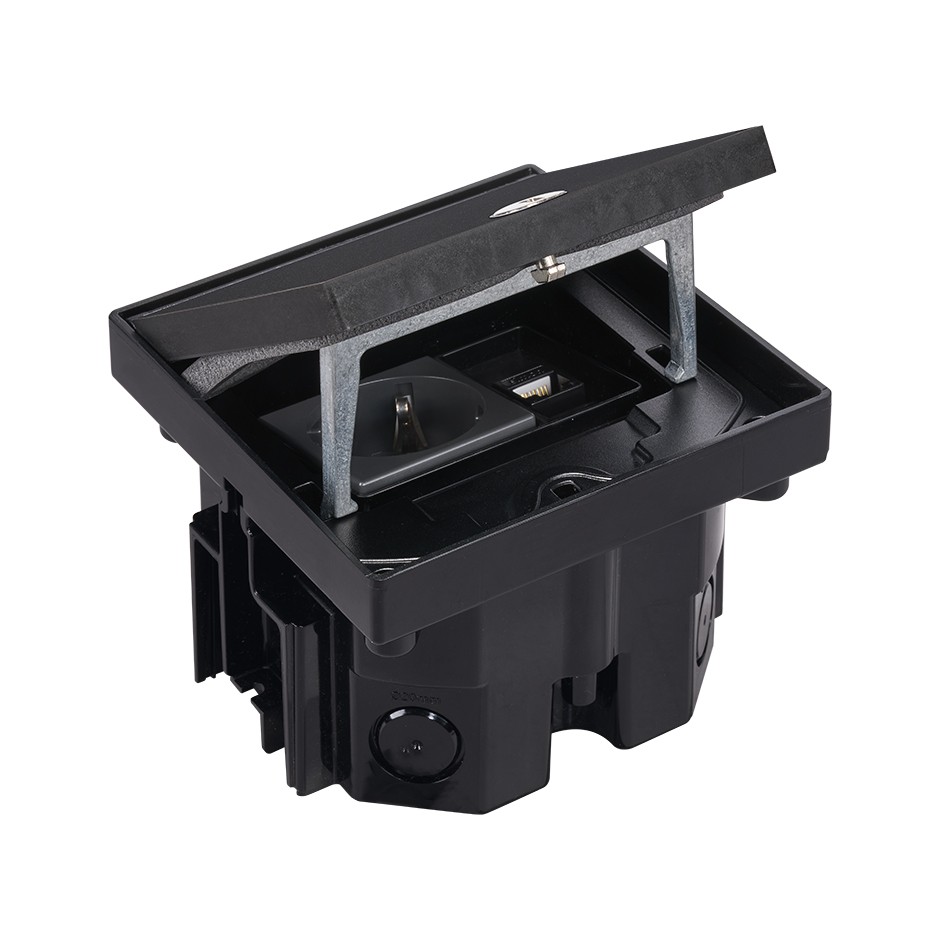

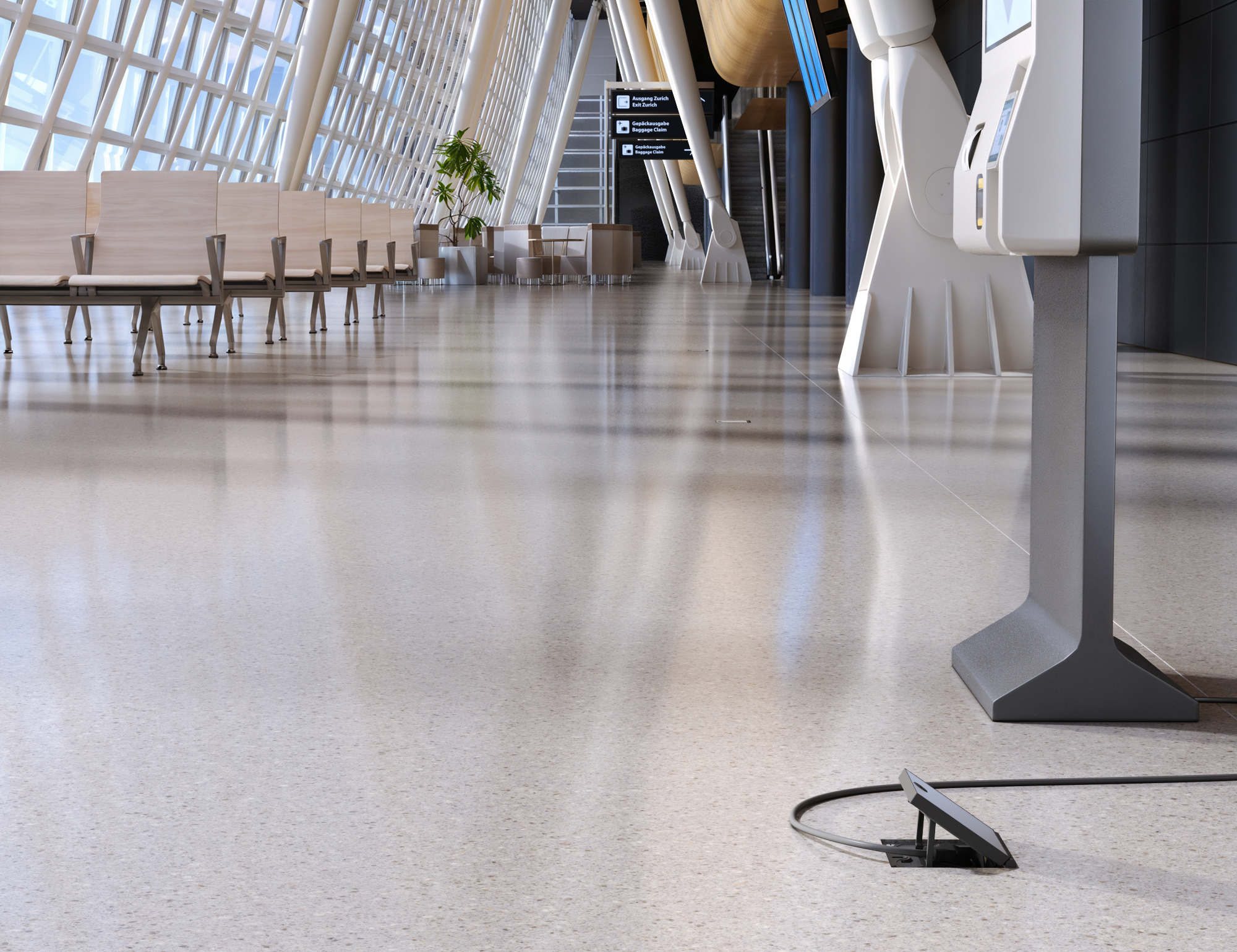

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a mechanism housing with a security lock for environments that require restricted access, featuring a Schuko outlet and a category 6 UTP RJ45 connector. In combination with its tray, it will allow installation in raised floors or pavements. The product design, combined with its stainless steel manufacture, achieves a robust, solid, and secure installation as it can withstand a water jet of 1 kg/cm² from any direction, reaching an IP66 protection rating when the lid is closed. It also supports a maximum load of 1500 kg and has an IK08 impact resistance. It maintains an optimal cable bend radius for high-category voice and data connections. Available is our accessory for plug connection with the lid closed, allowing us to keep our connections active with an IP54 (see reference KFA1001), the ability to level our box in case of an irregular floor (see reference KFA1003), or the capability to link multiple boxes together (see reference KFA1002).
