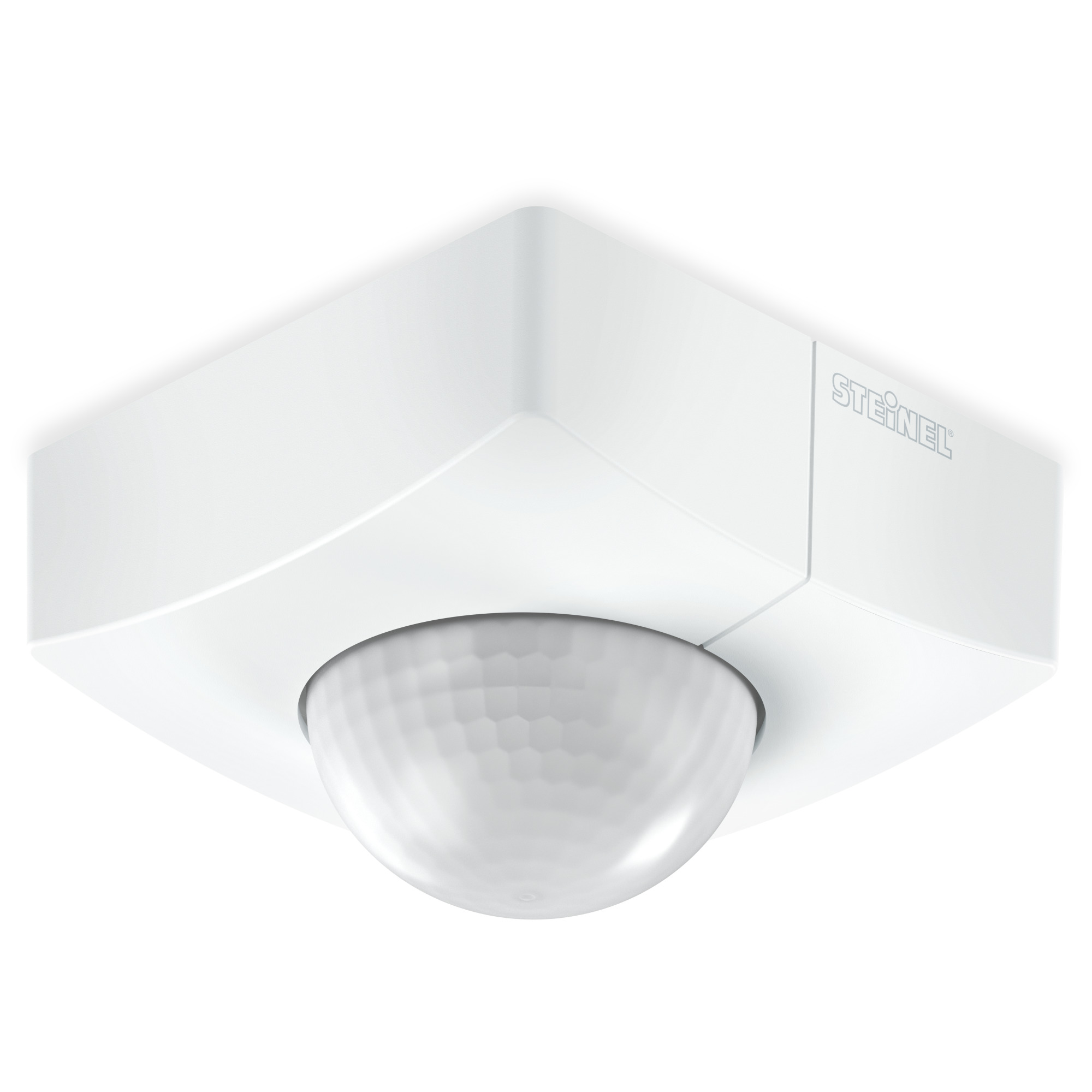

PD-40 Large Areas PIR+LUX surface KNX squared white IP54

<p>Surface presence and brightness detector PIR. The recommended installation height is 2.8 m, with a maximum height of 4 m. It has a detection angle of 360º and an opening angle of 180º. The tangential detection range is 40 m and the radial detection range is 8 m. <br>The brightness regulation range is 2 - 1000 lux and the timing range is 1 min - 255 min. The detector configuration is done through potentiometers and KNX. <br>It has a TEACH operating mode. Possibility of interconnection between sensors via KNX. The control protocol is KNX. The typical consumption is 12.5 mA. <br>The power supply voltage is KNX (21 - 30 VDC). The operating temperature of the detector is: -20 - 50 ºC. <br>White finish, IP 54 protection rating, and dimensions: 95 x 95 x 65 mm. <br>5-year warranty.<br><br>For more product information, visit STEINEL website by clicking <a class="custom-link" href="https://www.steinel.de/p/058166">here</a><p>
