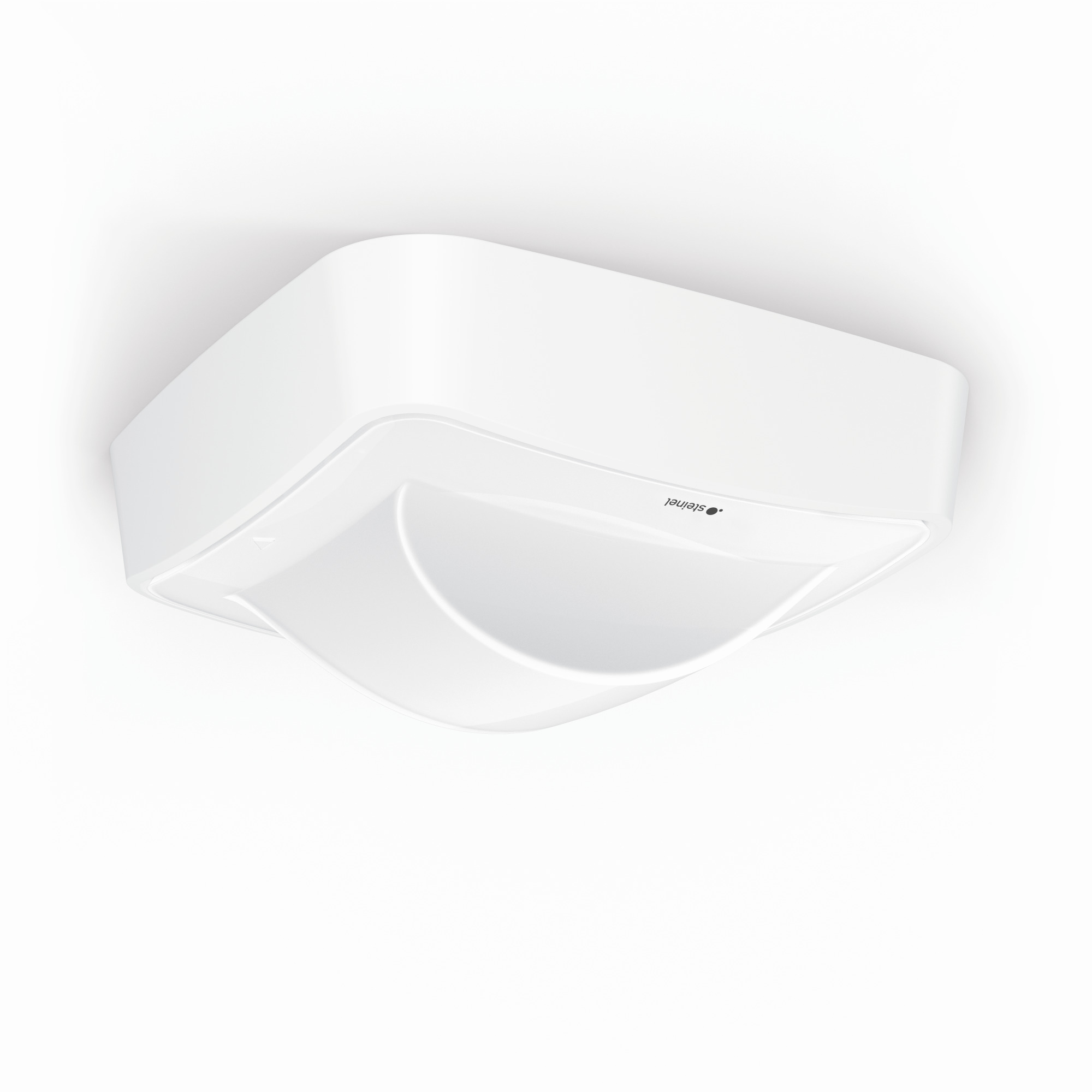

PD-25x3 Hallway HF+LUX BT Mesh surface KNX white IP20

Presence and ambient light detector for surface mounting HF. The recommended installation height is 2.8 m, with a maximum height of 4 m. It has a detection angle of 360 º and an opening angle of 140 º. The tangential detection range is 25 x 3 m and the radial detection range is 25 x 3 m.
The luminosity regulation range is 10 - 1000 lux and the timing range is 10 s - 1092 min. The detector configuration is done via Bluetooth application and KNX.
It features a TEACH operating mode. Possibility of interconnection between sensors via KNX. The control protocol is KNX. The typical consumption is 30 mA.
The power supply voltage is KNX (21 - 30 VDC). The operating temperature of the detector is: -20 - 50 ºC.
White finish, IP 20 protection rating, and dimensions: 123 x 123 x 62 mm.
5-year warranty.
