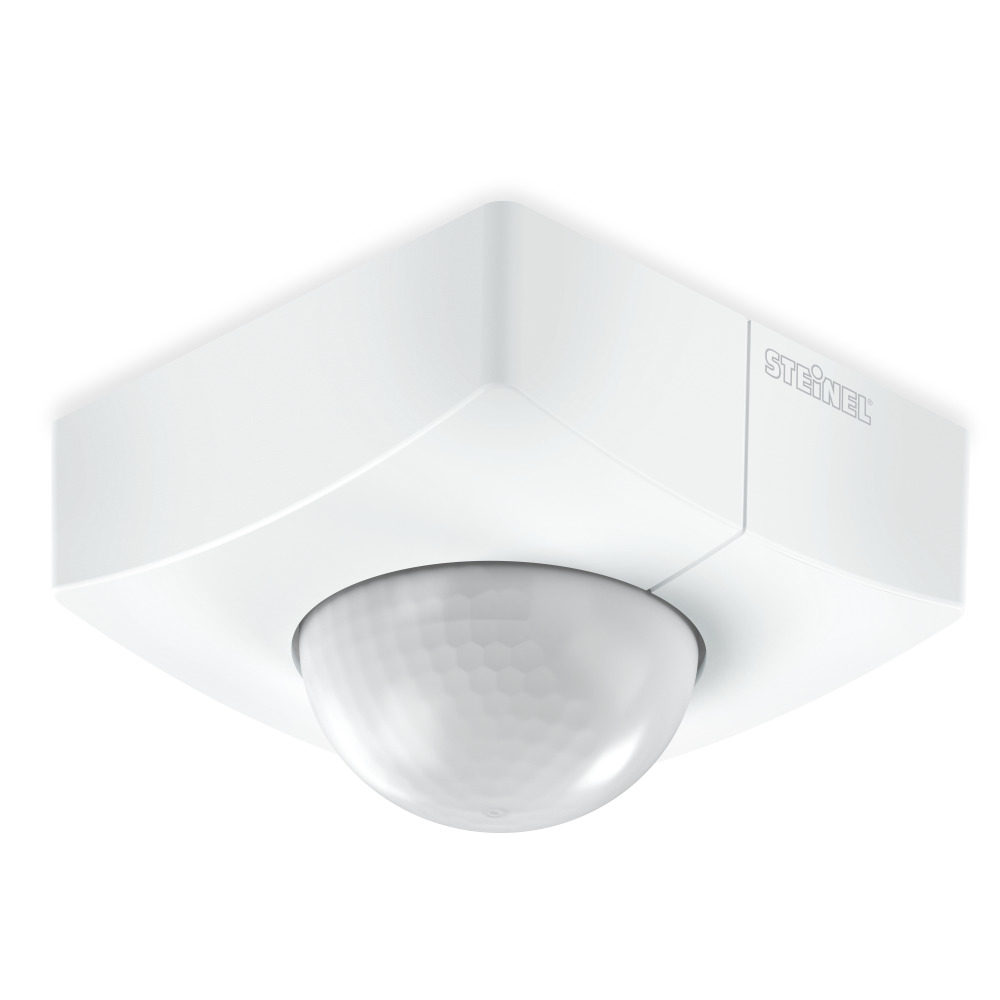

MD-23x6 Hallway PIR+LUX surface DALI-2 Input squared white IP54

<p>Surface PIR motion and light detector. The recommended installation height is 2.8 m, with a maximum height of 5 m. It has a detection angle of 360º and an opening angle of 45º. The tangential detection range is 23 x 6 m and the radial detection range is 12 x 6 m.<br>The light regulation range is 2 - 1000 lux. The configuration of the detector is performed via DALI.<br>Possibility of interconnection between sensors through DALI. The control protocol is DALI-2 Input. The typical consumption is 5 mA.<br>The power supply voltage is DALI (12 - 20.5 VDC). The operating temperature of the detector is: -20 - 50 ºC.<br>White finish, protection grade IP 54 and dimensions: 95 x 95 x 65 mm.<br>5-year warranty<br><br>For more product information, visit STEINEL website by clicking <a class="custom-link" href="https://www.steinel.de/p/057275">here</a>
